图形点阵模块

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

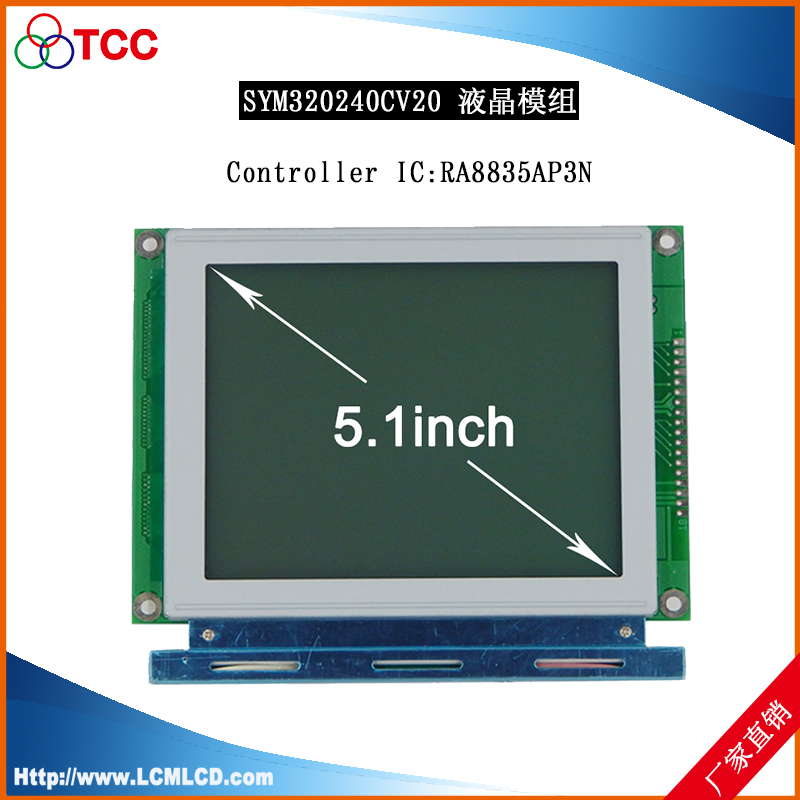

SYM320240CV20  320240 139.0*114.8*13.0 103.0*79.0 0.27*0.27 5V CCFL S1D13305/RA8835 图片

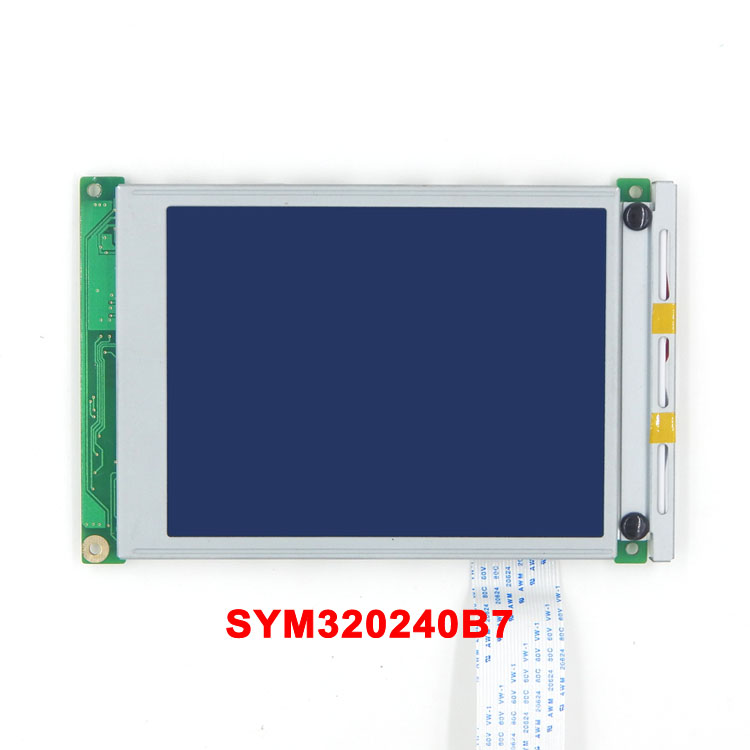

SYM320240B7V351  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+TSD2046 图片
SYM320240B7V62  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+ADS7843 图片

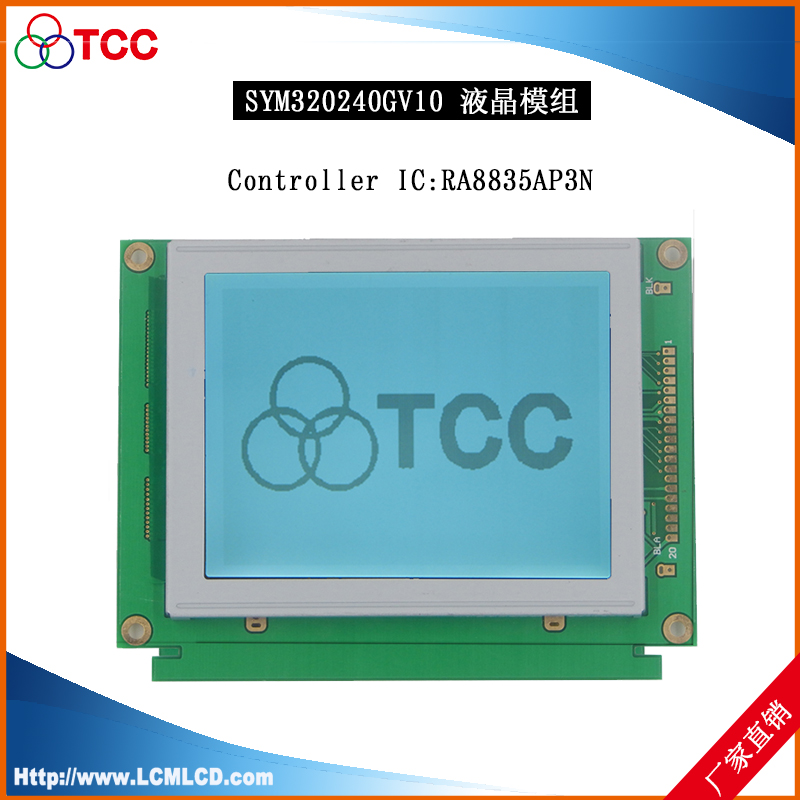

SYM320240GV10  320x240 148.0*114.5*13.0 103.0*79.0 0.27*0.27 5Vor3.3V LED RA8835 图片
SYT320240FV10  320240 94.0*66.6*8.5 78.8*59.6 0.23*0.23 5V LED RA8835 图片
SYT320240EV11  320240 96.5*83.5*9.5 80.5*61.1 0.23*0.23 5V LED RA8835 图片
SYM320240D3V10  320240 148.0*120.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL S1D13700 图片
SYM320240DV21  320240 148.0*120.0*11.0 120.0*92.0 0.34*0.34 5V LED RA8835P3N 图片
SYM320240C1V11  320240 139.0*100.0*13.0 103.0*79.0 0.27*0.27 5Vor3.3V LED/CCFL RA8835 图片

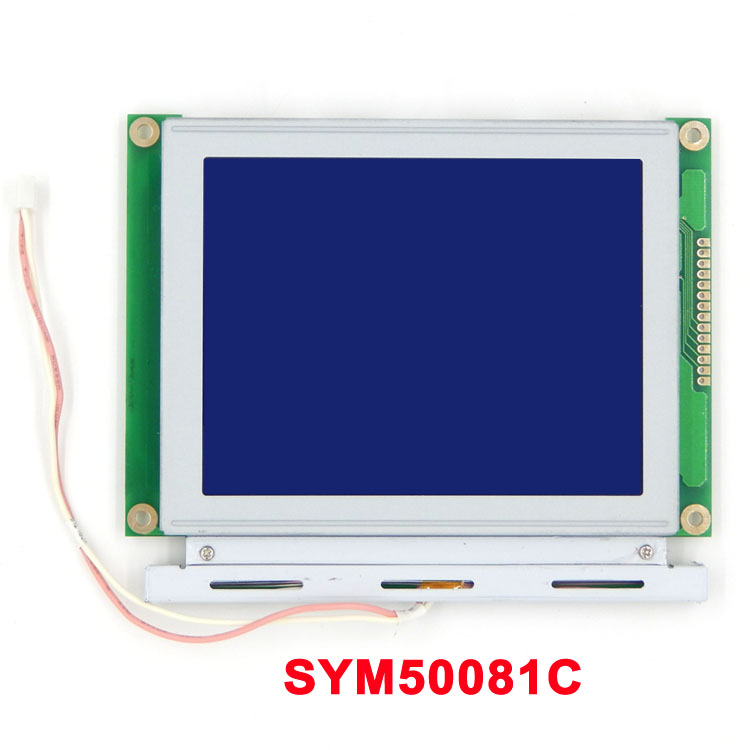

SYM50081CV10  320240 139.0*114.8*13.0 103.0*79.0 0.27*0.27 5V LED/CCFL NC 图片
SYT32019TV16  320240 165.6*109.0*7.5 121.0*91.7 0.33*0.33 5Vor3.3V LED/CCFL NC 图片

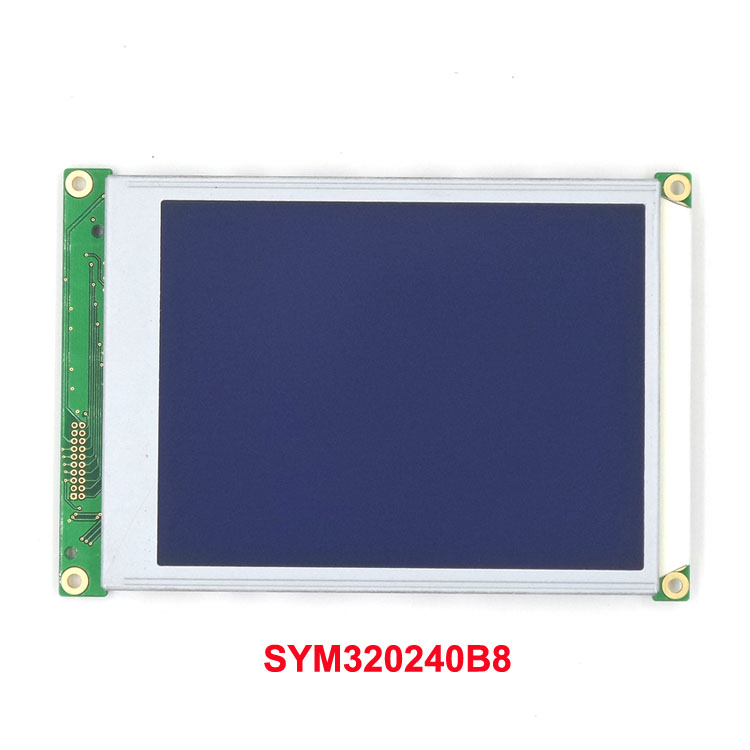

SYM320240B8V50  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835 图片
SYM320240B8V40  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835 图片
SYM320240B8V32  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835 图片

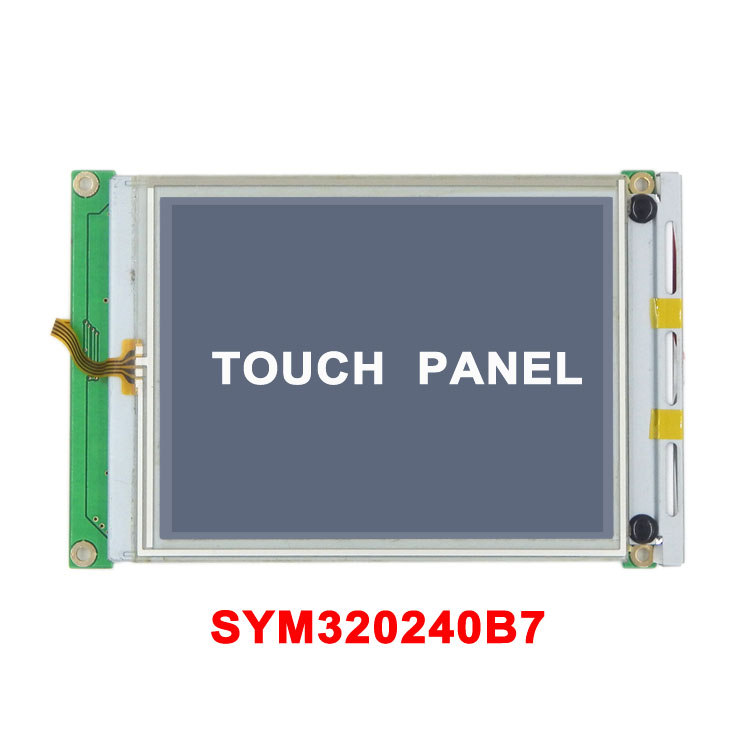

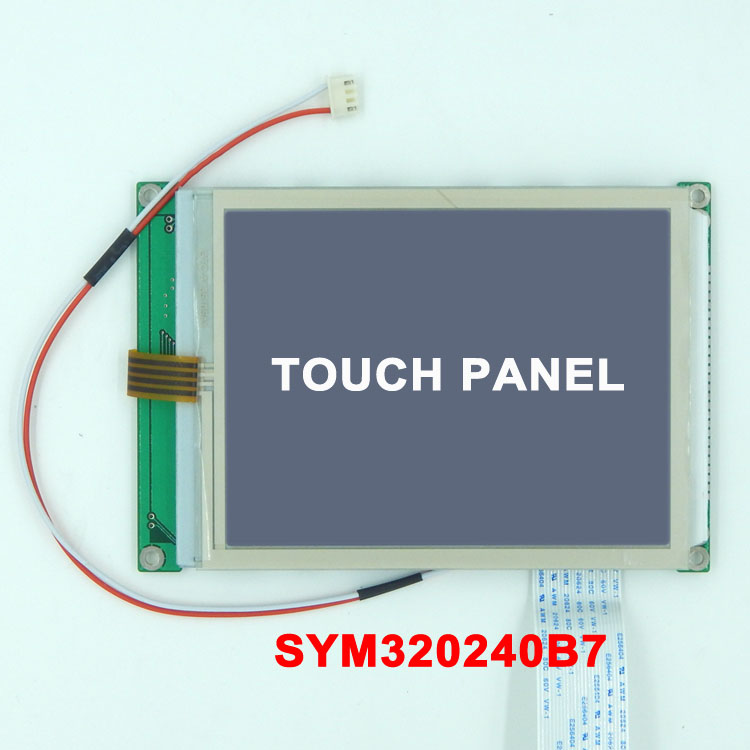

SYM320240B7V61  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+ADS7843 图片

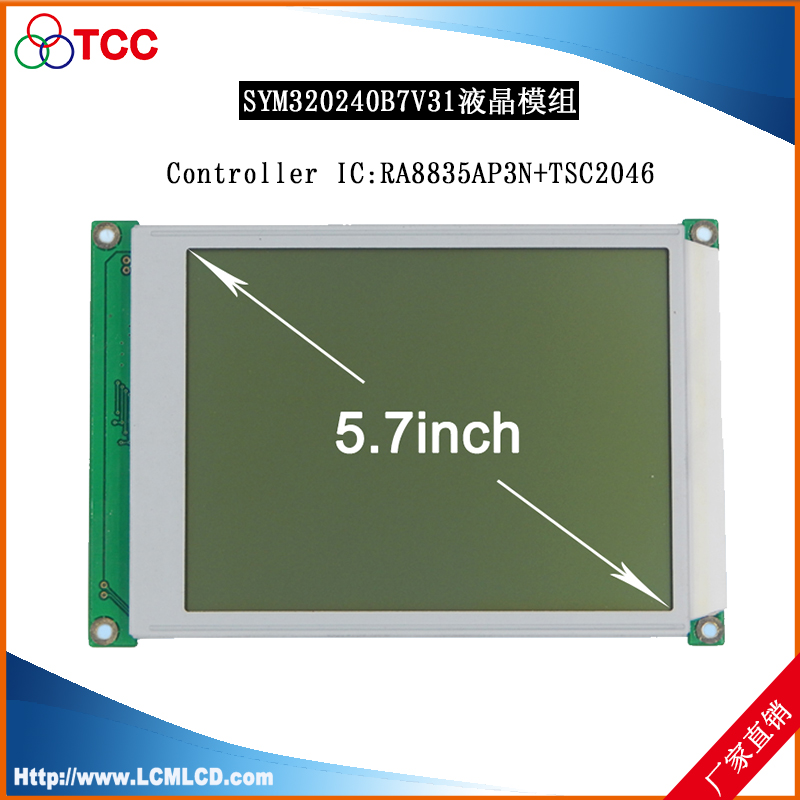

SYM320240B7V31  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+TSD2046 图片

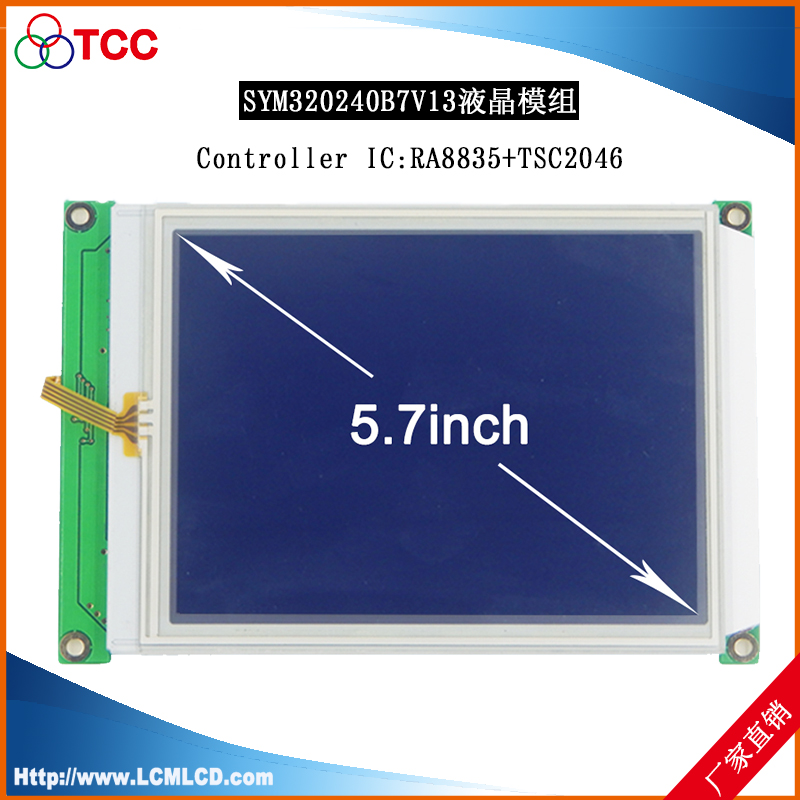

SYM320240B7V13  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+TSD2046 图片
SYM320240B7V12  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8835+TSD2046 图片

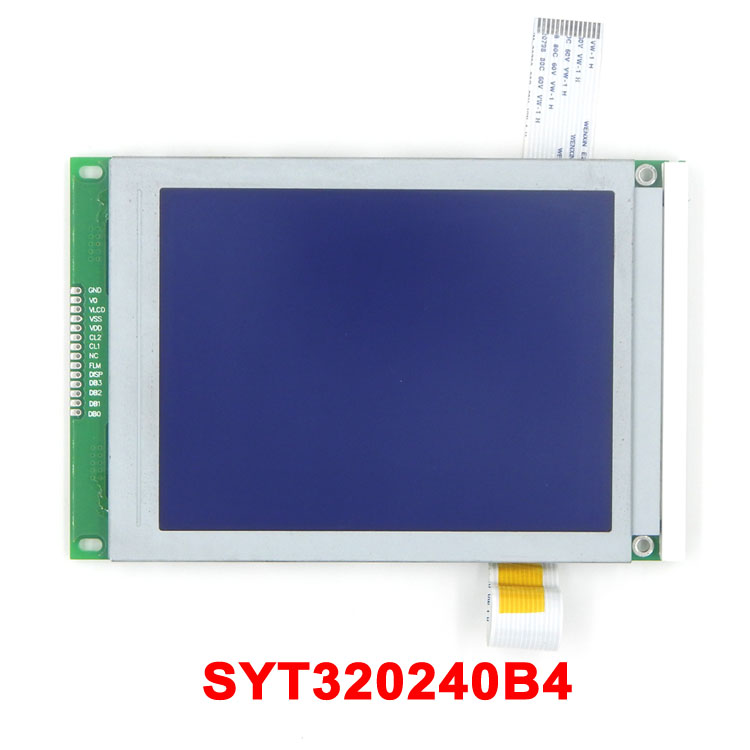

SYT320240B4V11  320240 167.0*109.0*8.6 122.0*92.0 0.33*0.33 5V LED/CCFL NC 图片
SYT320240B4V10  320240 167.0*109.0*8.6 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL NC 图片
SYM320240B3V20  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5V LED/CCFL S1D13700 图片
SYM320240AV11  320240 143.0*96.8*10.0 104.0*79.3 0.27*0.27 5Vor3.3V LED RA8835 图片

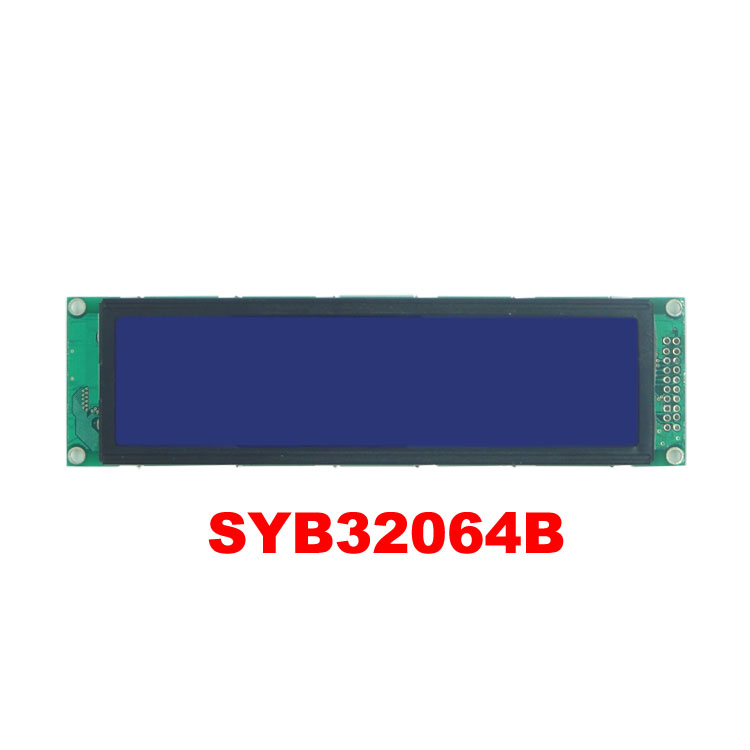

SYB32064BV10  32064 165.0*45.0*13.5 135.8*33.6 0.36*0.36 5V LED T6963orSAP1024B 图片

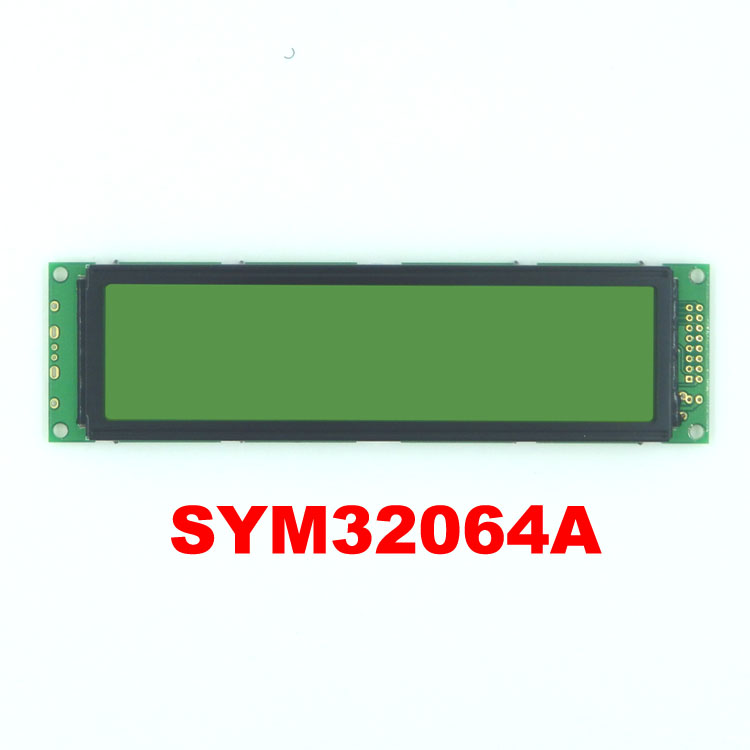

SYM32064AV22  32064 165.0*45.0*13.5 135.8*33.6 0.36*0.36 5V LED LC7981 图片
SYT240160EV20  240160 74.6*54.9*6.5 67.6*47.5 0.225*0.225 5Vor3.3V LED NC 图片

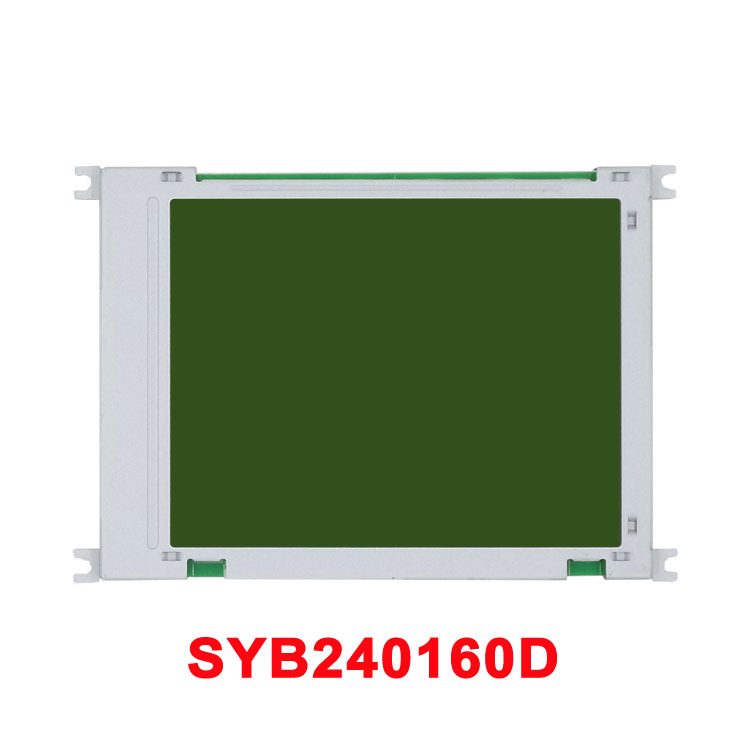

SYB240160DV31  240160 138.9*96.5*10.5 103.5*80.0 0.37*0.40 5V LED RA8835 图片

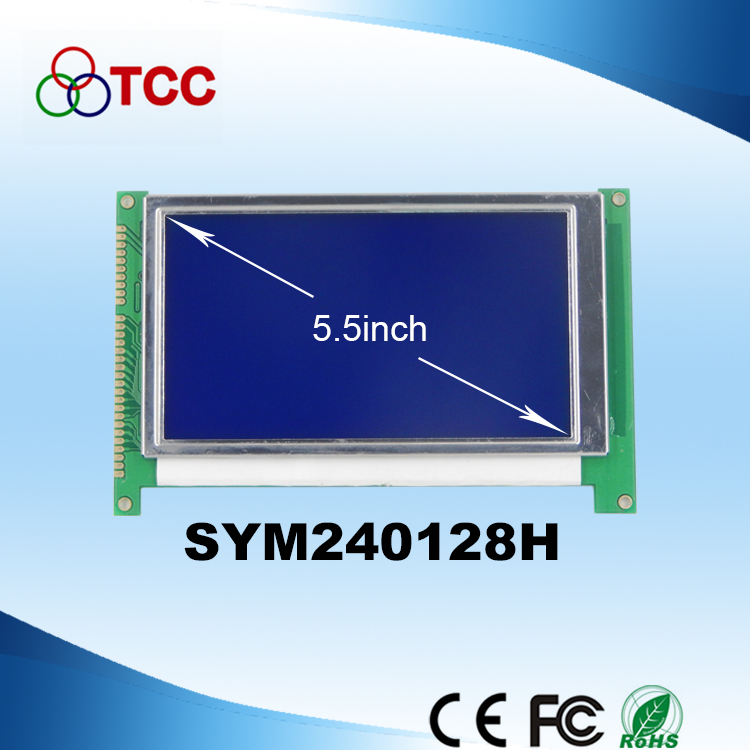

SYM240128HV21  240x128 159.0*101.0*11.0 124.0*70.0 0.47*0.47 5Vor3.3V LED LC7981orT6963 图片

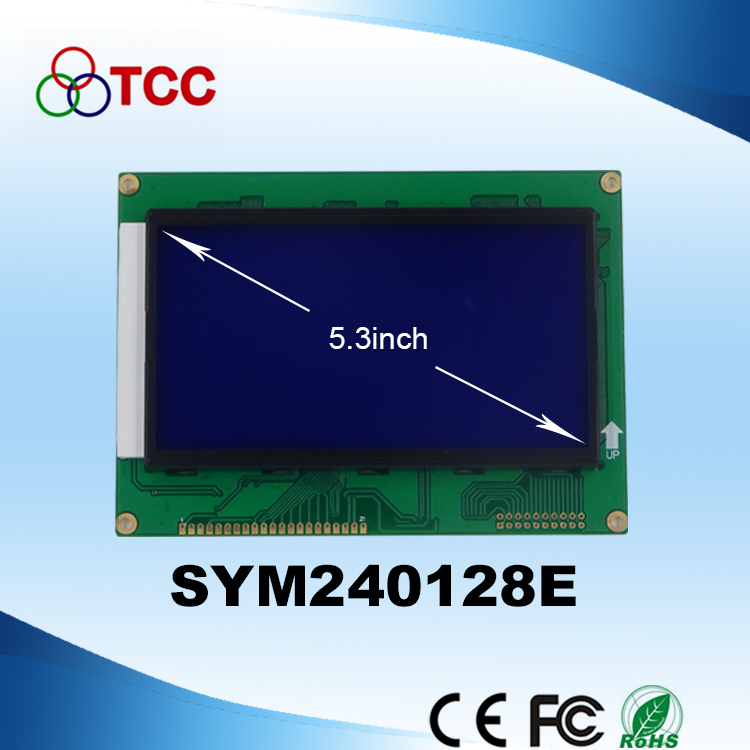

SYM240128EV11  240x128 144.0*104.0*13.5 121.4*63.5 0.42*0.42 5Vor3.3V LED LC7981orT6963 图片

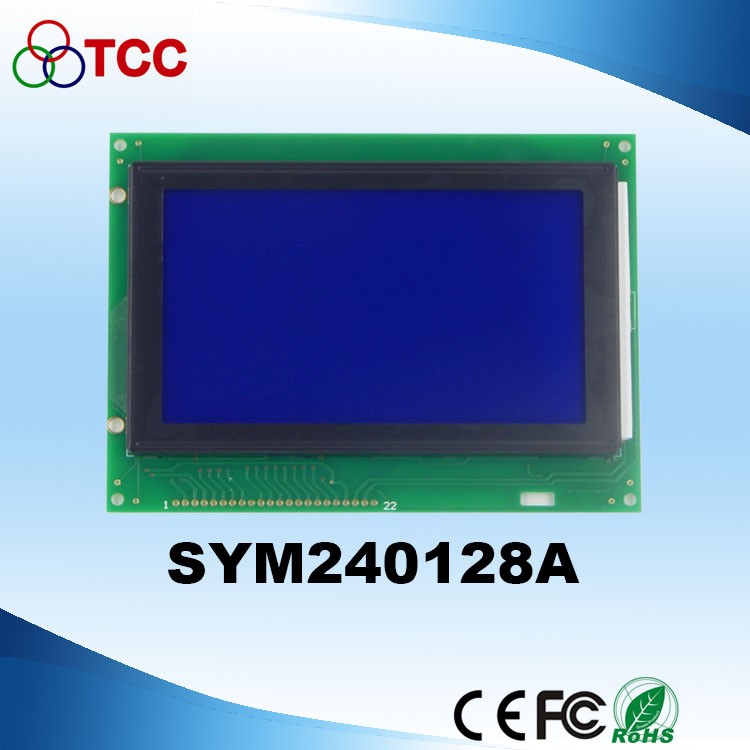

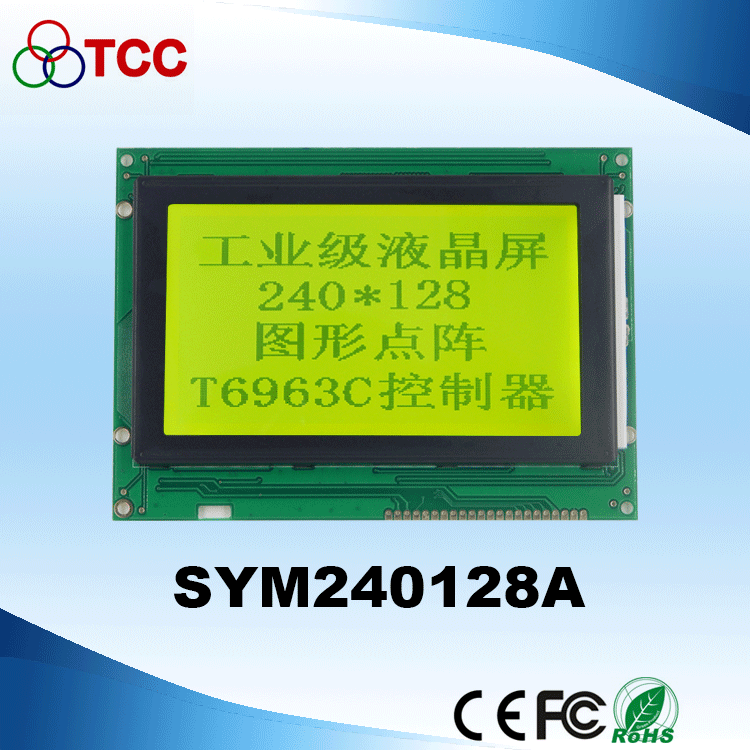

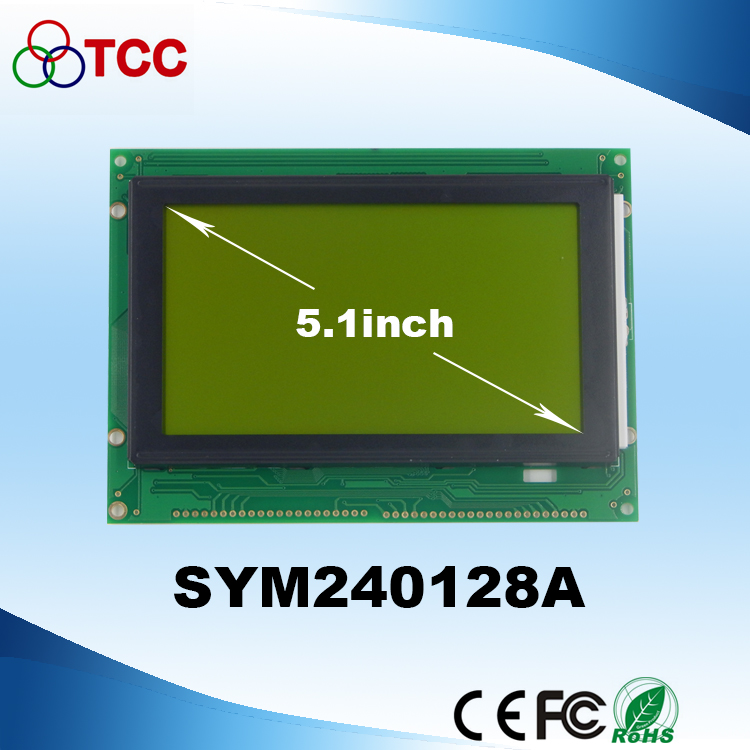

SYM240128A4V10  240128 144.0*104.0*13.0 114.0*64.0 0.40*0.40 5Vor3.3V LED T6963orSAP1024B 图片
SYM240128A3V10  240128 144.0*104.0*13.0 114.0*64.0 0.40×0.40 5Vor3.3V LED T6963 图片
SYM240128A2V22  240128 144.0×104.0×13.0 114.0×64.0 0.40×0.40 5Vor3.3V LED T6963orSAP1024B 图片

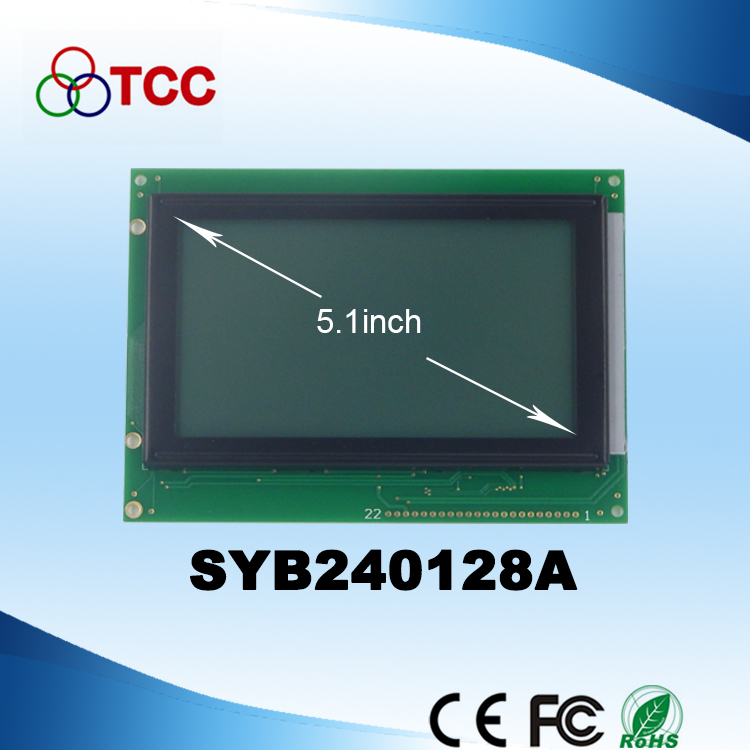

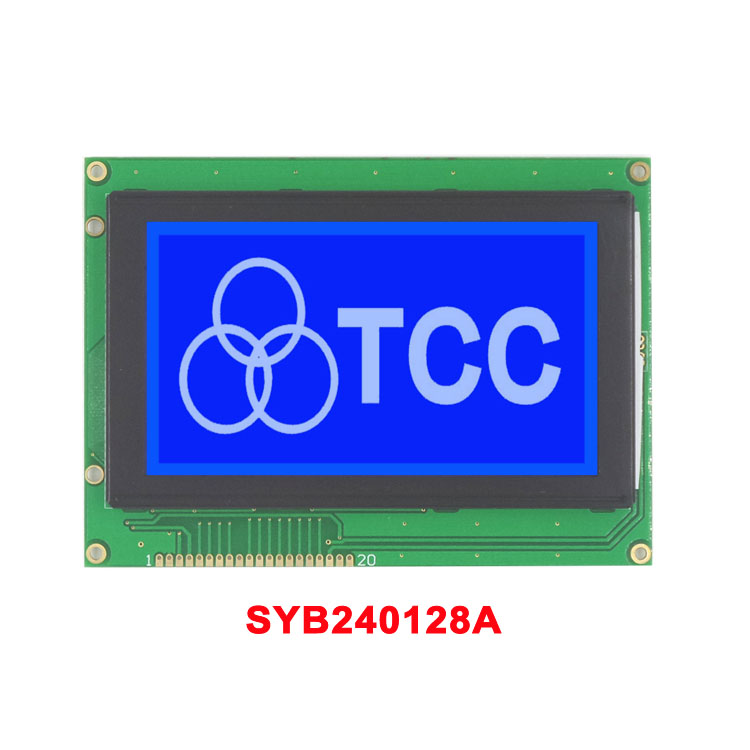

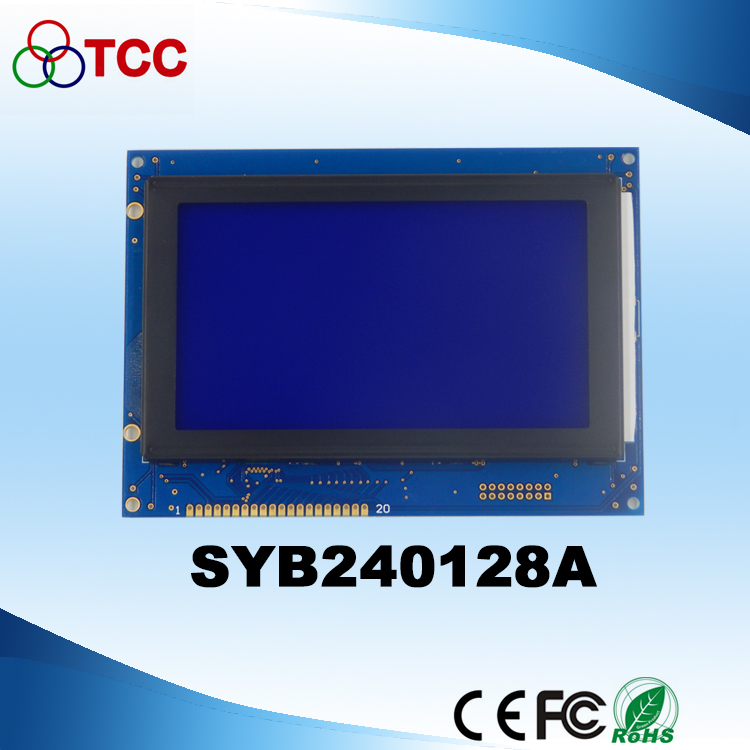

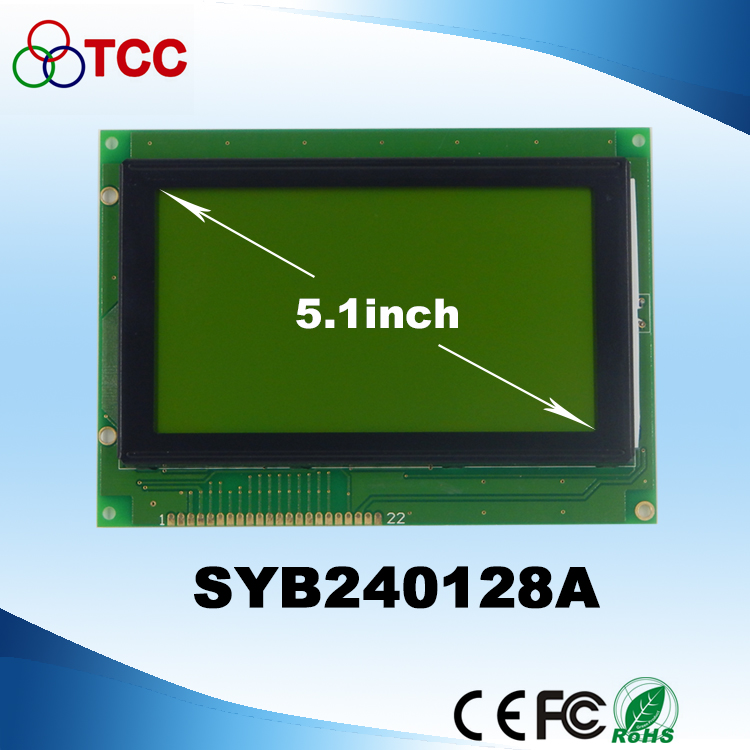

SYB240128A5V10  240128 144.0*104.0*13.0 114.0*64.0 0.40*0.40 5Vor3.3V LED RA8835 图片
SYB240128A4V10  240128 144.0*104.0*13.0 114.0*64.0 0.40*0.40 5Vor3.3V LED T6963orSAP1024B 图片
SYM240128A3V20  240x128 144.0*104.0*13.0 114.0*64.0 0.40*0.40 5Vor3.3V LED T6963C 图片
SYB240128A3V21  240x128 144.0*104.0*13.0 114.0*64.0 0.40*0.40 5Vor3.3V LED T6963C 图片

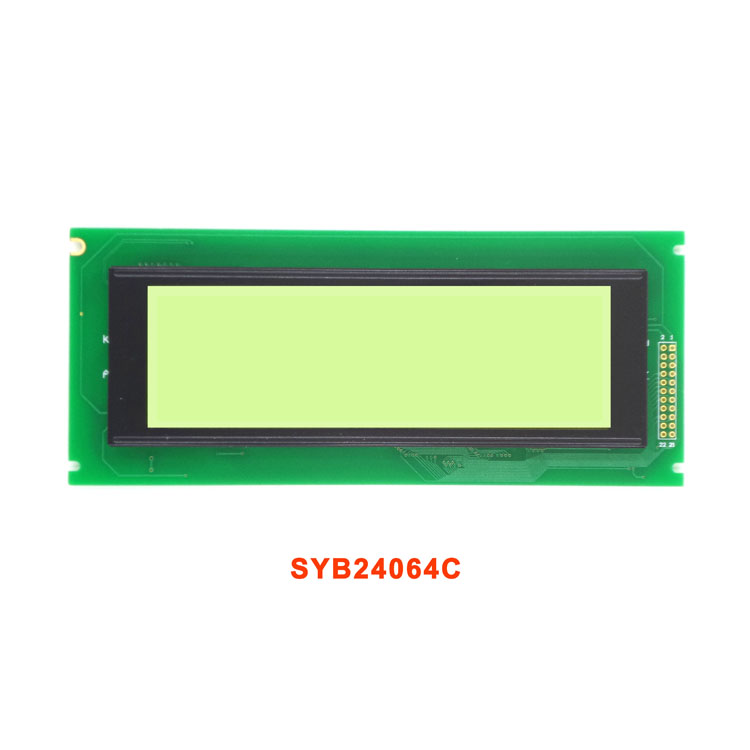

SYB24064CV11  24064 180.0*75.0*13.5 134.0*41.0 0.49*0.49 5V LED KS0107 图片

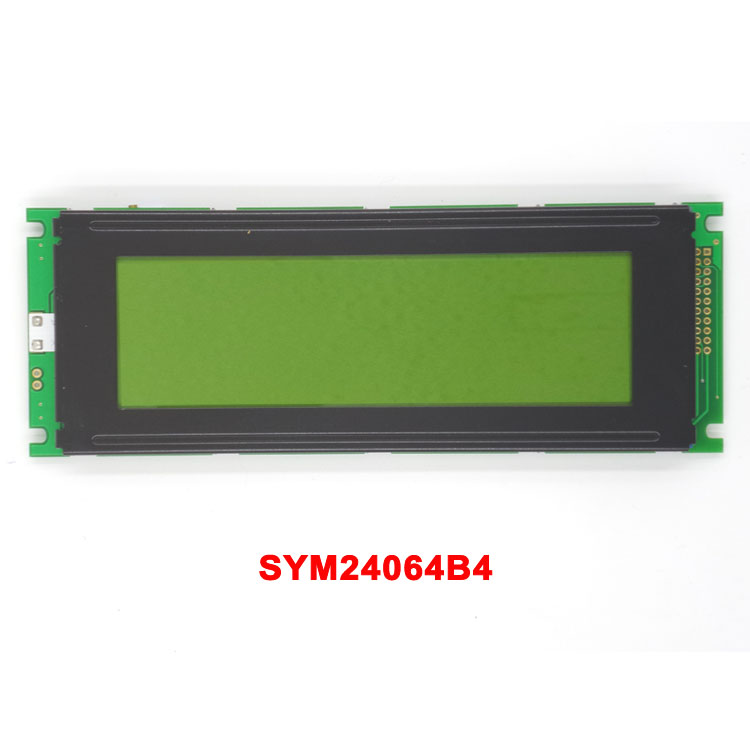

SYM24064B4V12  24064 180.0*65.0*13.5 132.6*39.0 0.48*0.48 5V LED T6963orSAP1024B 图片

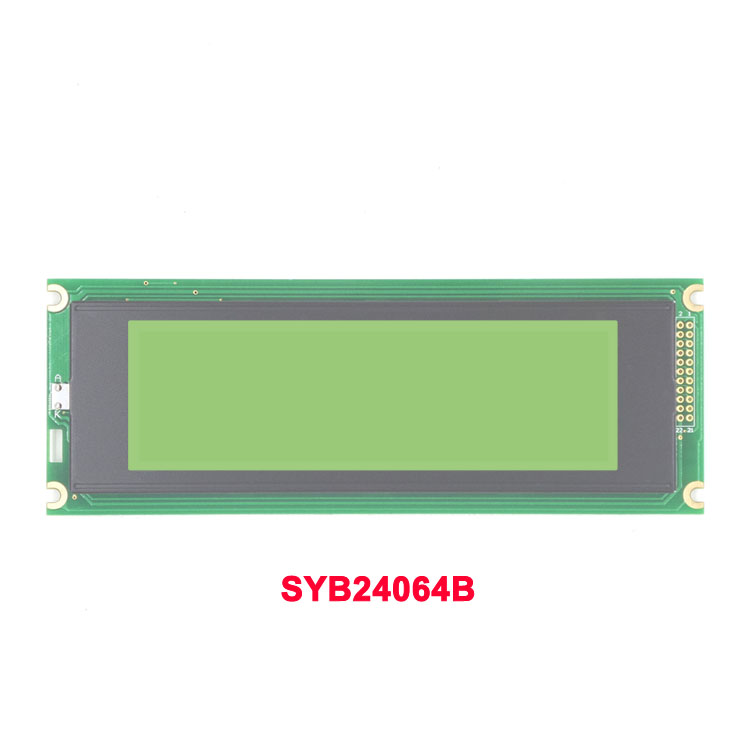

SYB24064BV10  24064 180.0*65.0*13.5 132.6*39.0 0.49*0.49 5V LED T6963orSAP1024B 图片

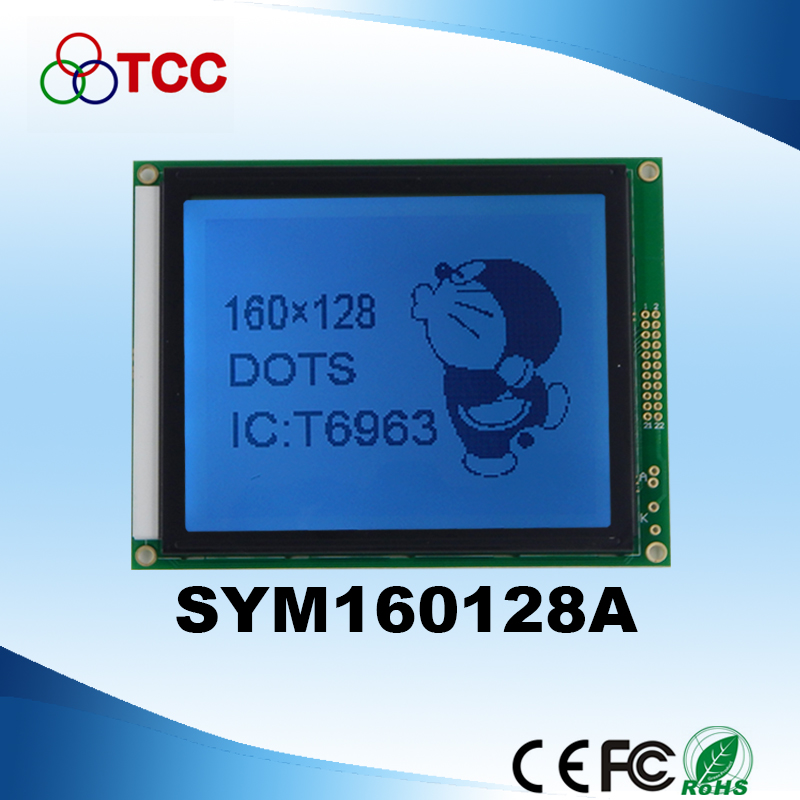

SYM160128A1V13  160128 129.0*102.0*13.0 101.0x82.0 0.54x0.54 5V LED T6963C 图片

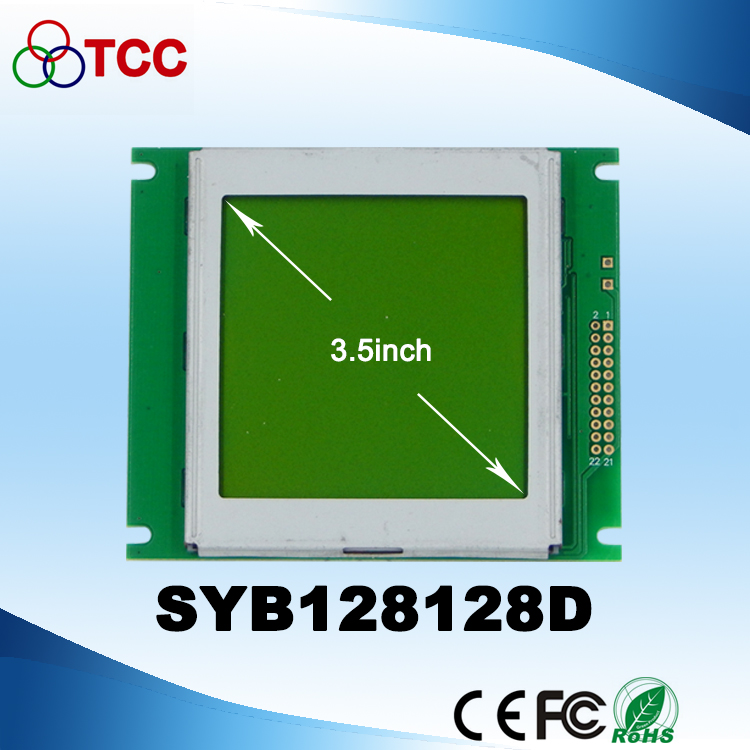

SYB128128DV10  128*128 85.0*100.0*13.5 62.0*62.0 0.39*0.39 5V LED KS0107 图片

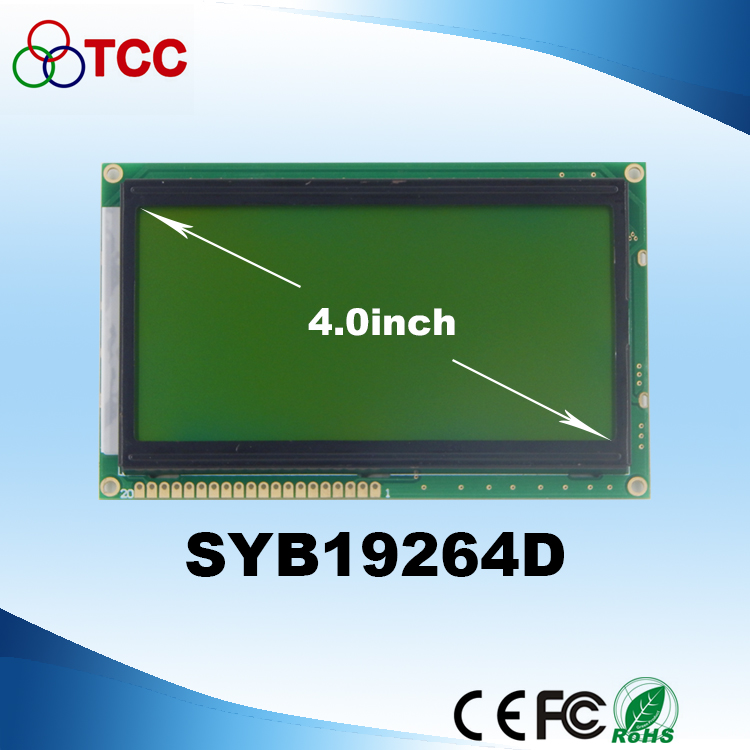

SYB19264D1V10  19264 113.0*71.0*12.5 98.0*49.0 0.62*0.44 5Vor3.3V LED AIP31107/8 图片

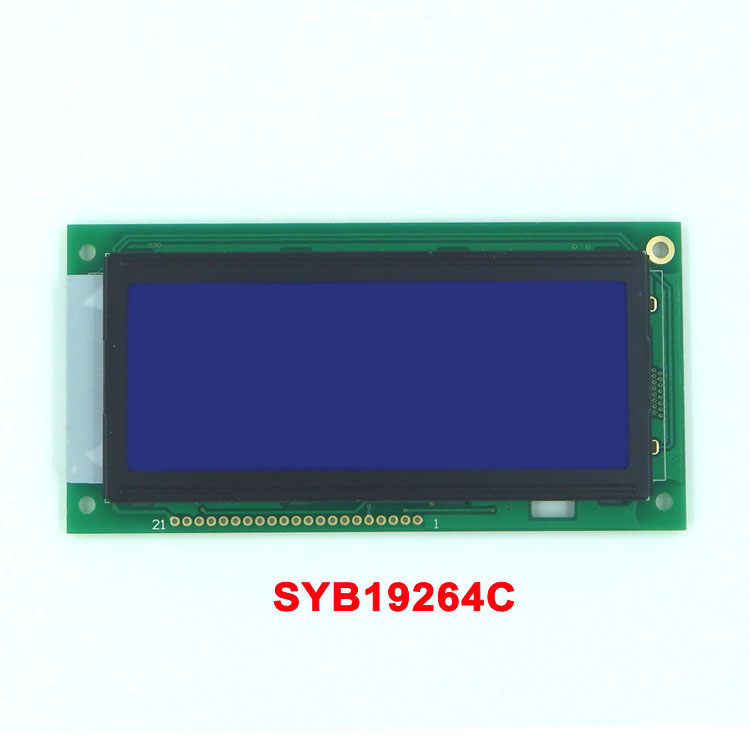

SYB19264C1V11  19264 130.0*65.0*13.0 104.0*39.0 0.46*0.46 5Vor3.3V LED AIP31107/8 图片

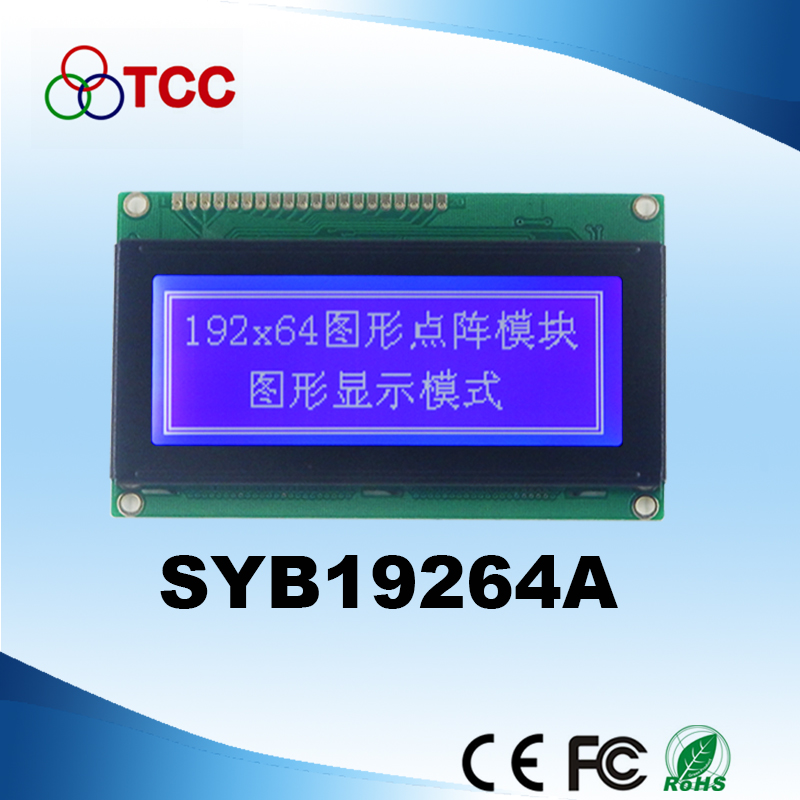

SYB19264A2V30  19264 100.0*60.0*12.0 84.0*31.0 0.36*0.36 5V LED S6B0107+AIP31107 图片
SYB19264AV11  192x64 100.0x60.0x12.0 84.0x31.0 0.36x0.36 5V LED AIP31107/8 图片

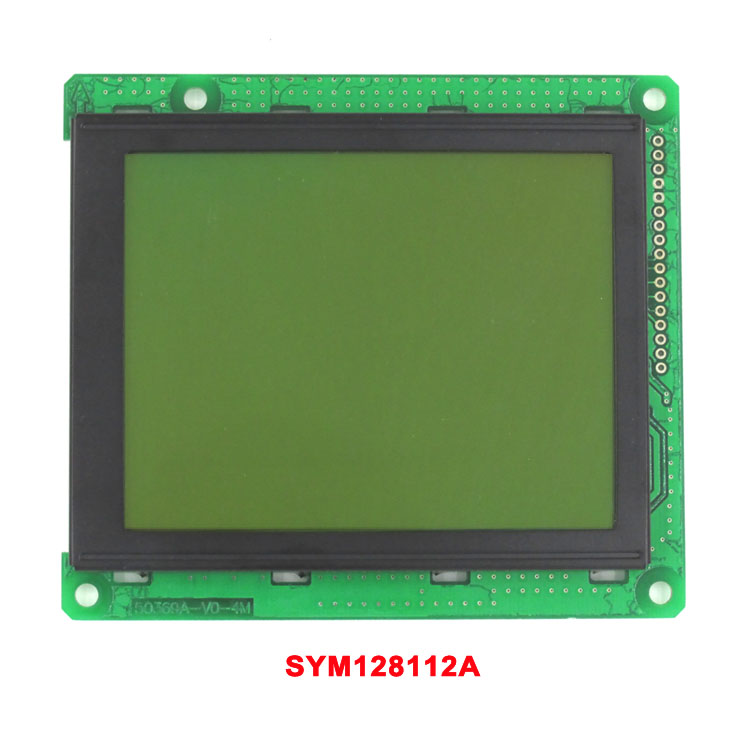

SYM128112AV10   128112 110.0*97.0*13.0 85.0*66.0 0.58*0.49 5V LED NC 图片

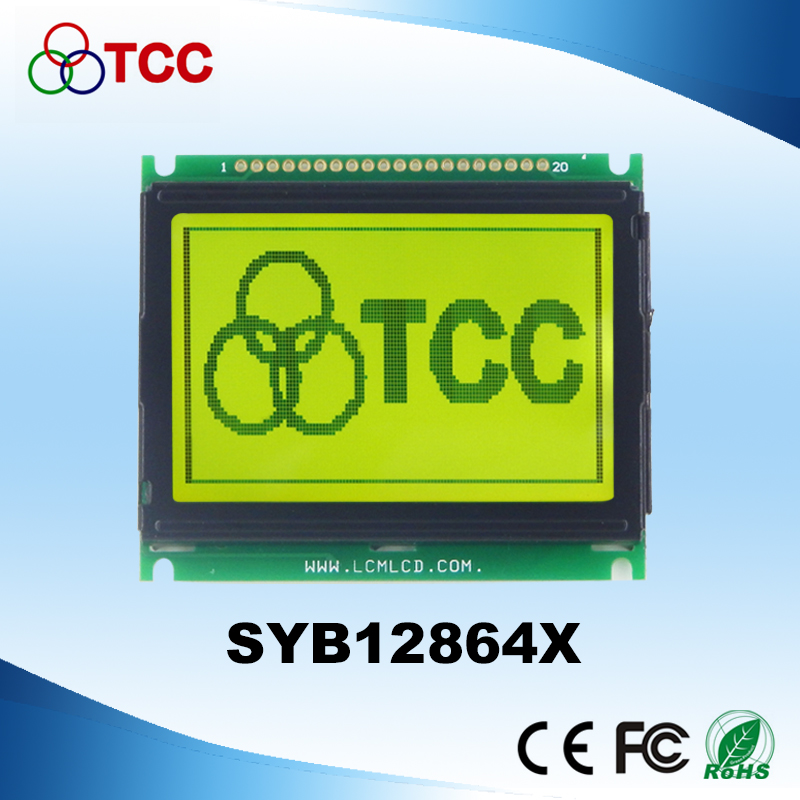

SYB12864XV10  128x64 63.2*54.0*9.5 54.0*35.9 0.35*0.45 5V LED AIP31107/8 图片
SYB12864C2L1-2  12864 78.0*70.0*12.5 62.0*44.0 0.40*0.56 5Vor3.3V LED AIP31107/8 图片

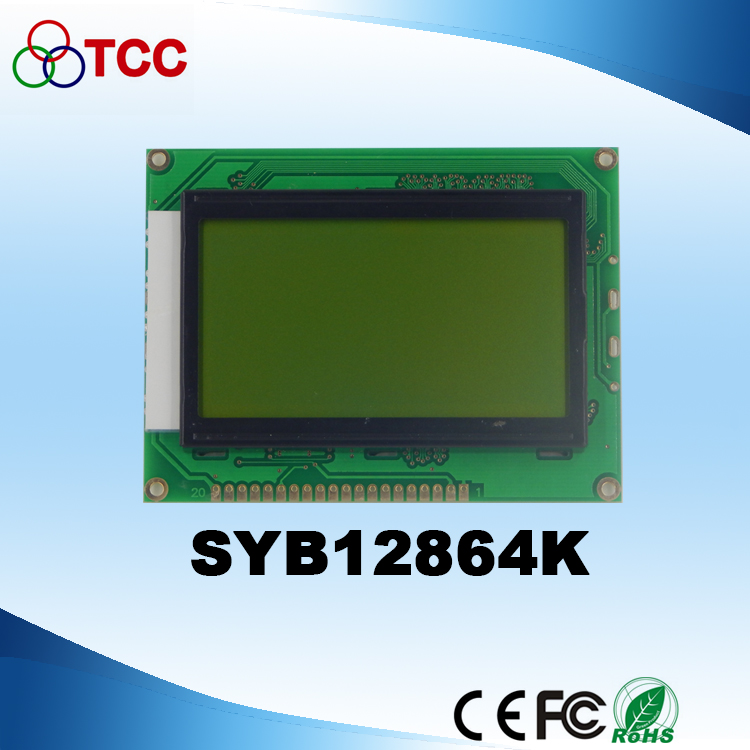

SYB12864K5V10  12864 93.0*70.0*14 72.0*39.0 0.48*0.48 3.3v,5v LED ST7920 图片
SYB12864IV20  128*64 54.0*50.0*6.2 43.5*29.0 0.28*0.35 5V LED AIP31107/8 图片

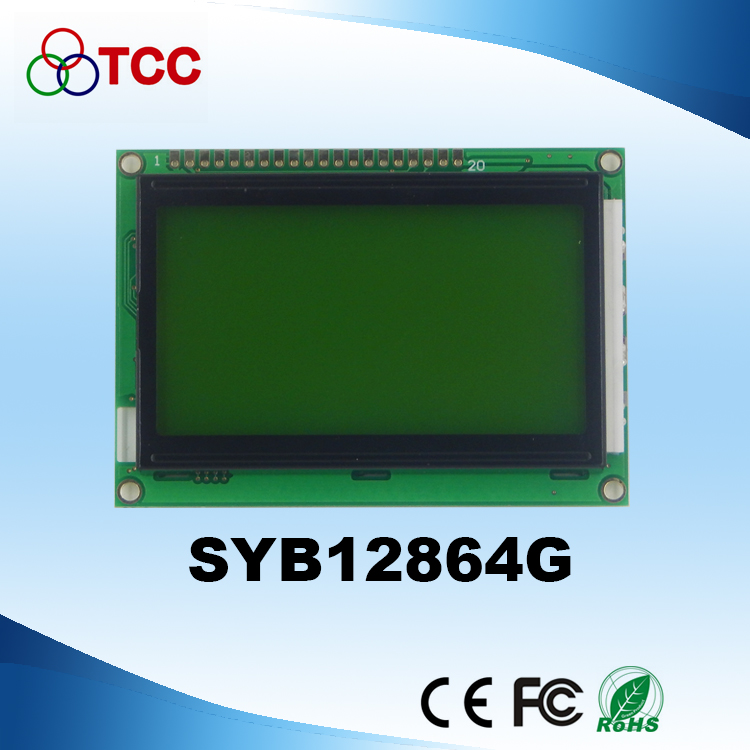

SYB12864GV10  12864 93.0×70.0×12.5 72.0×39.0 0.48×0.48 5V LED AIP31107/8 图片

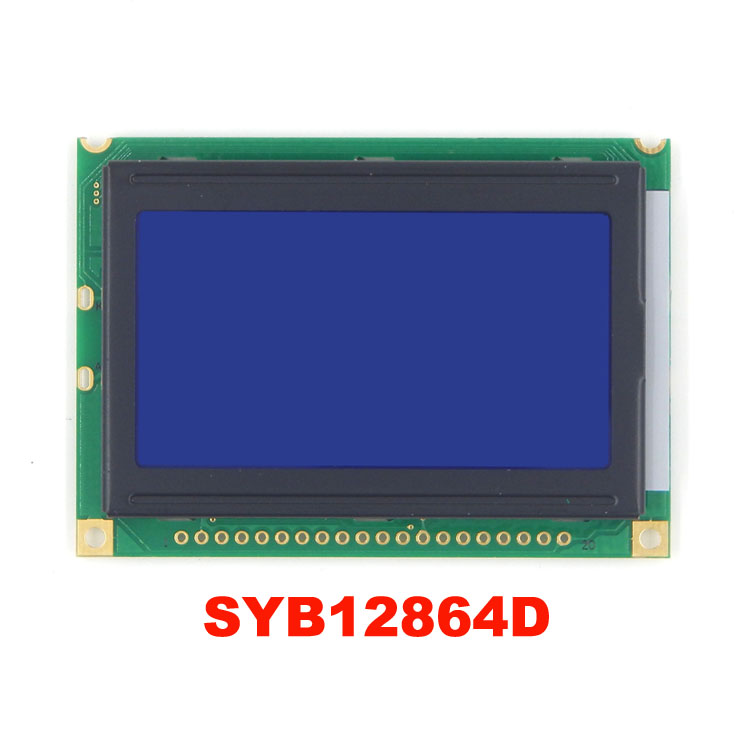

SYB12864D2V20  12864 75.0*52.7*9.0 60.0*32.5 0.43*0.43 5Vor3.3V LED AIP31107/8 图片
SYB12864C5V20  12864 93*70*12.5 72.0*39.0 0.48*0.48 5V LED AIP31107/8 图片
SYB12864C5V12  12864 93*70*12.5 72.0*39.0 0.48*0.48 5V LED AIP31107/8 图片

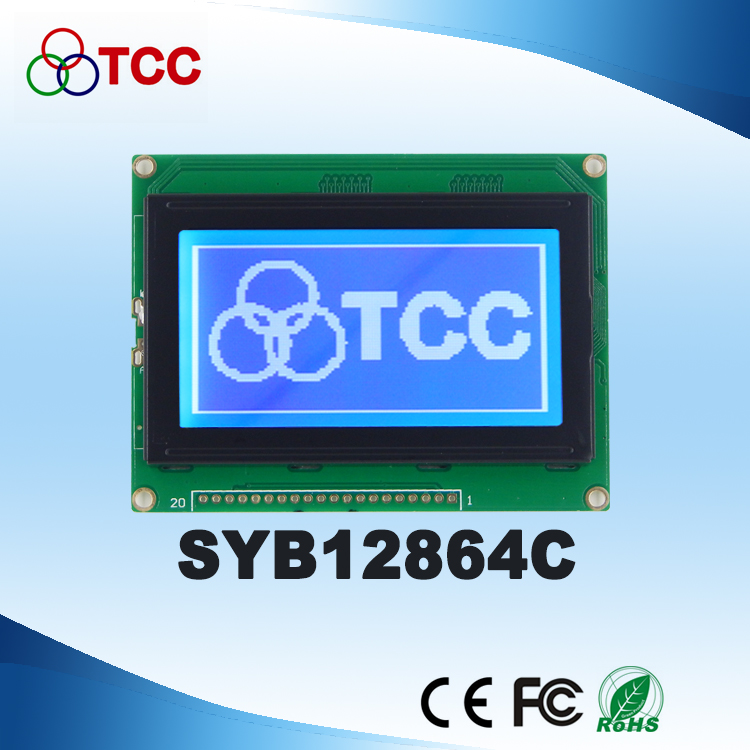

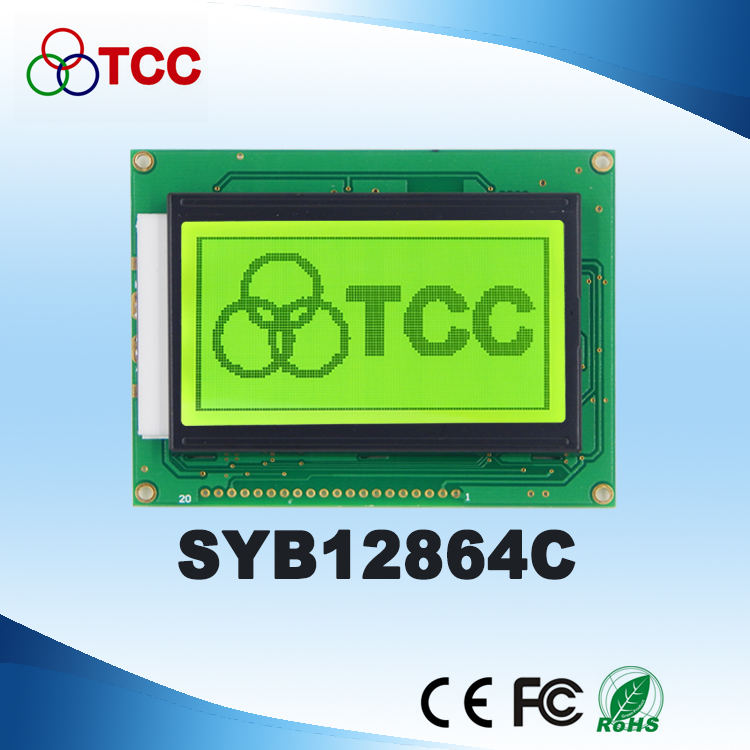

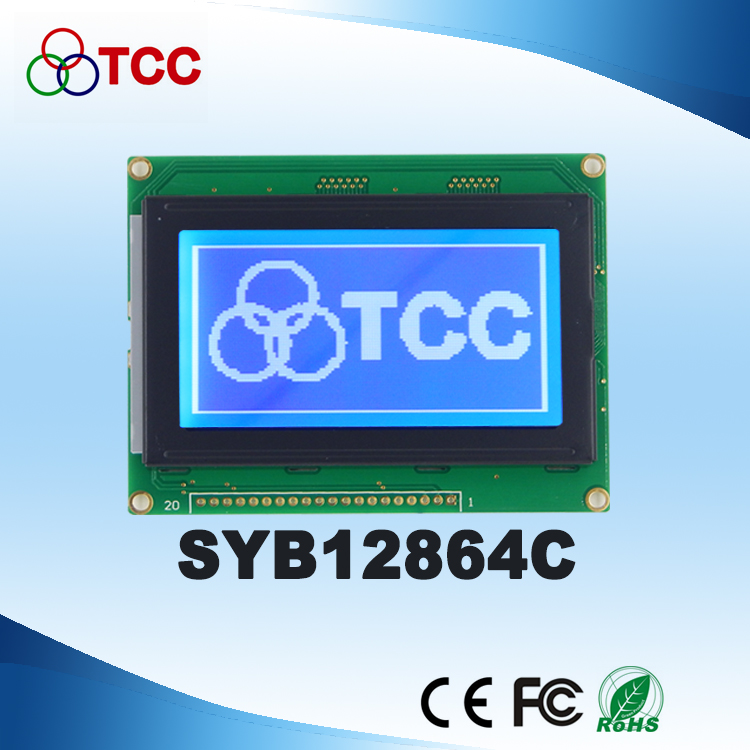

SYB12864CV15  12864 93*70*12.5 72.0*39.0 0.48*0.48 5Vor3.3V LED S6B0107,S6B0108 图片

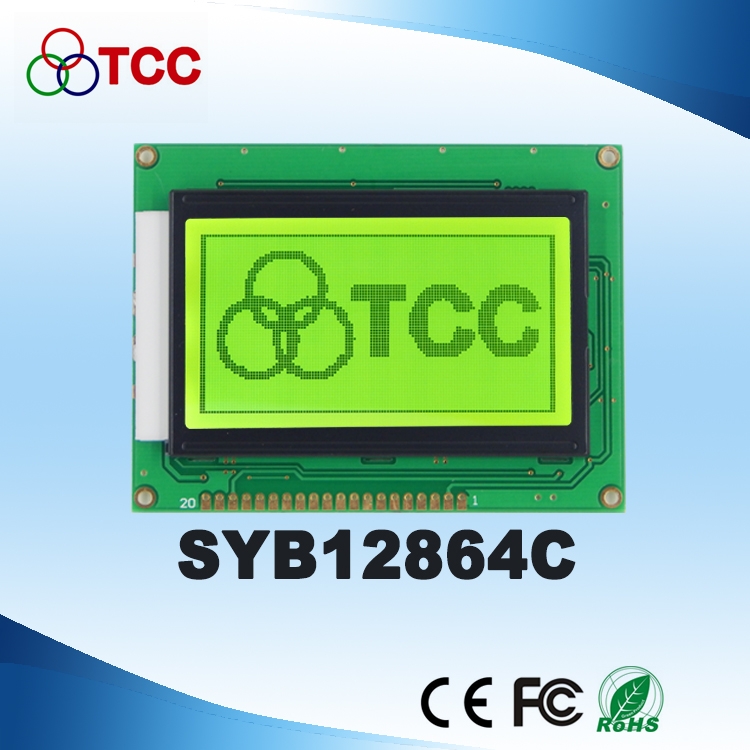

SYB12864CV13  12864 93.0*70.0*12.5 72.0*39.0 0.48*0.48 5Vor3.3V LED AIP31107/8 图片

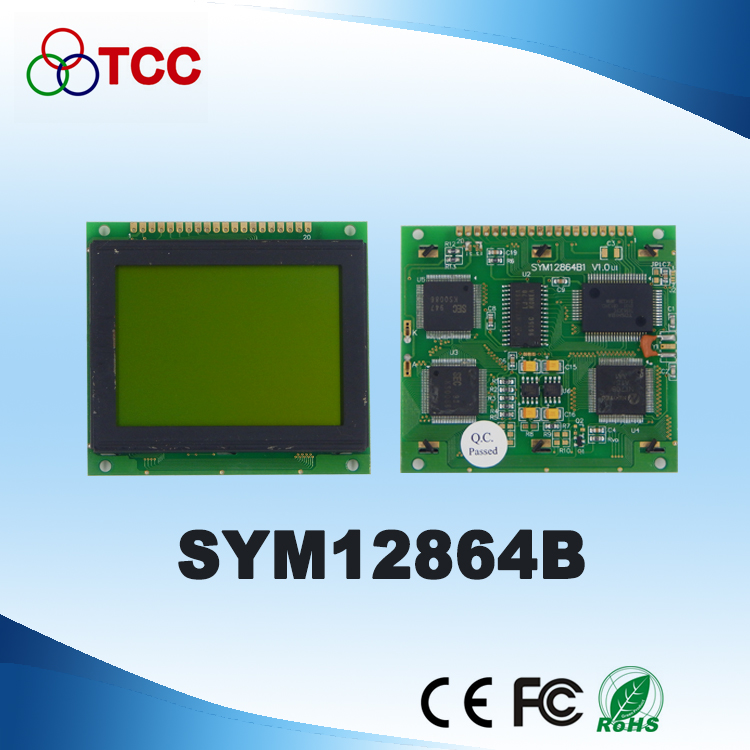

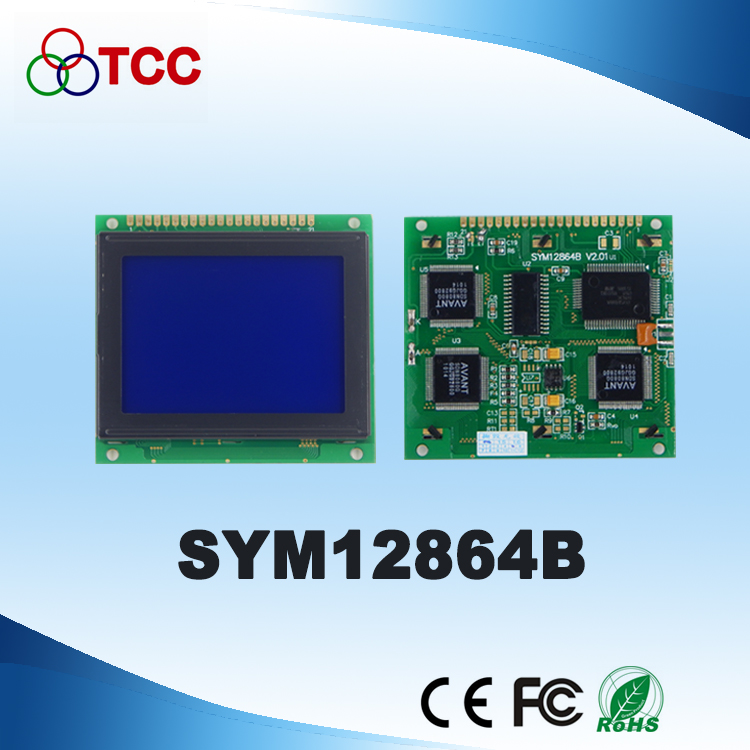

SYM12864B1V10  12864 78.0*70.0*12.5 62.0*44.0 0.40*0.56 5V LED T6963 图片
SYM12864BV201  12864 78.0*70.0*12.5 62.0*44.0 0.40*0.56 5V LED T6963 图片

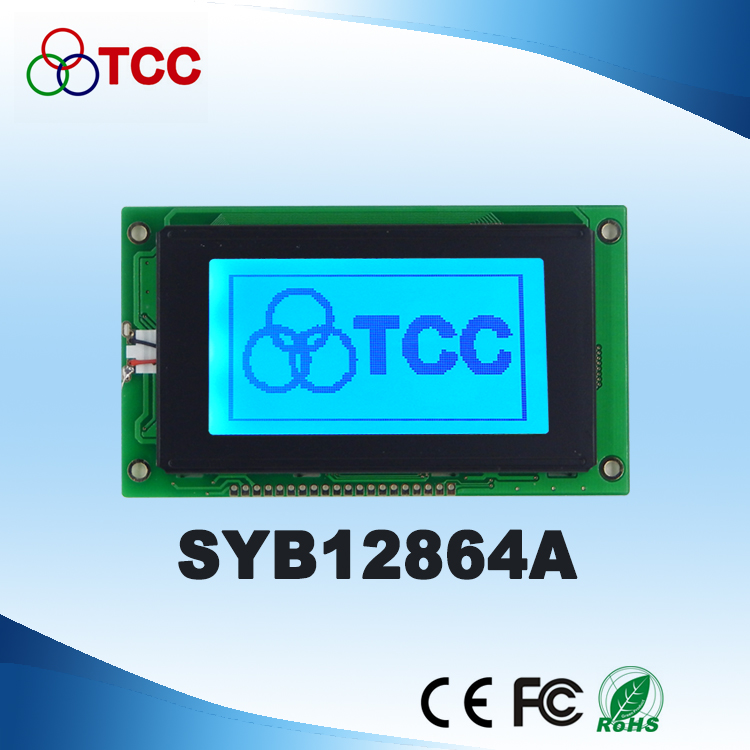

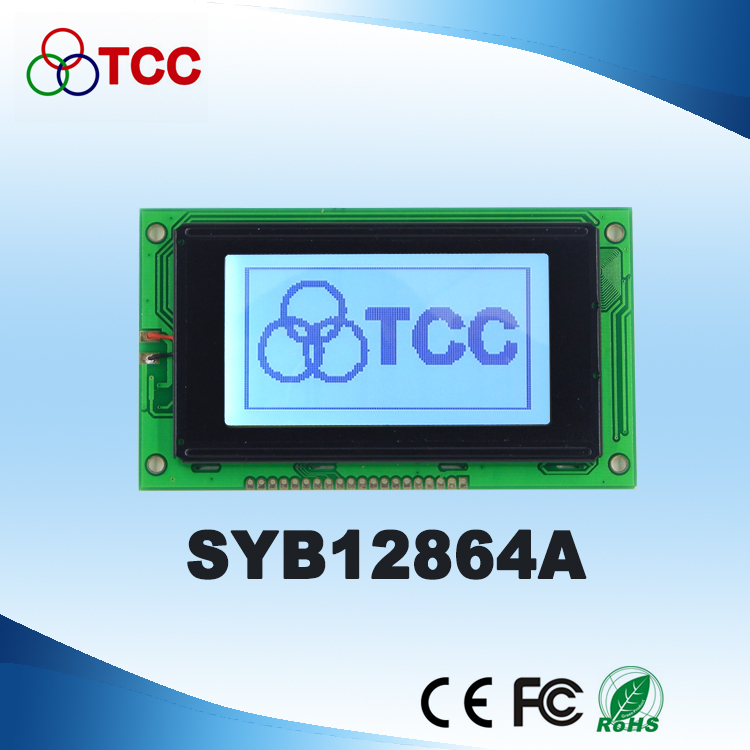

SYB12864AV30  12864 113.0*65.0*13.0 73.5*39.0 0.46*0.46 5Vor3.3V LED S6B0107 图片
SYB12864AV20  12864 113.0*65.0*12.0 73.4*38.80 0.48*0.48 5Vor3.3V LED S6B0107 图片

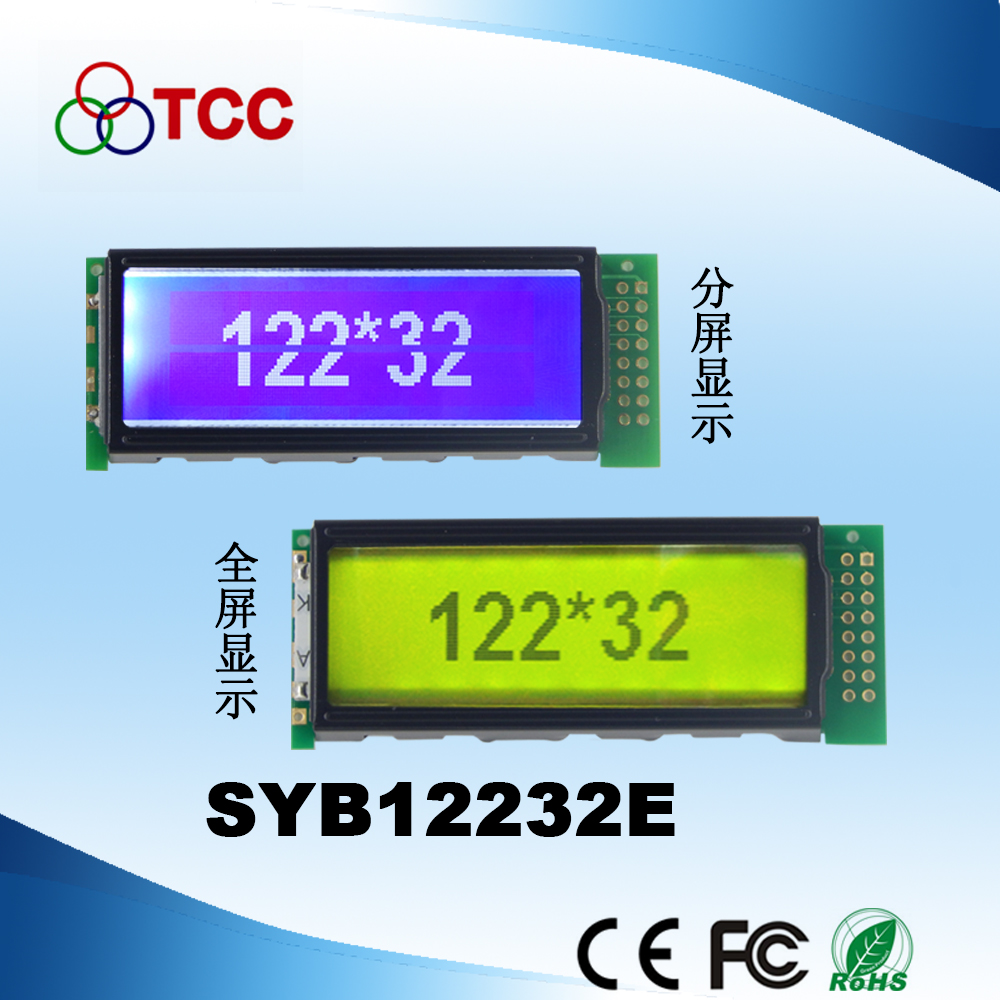

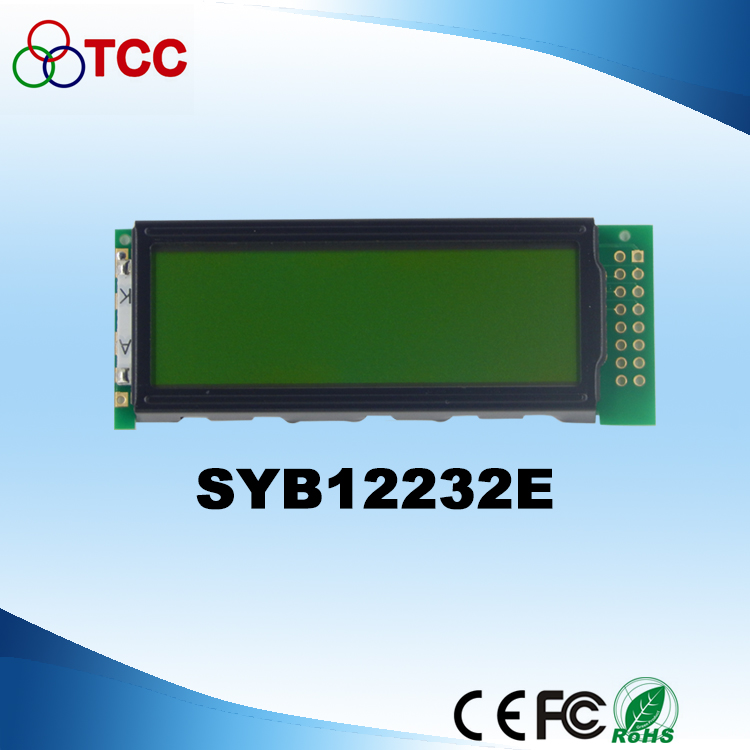

SYB12232EV11  12232 76.5*29.0*7.1 60.0*21.0 0.36*0.41 5V LED SED1520 图片
SYB12232EV10  12232 76.5*29.0*7.1 60.0*21.0 0.36*0.41 5V LED SED1520 图片

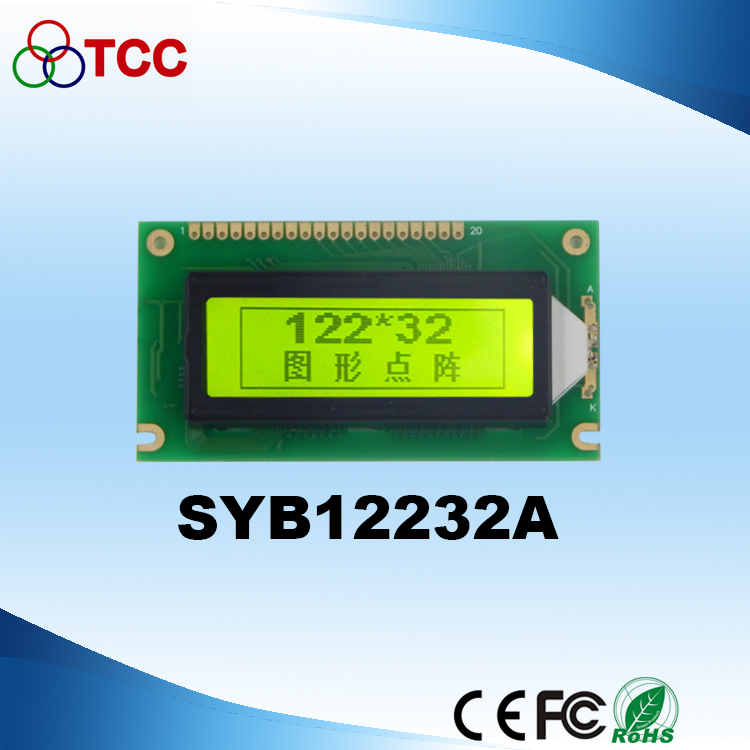

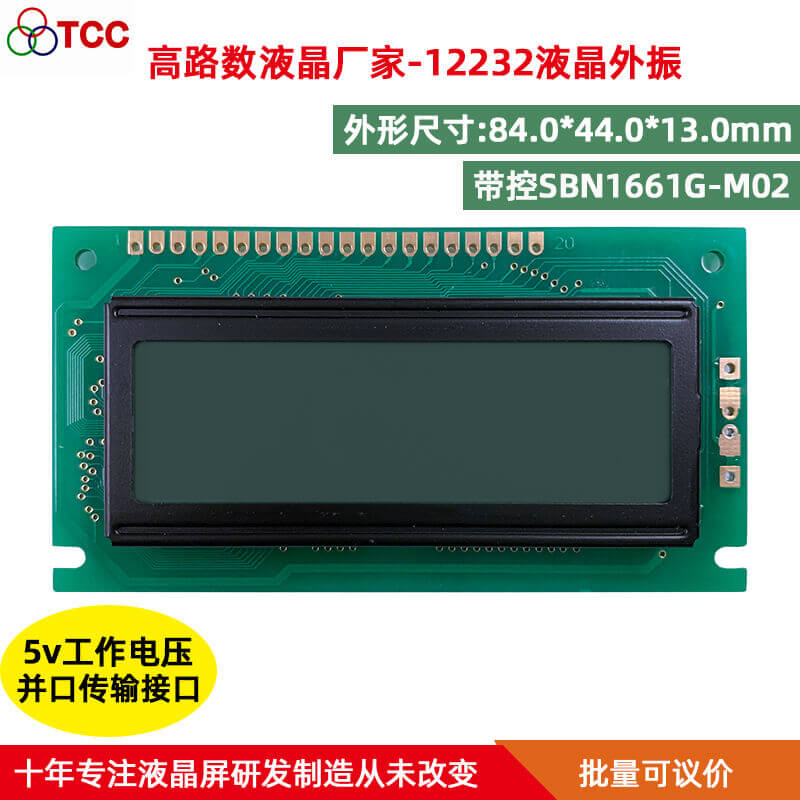

SYB12232A3V11  12232 84.0*44.0*12.5 60.0*18.0 0.36*0.42 5V LED SBN1661GM18 图片
SYB12232A1V10  12232 84.0×44.0×12.5 60.0×18.0 0.36×0.42 5V LED SBN1661G 图片
SYM320240B9V10  320x240 163.77x109.45x9.62 121.00x92.00 0.33x0.33 VDD:5.0v FSTN/Negative/Transmissive NO 图片
SYB240128EV20  240*128 144.0*104.0*13.5 121.4*63.5 0.42*0.42 5V LED LC7981 图片

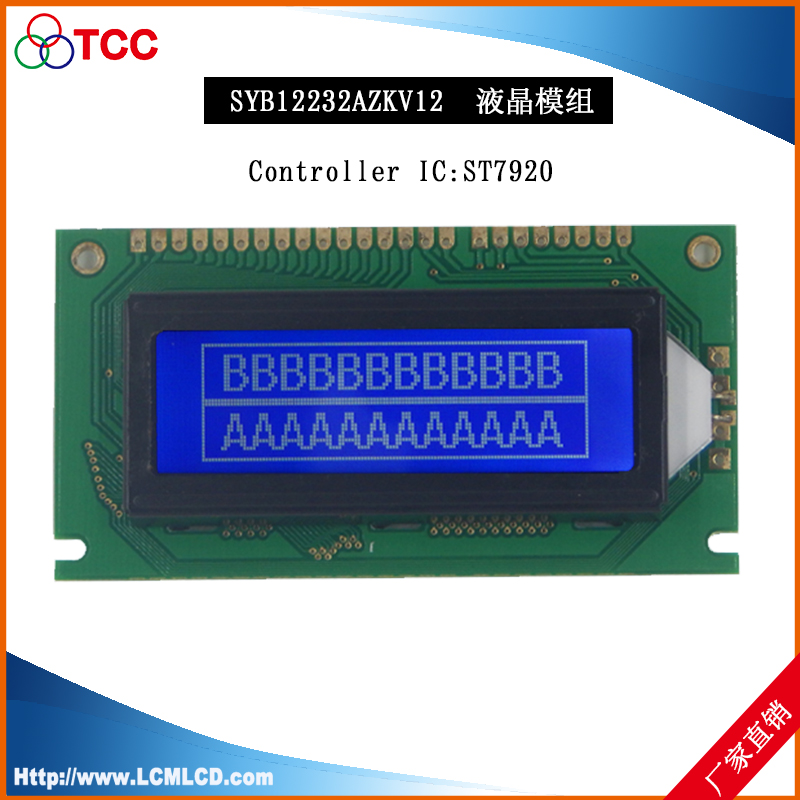

SYB12232AZKV12(蓝膜)  122x32 84.0x44.0x13.0 60.0x18.0 0.40x0.45 VDD:5.0V STN/Blue/Negative/Transmissive ST7920 图片
SYB12832BZKV30(黄绿膜)  128x32 80.6x42.8x13.0 60.0x18.0 0.36x0.41 VDD:5.0V STN Yellow-green Blue,FSTN ST7920 图片
SYB16032AZKV20(蓝膜)  160x32 122.0x44.0x13.0 99.0x24.0 0.55x0.55 VDD:5.0V STN/Positive/Transflective/YG ST7920 图片

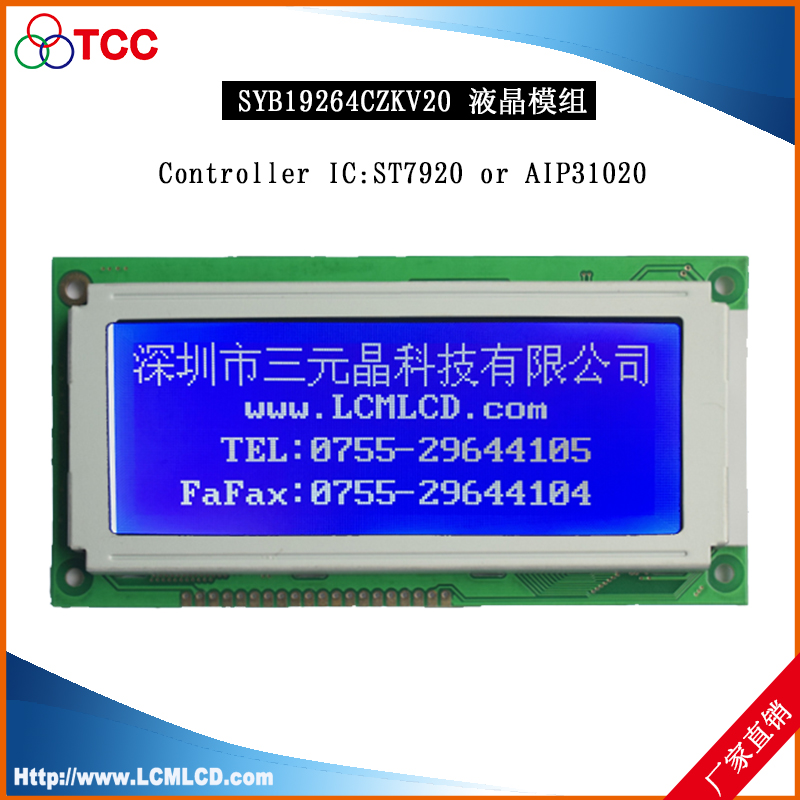

SYB19264CZKV20  192x64 130.0x65.0x12.7 104.0x39.0 0.39x0.55 VDD:5.0V STN/Blue/Negative/Transmissive ST7920 or AIP31020 图片

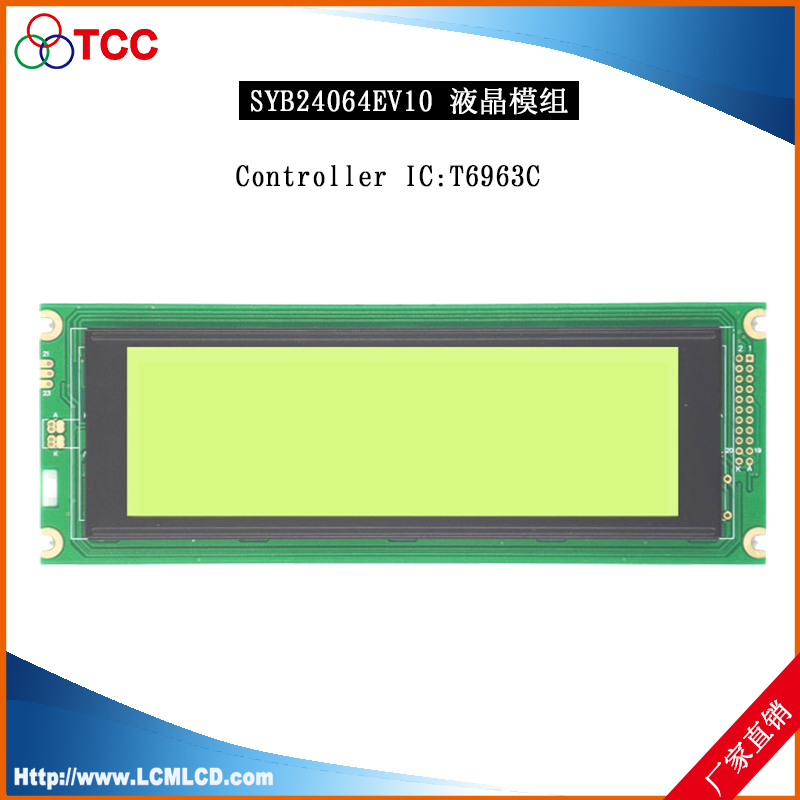

SYB24064EV10  240x64 180.0x65.0x13.5 134.0x41.0 0.49x0.49 VDD:5.0V STN/Positive/Transflective/YG T6963C 图片

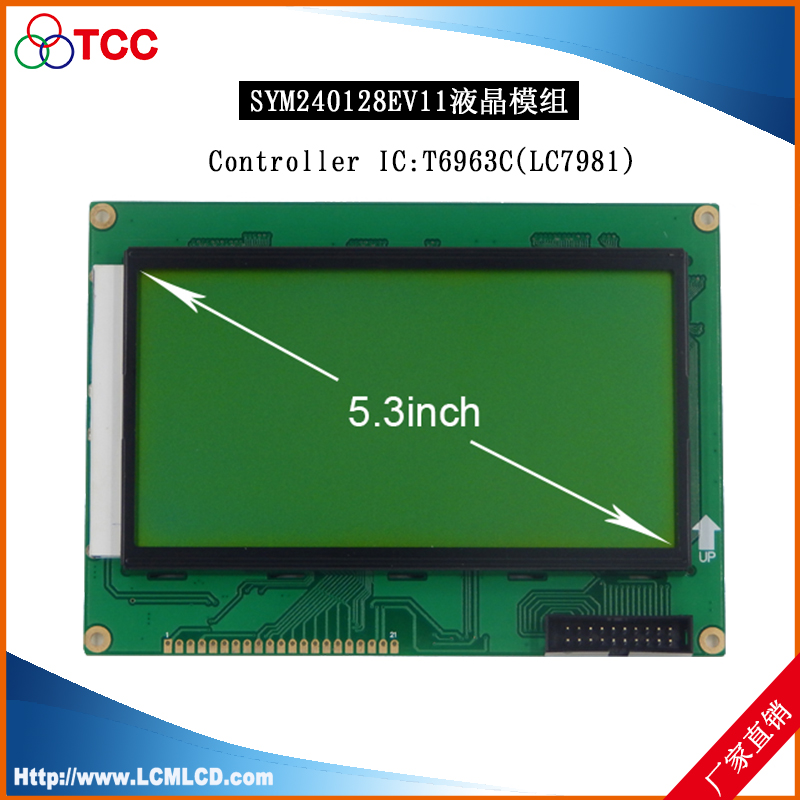

SYM240128EV11(黄绿膜)  240x128 144.0x104.0x14.0 121.4x63.5 0.42x0.42 VDD:5.0V STN/Blue/Negative/Transmissive T963C(LC7981) 图片
SYB24064AV10  240*64 180.0*65.0*12.5 132.6*39.0 0.49*0.49 3.3v/5v LED LC7981 图片

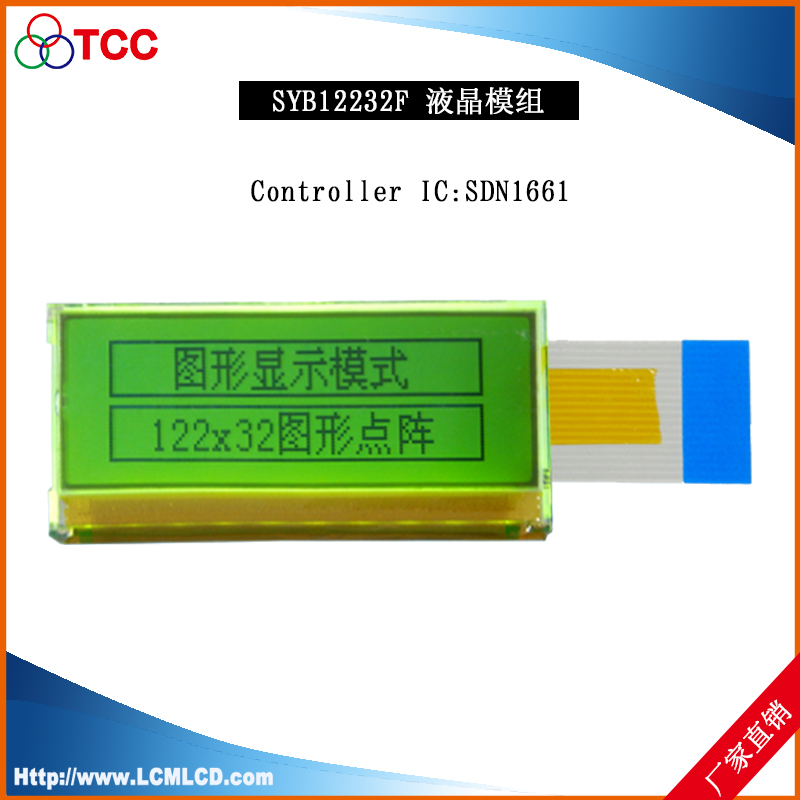

SYB12232F  122x32 65.4x29.1x6.0 54.8x19.1 0.36x0.41 VDD:5.0V STN/Positive/Transflective/YG SDN1661 图片
SYM320240BZKM333  320*240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5v LED RA8806 图片
12864888V10  128*64 93.0*70.0*12.5 72.0*40.0 0.48*0.48 5v LED UCI0108/7 图片

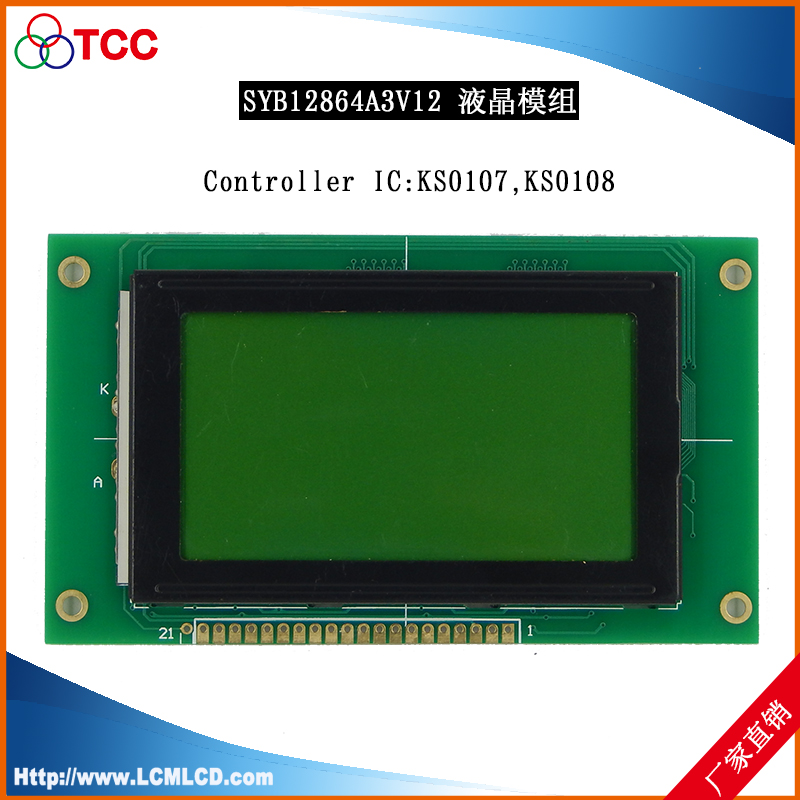

SYB12864A3V12  128x64 113.0x65.0x13.0 71.6x38.9 0.48x0.48 VDD:5.0V STN/Blue/Negative/Transmissive KS0107,KS0108 图片

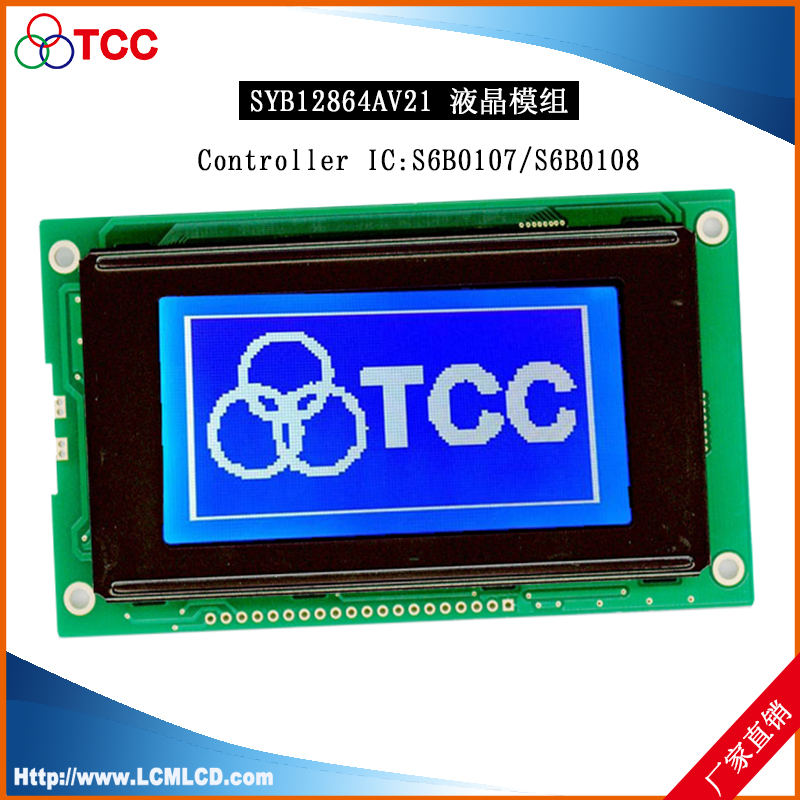

SYB12864AV21(蓝底)  128x64 113.0x65.0x12.7 73.5x39.0 0.458x0.458 VDD:5.0V STN/Positive/reflecttve/YG S6B0107/S6B0108 图片

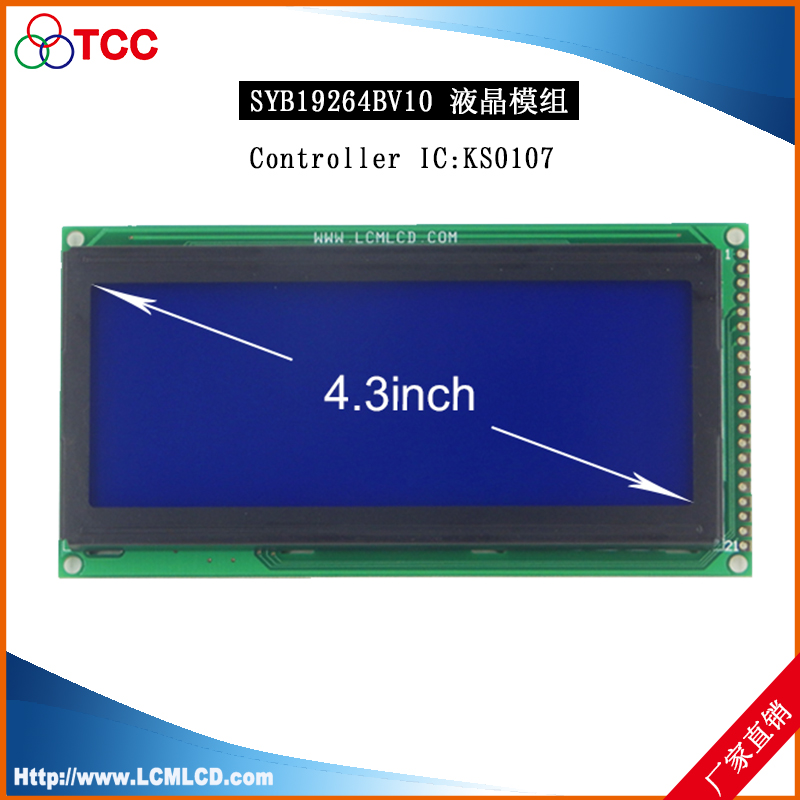

SYB19264BV10  192x64 120.0x62.0x12.5 104.0x39.0 0.468x0.459 VDD:5.0V STN/Blue/Negative/Transmissive KS0107 图片

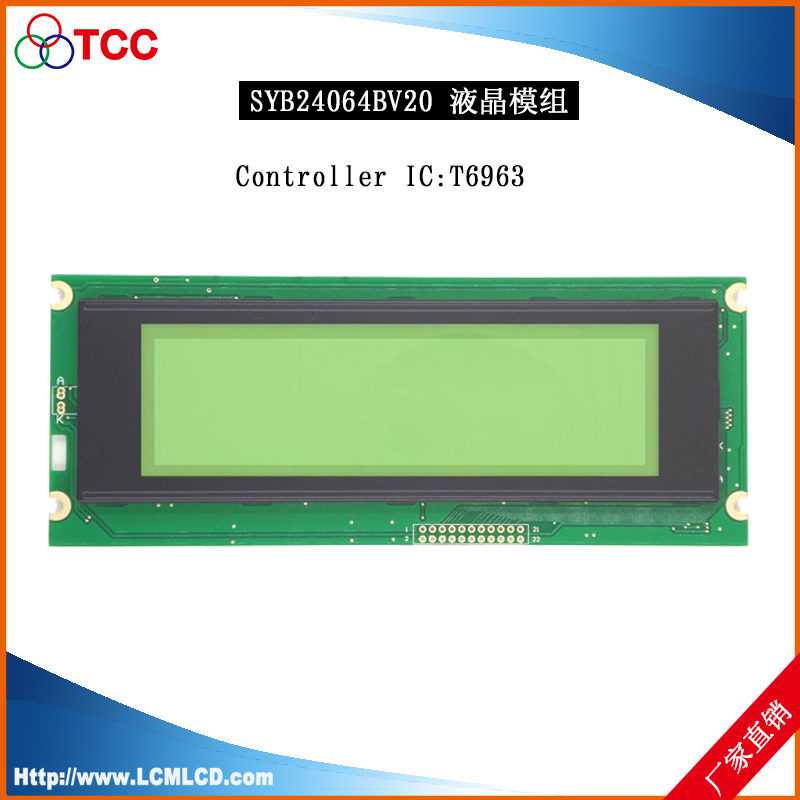

SYB24064BV20  240x64 180.0x70.0x13.0 132.6x39.0 0.49x0.49 VDD:5.0V STN/Blue/Negative/Transmissive T6963 图片

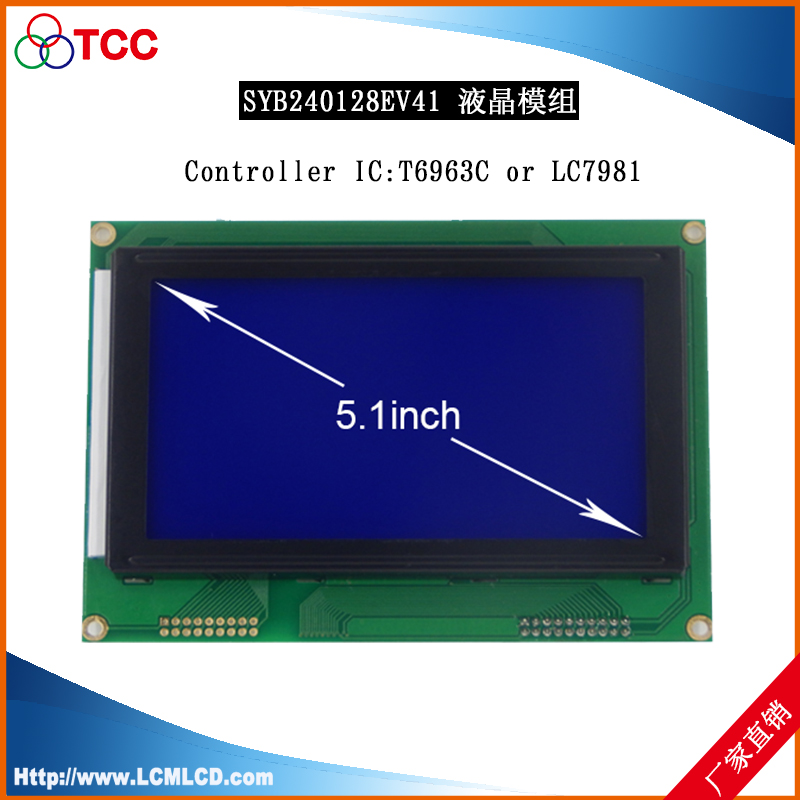

SYB240128EV41  240x128 144.0x104.0x14.0 121.4x63.5 0.42x0.42 VDD:5.0V STN/Blue/Negative/Transmissive T6963 or LC7981 图片

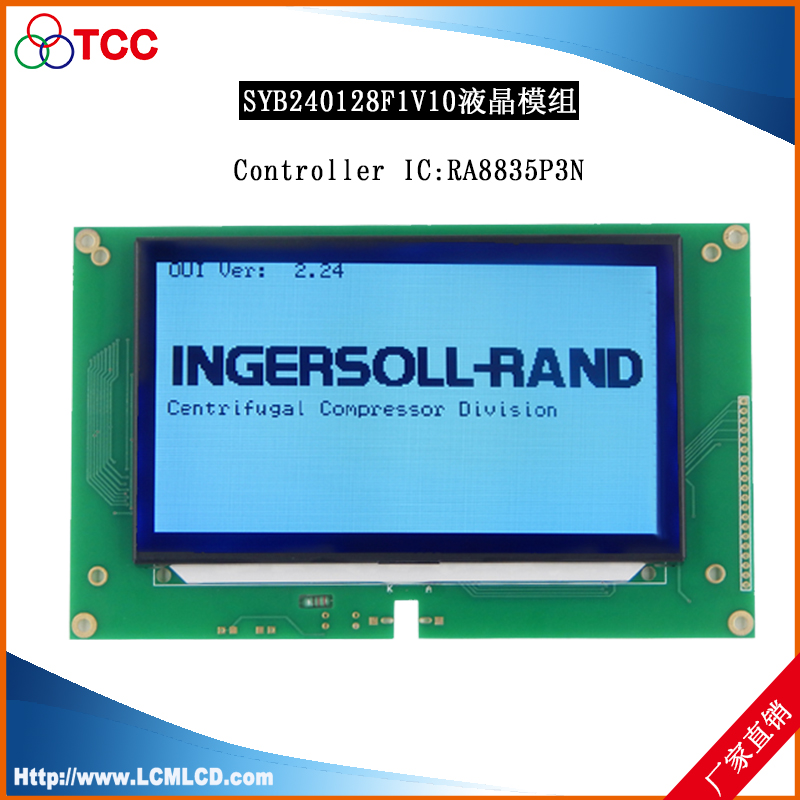

SYB240128F1V10  240x128 180.0x110.0x13.0 127.8x73.8 0.47x0.47 VDD:5.0V STN/Negative/Transmissive RA8835AP3N 图片

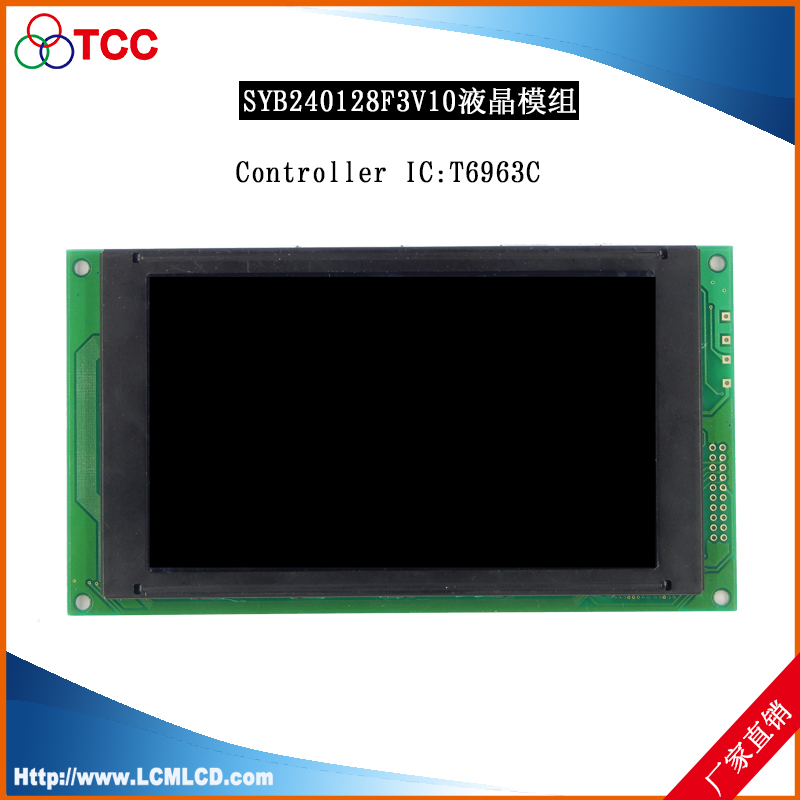

SYB240128F3V10  240x128 170.0x93.0x11.9 128.0x75.0 0.47x0.47 VDD:5.0V FSTN/Negative/Transmissive T6963C 图片

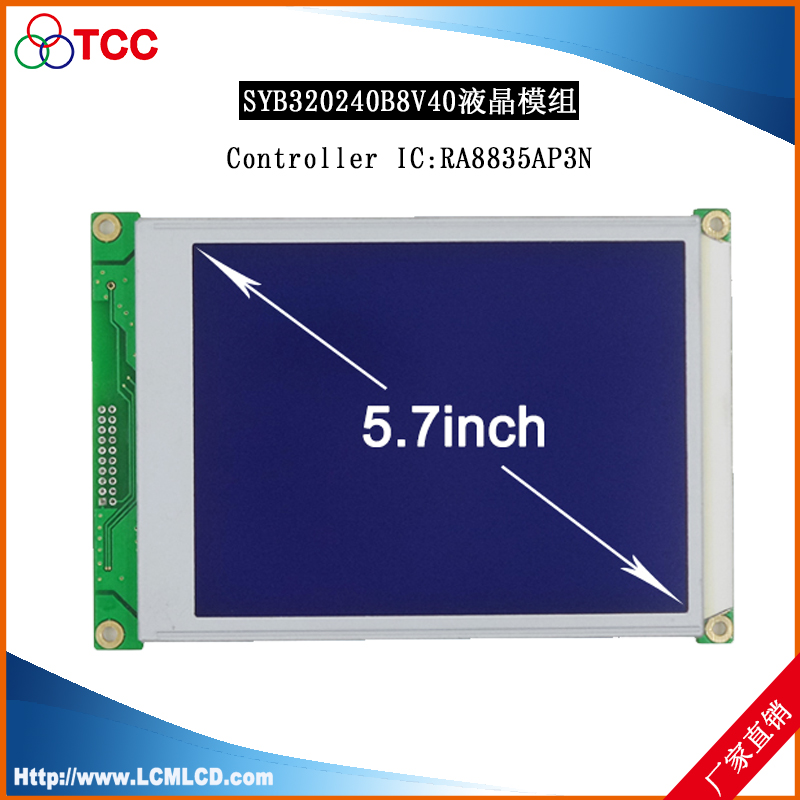

SYB320240B8V40  320x240 160.0x109.0x11.0 122.0x92.0 0.33x0.33 VDD:5.0V STN/Blue or FSTN/Negative/Transmissive RA8835AP3N 图片

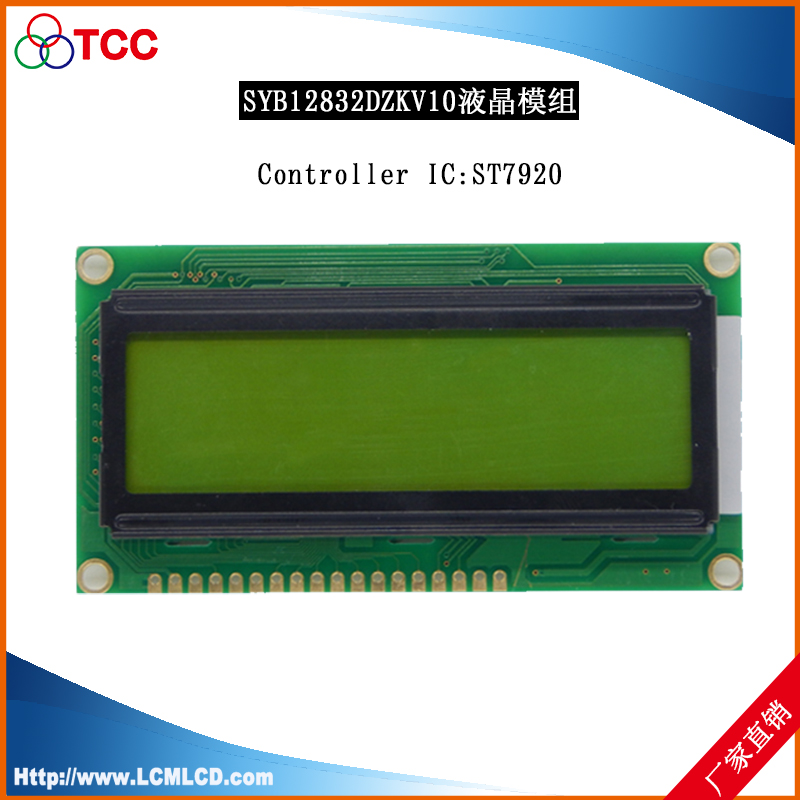

SYB12832DZKV10  128x32 84.0x44.0x14.2 70.0x20.0 0.48x0.48 VDD:5.0V STN/Blue/Negative/Transmissive ST7920 图片

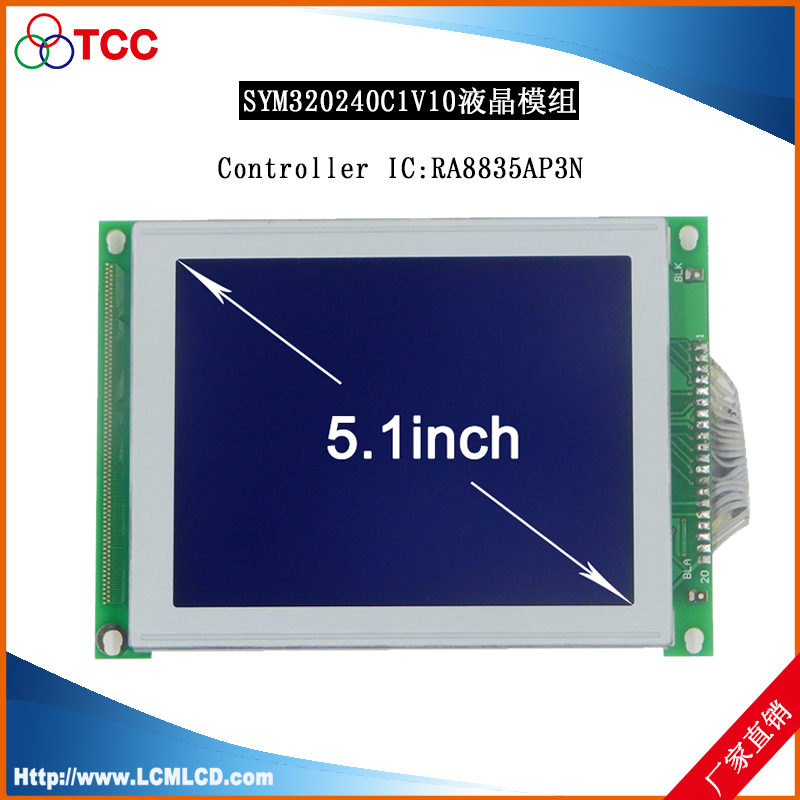

SYM320240C1V10  320x240 139.0x100.0x13.0 103.0x79.0 0.27x0.27 VDD:5.0V STN/Blue/Negative/Transmissive RA8835AP3N 图片

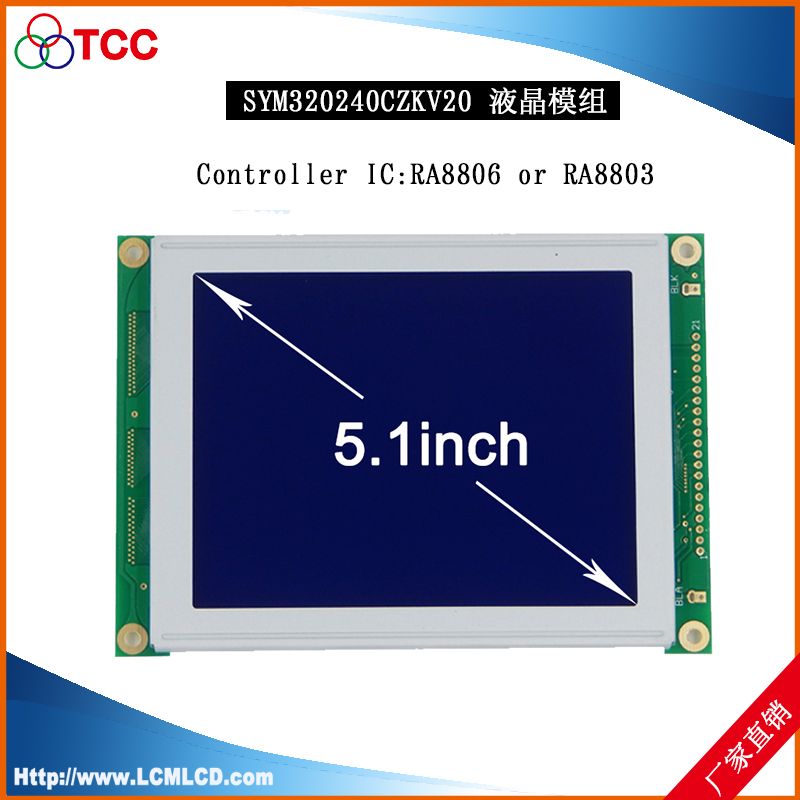

SYM320240CZKV20  320x240 139.0x100.0x13.0 103.0x79.0 0.27x0.27 VDD:5.0V STN/Blue/Negative/Transmissive RA8806 or RA8803 图片
SYM320240GV10(灰膜)  320x240 148.0x114.5x13.0 103.0x79.0 0.27x0.27 VDD:5.0V STN/Blue/Negative/Transmissive RA8835AP3N 图片

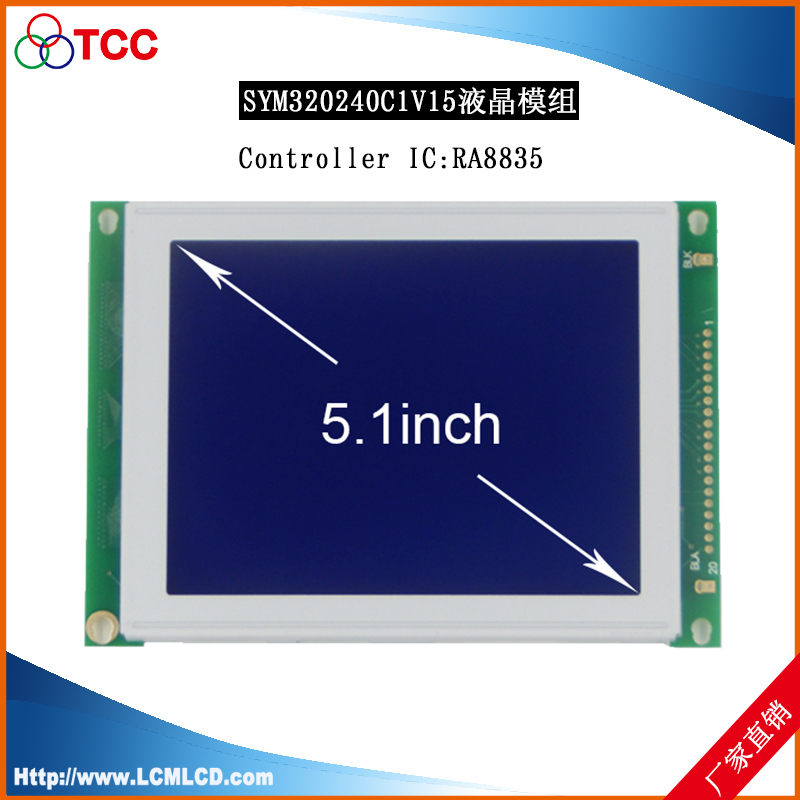

SYM320240C1V15  320x240 139.0x100.0x12.3 103.0x79.0 0.27x0.27 VDD:5.0V STN/Blue/Negative/Transmissive RA8835 图片
SYM320240CV20(绿膜)  320x240 139.0x114.0x13.0 103.0x79.0 0.27x0.27 VDD:5.0V STN Blue or FSTN/Positive/Transmissive RA8835AP3N 图片

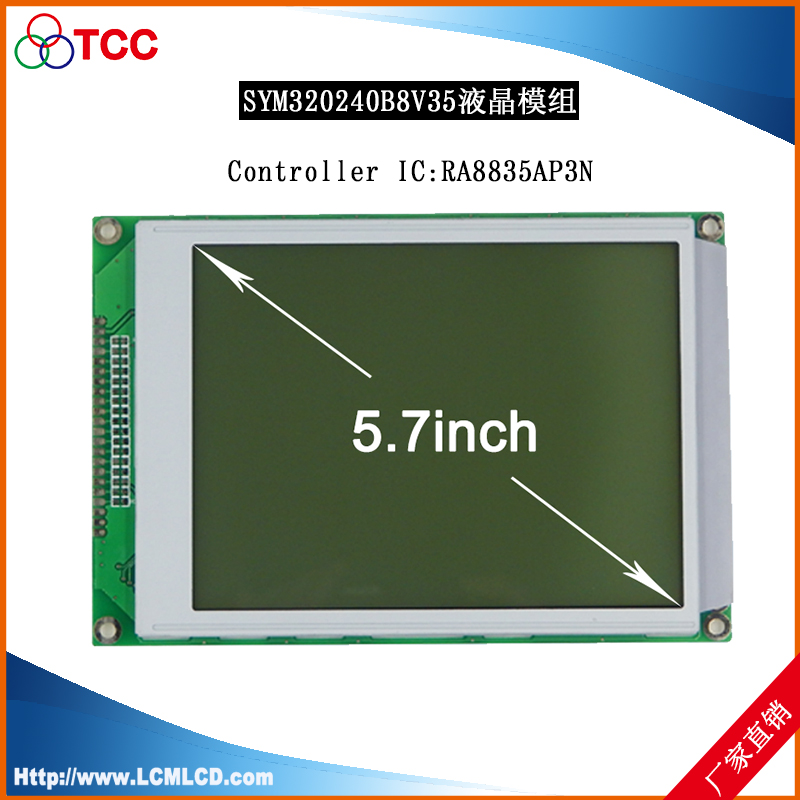

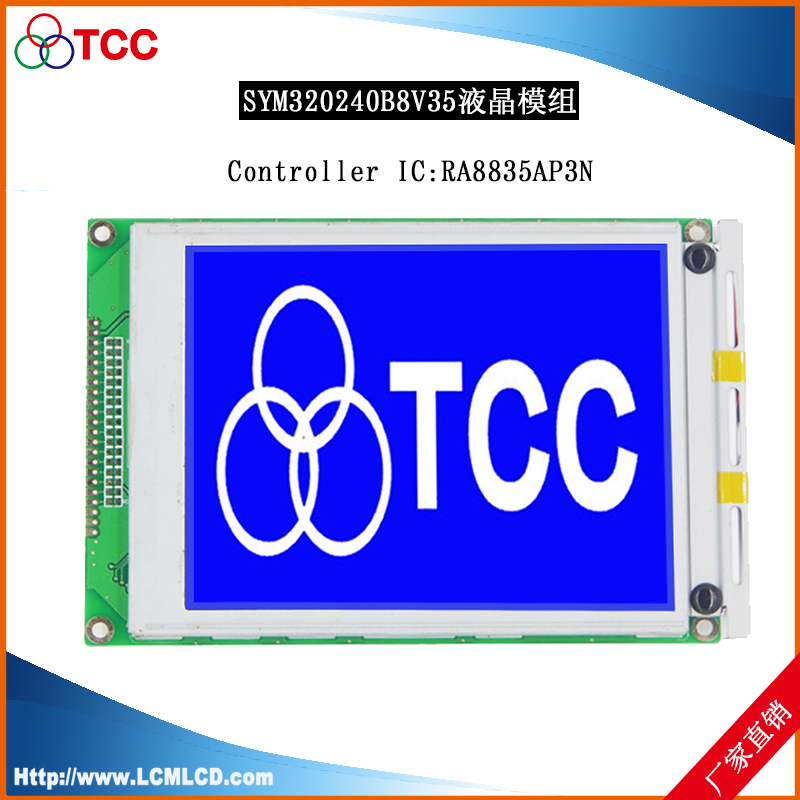

SYM320240B8V35(灰膜)  320x240 160.0x109.0x11.1 122.0x92.0 0.33x0.33 VDD:5.0V STN/Blue/Negative/Transmissive RA8835AP3N 图片
SYM320240B8V35(蓝膜)  320x240 160.0x109.0x11.1 122.0x92.0 0.33x0.33 VDD:5.0V STN/Blue/Negative/Transmissive RA8835AP3N 图片
SYM320240B7V31(黄绿膜)  320x240 160.0x109.0x11.5 122.0x92.0 0.33x0.33 VDD:5.0V FSTN/STN/Blue/Negative/Transmissive RA8835AP3N+TSC2046 图片

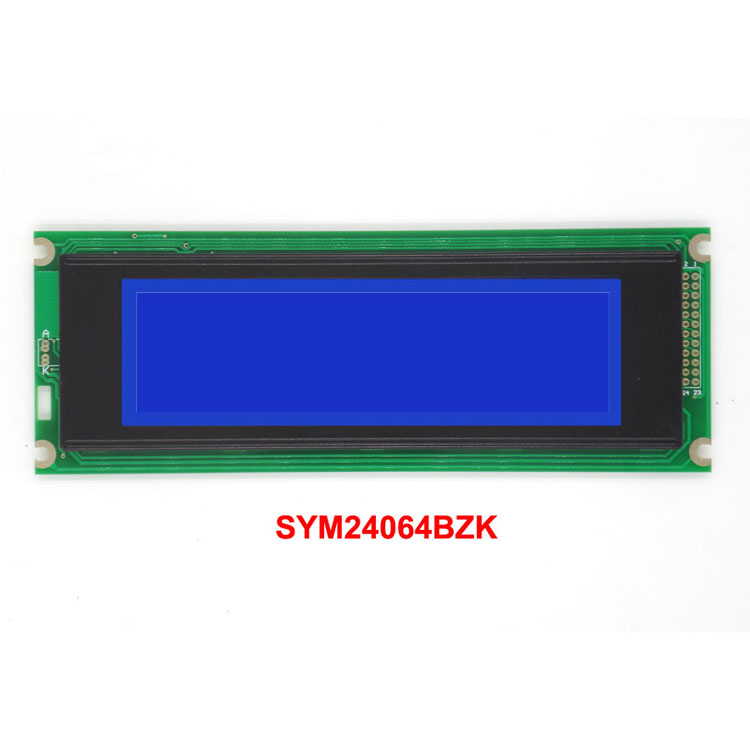

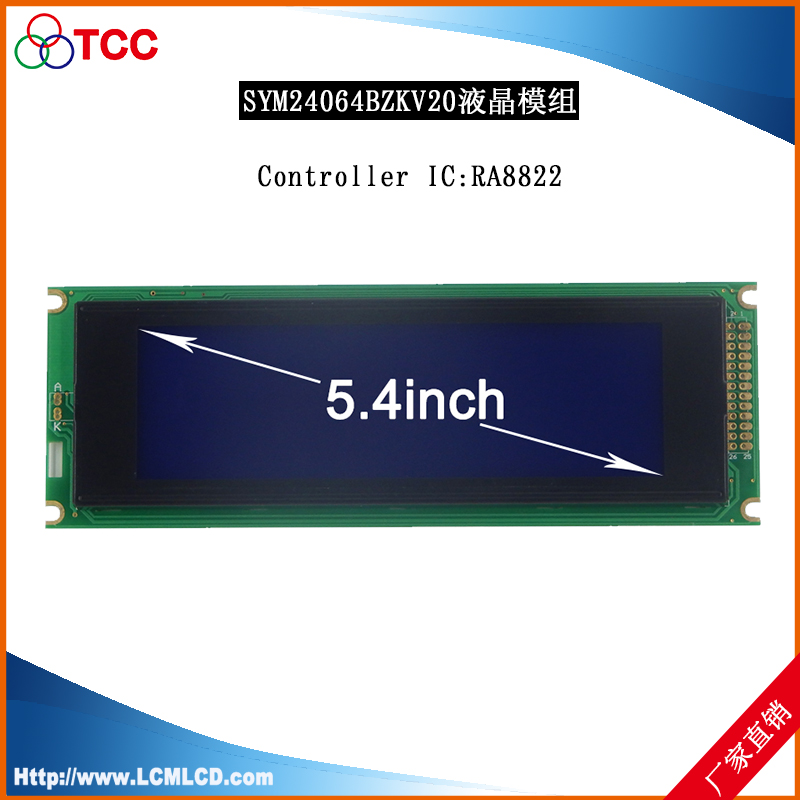

SYM24064BZKV20  240x64 180.0x62.0x11.6 132.0x39.0 0.49x0.49 VDD:5.0V STN/Blue/Negative/Transmissive RA8822 图片
SYM24064BZK11  240x64 180.0x65.0x13.0 132.0x39.0 0.49x0.49 VDD:5.0V STN/Positive/Transflective/YG RA8822 图片

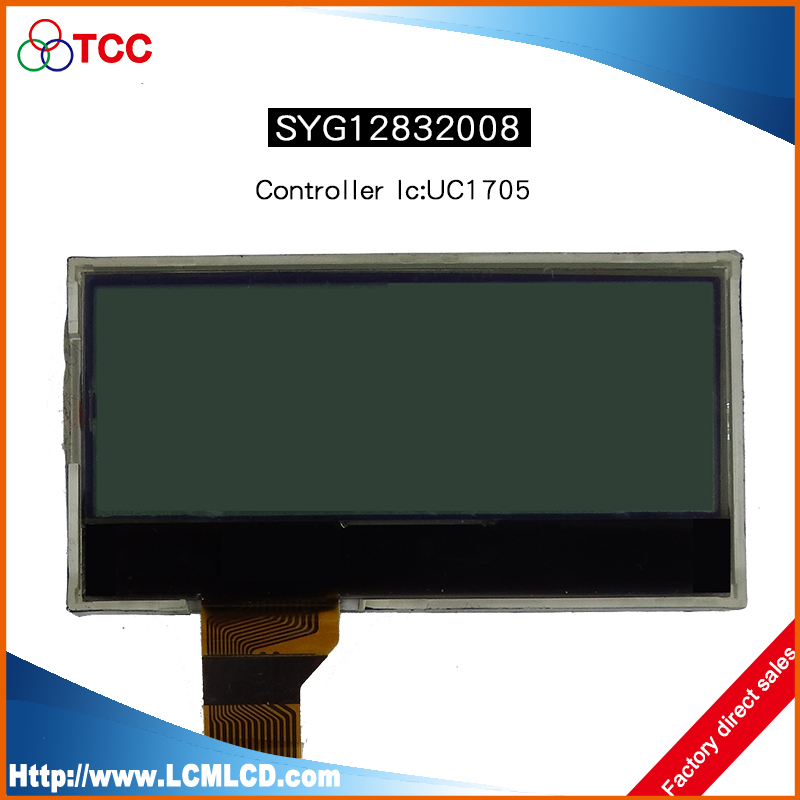

SYG12832008  128x32 52.0x27.5x3.1 46.0x16.0 0.31x0.31 VDD:3.3V FSTN/Positive/Transflective UC1705 图片

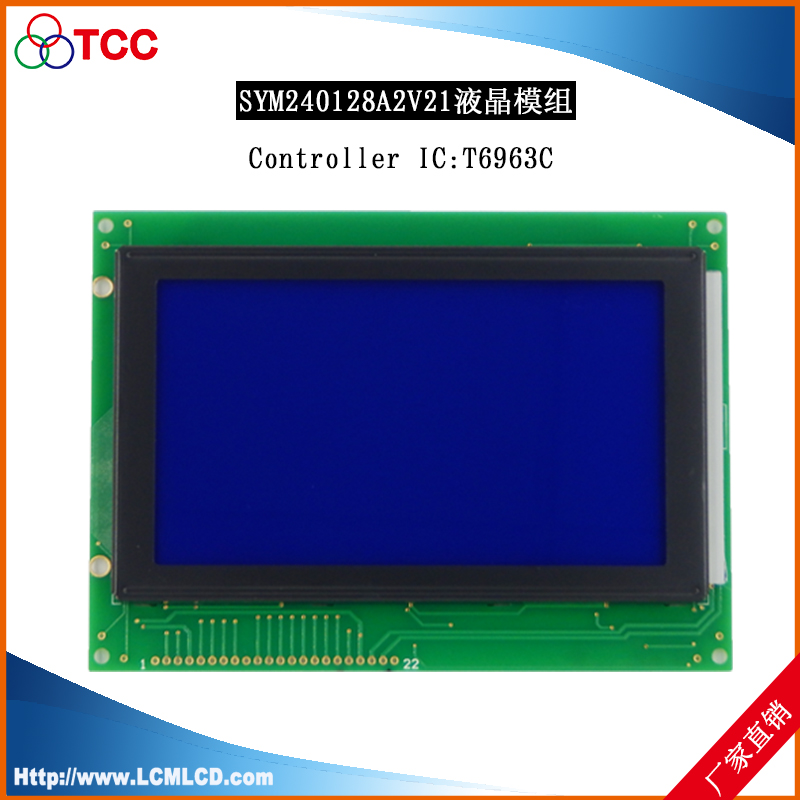

SYM240128A2V21  240x128 144.0x104.0x12.0 114.0x64.0 0.40x0.40 VDD:5.0V STN/Blue/Positive/Transflective T6963 图片
SYM320240B7V12(蓝膜)  320x240 160.0x109.0x11.5 122.0x92.0 0.33x0.33 VDD:5.0V FSTN/STN/Blue/Negative/Transmissive RA8835AP3N+TSC2046 or ADS7843 图片
SYM320240B7V13(蓝膜)  320x240 160.0x109.0x11.1 122.0x92.0 0.33x0.33 VDD:5.0V FSTN/STN/Blue/Negative/Transmissive RA8835AP3N+TSC2046 图片
12864666V10  128*64 93.0*70.0*12.5 72.0*40.0 0.48*0.48 3.3v/5v LED AIP31020/1 图片

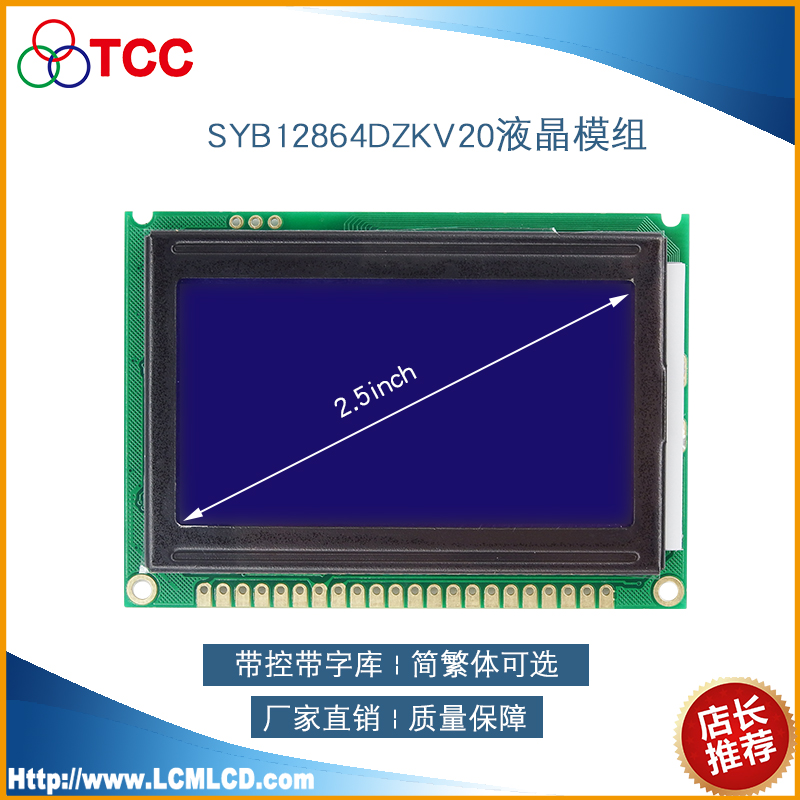

SYB12864DZKV20  128*64 75*52.8*9 60*32.6 0.4*0.4 5V LED AIP31020orST7920 图片
SYB12232AYV11  122*32 84.0*44.0*13.0 60.0*18.0 0.40*0.45 3.3v/5v LED SBN1661G 图片
SYM240128HV30  240*128 159.4*101.25*11 124*70 0.47*0.47 5V LED T6963 图片

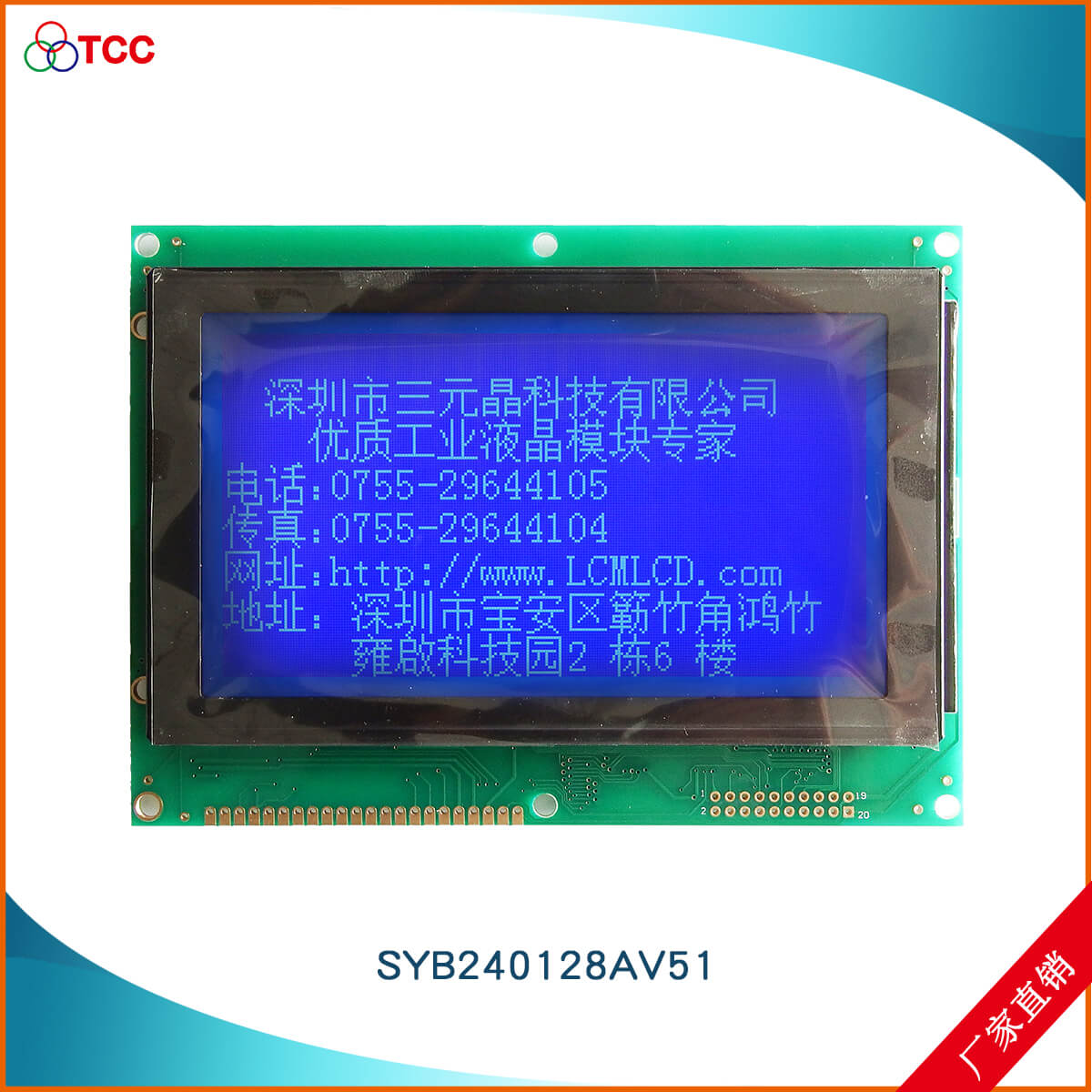

SYB240128AV51  240*128 144.00*104.00*12.00mm 114.00*64.00mm 0.42*0.42 mm VDD:5.0V Edge White LED T6963C or UCL6963 图片
SYM24064BV12  240*64 180.00*65.00*12.50 132.60*39.00 0.49*0.49 VDD:5.0v Array,Y-G T6963 or RA6963 图片
SYM320240B8V20  320*240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 3.3V5V LED 8835 图片
SYB240128AV21  240*128 144.0*104*12.5 114.0*64.0 0.40*0.40 3.3V/5V LED 6963 图片
SYM320240B7V351  320*240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 3.3V5V LED 8835 图片
19264-999  192*64 130.0*65.0*12.5 104.0*39.0 0.458*0.458 5V LED AIP31107 图片
240128-888V21  240*128 144.0*104.0*12.0 114.0*63.7 0.42*0.42 5V LED 6963 图片
12864-888  128*64 93.0*70.0*12.5 72.0*40.0 0.48*0.48 5V LED AIP31107 图片

- 带控制器版本

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

- 内置字库版本

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

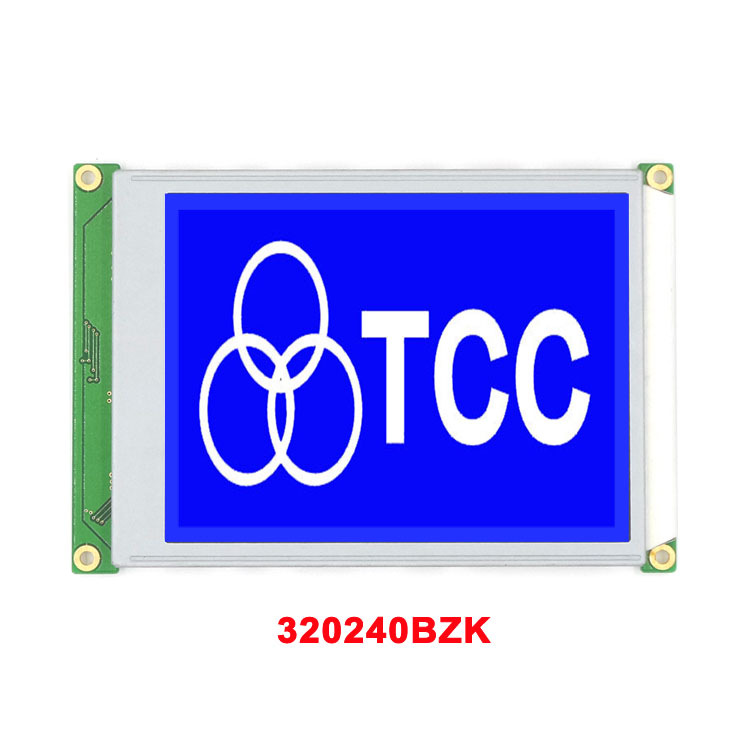

320240BZKB31  320240 160.0*109.0*11.0 122.0 x 92.0 0.33 x 0.33 5V LED RA8806 图片

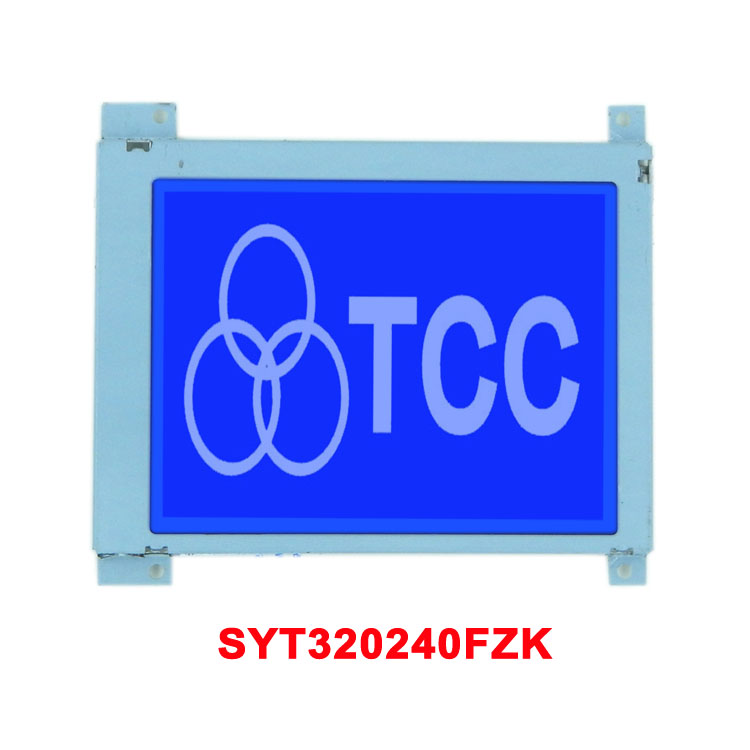

SYT320240FZKV20  320240 94.0*66.6*8.5 78.8*59.6 0.23*0.23 5V LED RA8803\RA8806 图片

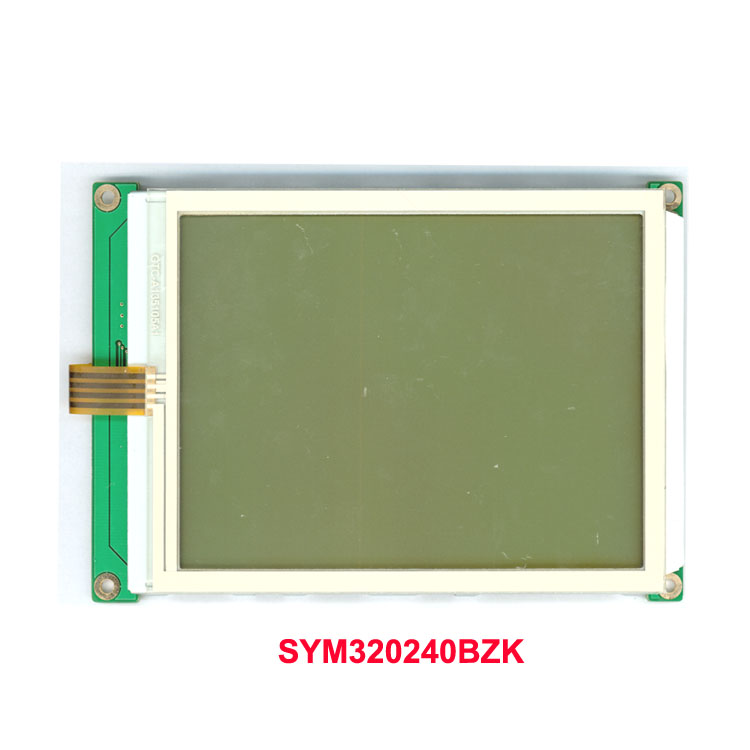

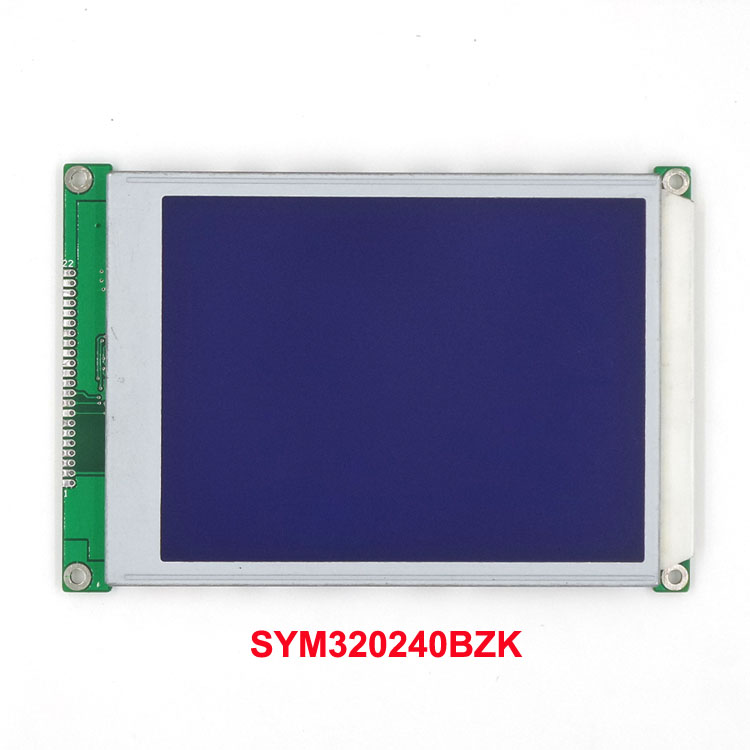

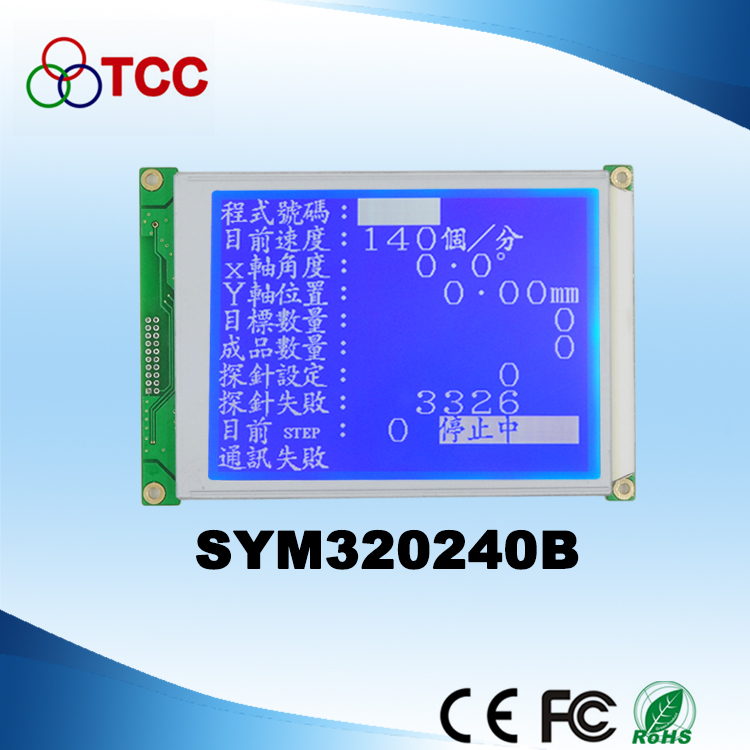

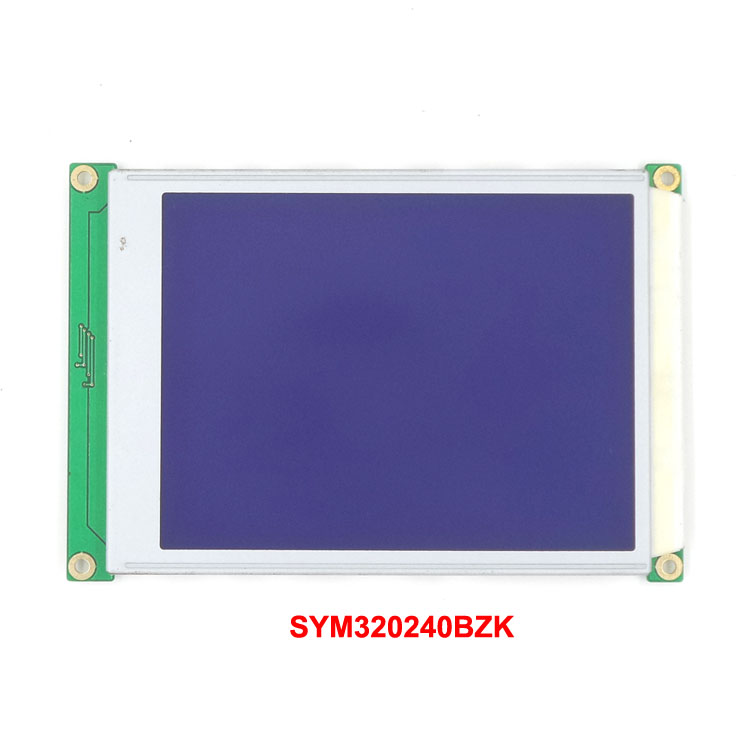

SYM320240BZKV33  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8803\RA8806 图片
SYM320240BZKV30  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8803\RA8806 图片
SYM320240BZKV20  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8803\RA8806 图片
SYM320240BZKV13  320240 160.0*109.0*11.0 122.0*92.0 0.33*0.33 5Vor3.3V LED/CCFL RA8803\RA8806 图片

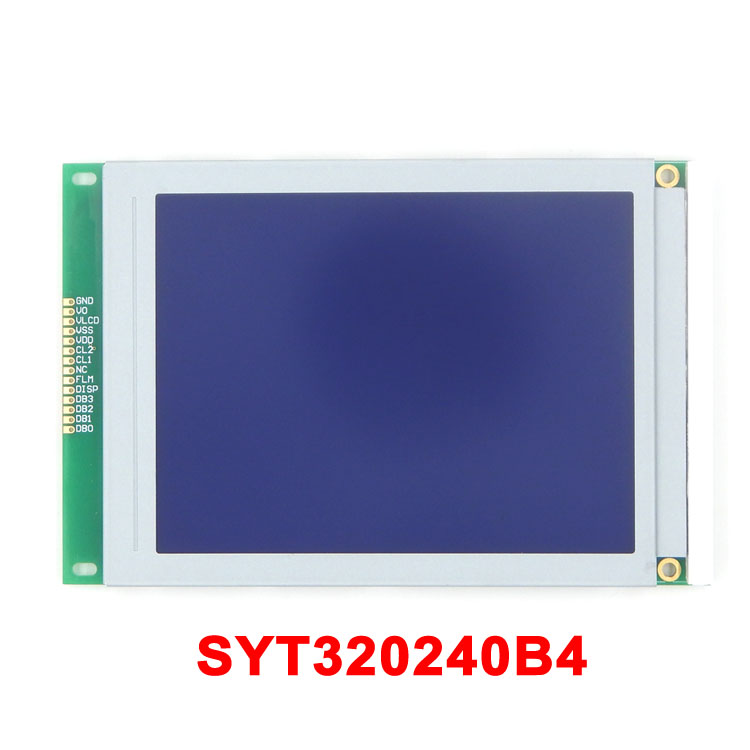

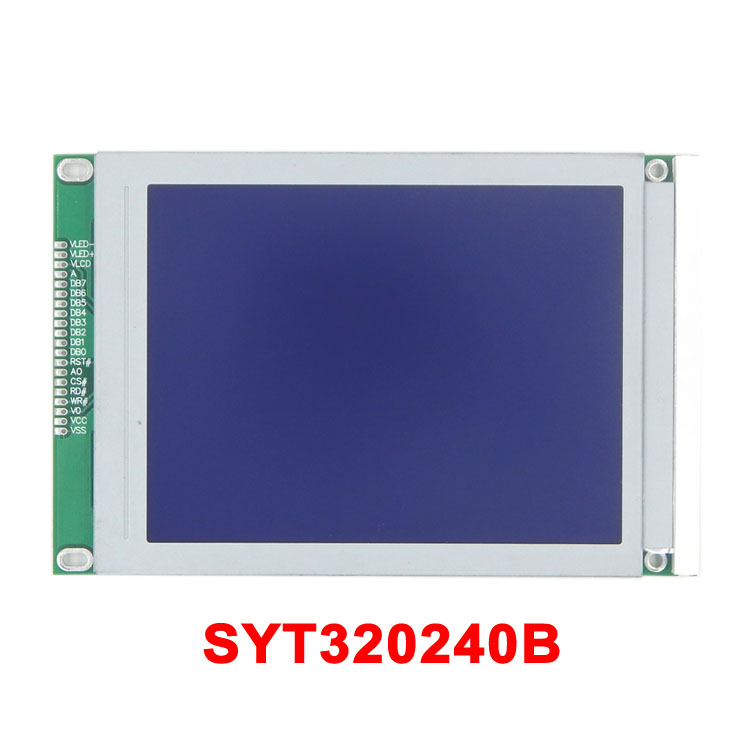

SYT320240B4V30  320240 167.0*109.0*8.6 122.0*92.0 0.33*0.33 5V LED/CCFL RA8806\S1D13700 图片
SYT320240B4V20  320240 167.0*109.0*8.6 122.0*92.0 0.33*0.33 5V LED/CCFL RA8835 图片
SYM240128IZKV10  240x128 140.0*82.0*14.0 121.4*63.5 0.42*0.42 5Vor3.3V LED RA8806 图片

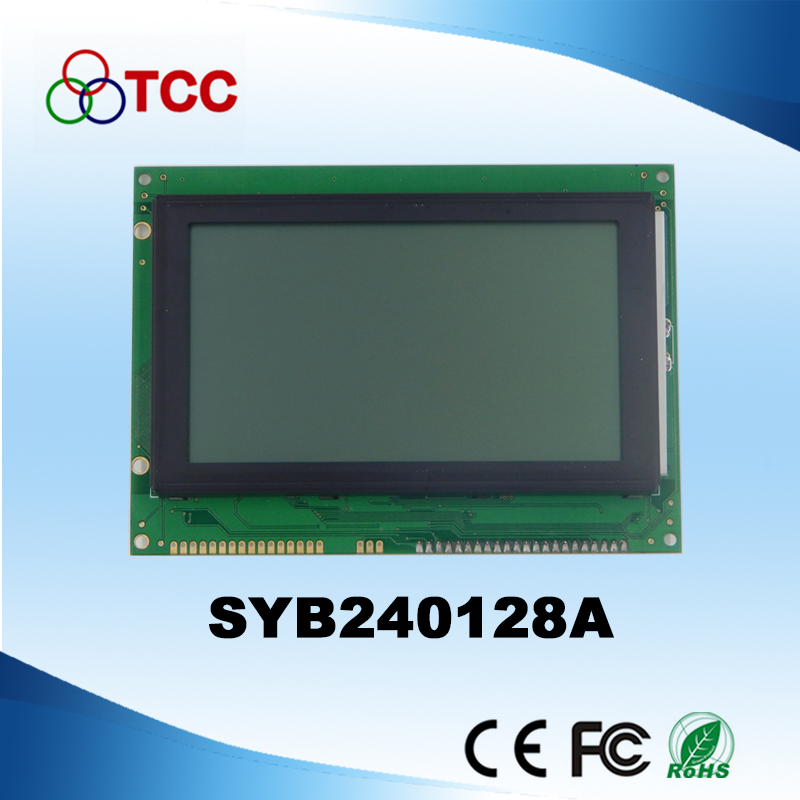

SYB240128AZKV80  240128 144.0×104.0×13.0 114.0×64.0 0.40×0.40 5Vor3.3V LED RA8822 图片
SYB240128AZKV70  240128 144.0×104.0×13.0 114.0×64.0 0.40×0.40 5Vor3.3V LED RA8822 图片
SYB240128AZKV31  240x128 144.0x 104x13.0 114.0x64.0 0.40x0.40 5Vor3.3V LED RA8822 图片

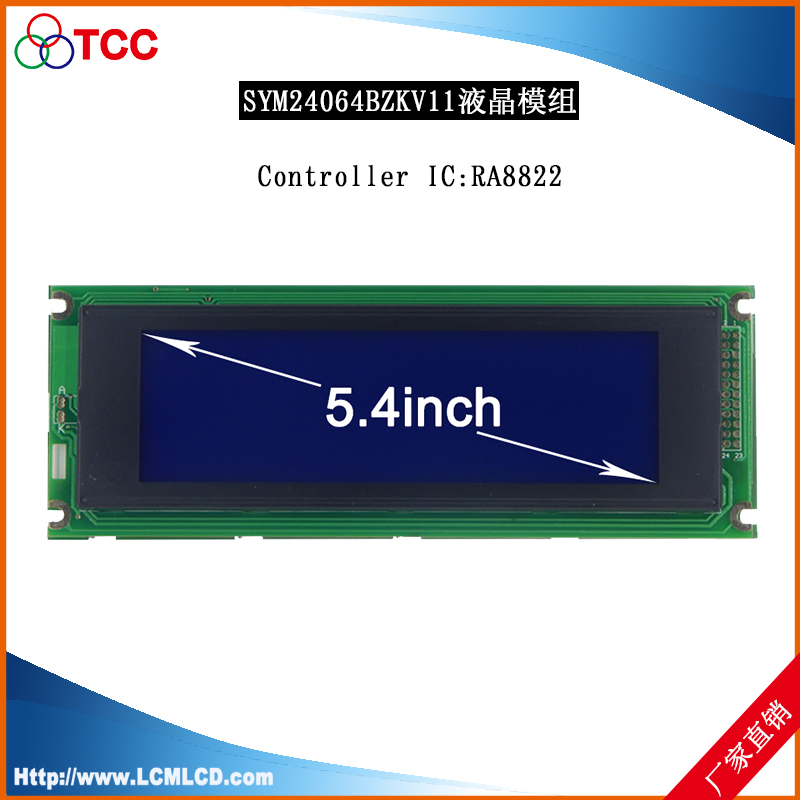

SYM24064BZKV11  24064 180.0*65.0*13.5 132.6*39.0 0.49*0.49 5V LED RA8822 图片

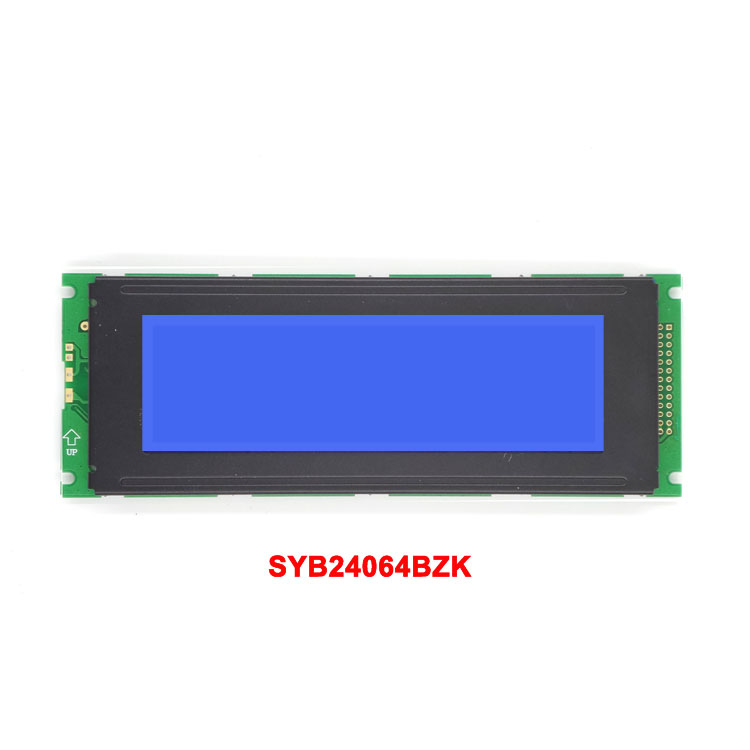

SYB24064BZKV32  24064 180.0*65.0*13.5 132.6*39.0 0.48*0.48 5V LED RA8822 图片
SYB12864K5V20  128x64 93.0*70.0*14 72.0*39.0 0.48*0.48 5Vor3.3V LED ST7920 图片

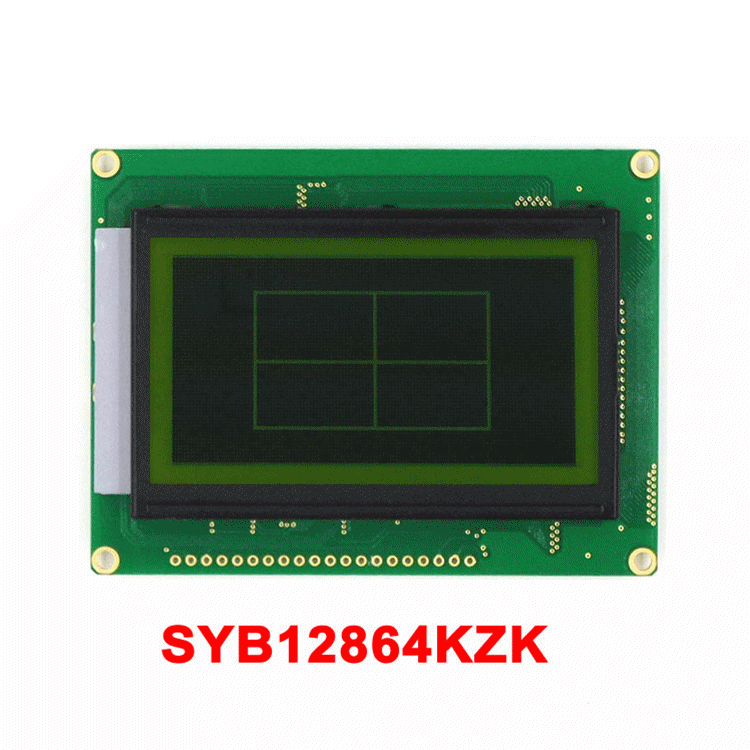

SYB12864KZKV15  12864 93.0*70.0*12.5 72.0*39.0 0.48*0.48 5Vor3.3V LED ST7920 图片

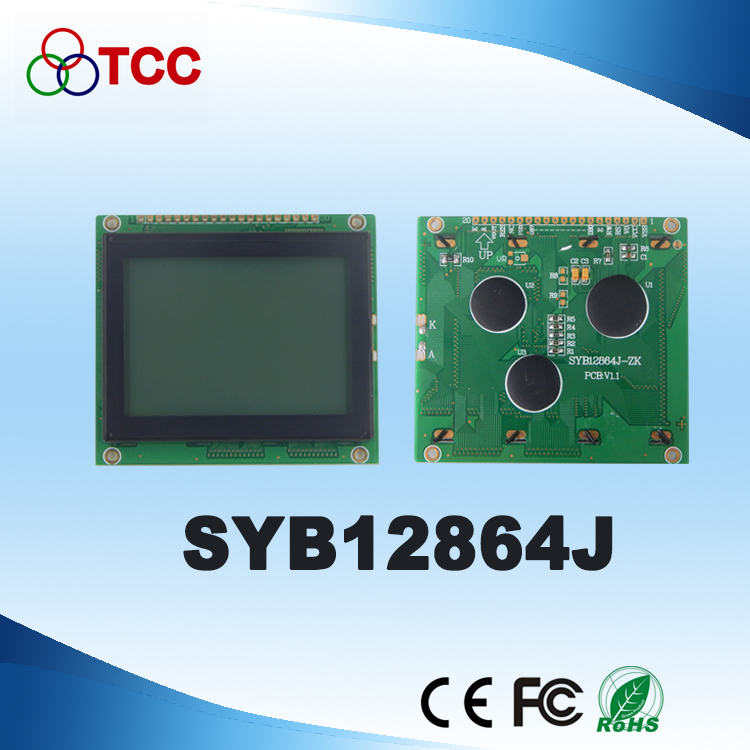

SYB12864JZKV11  12864 78*70*12 62.0*44.0 0.39*0.44 3.3v,5v LED ST7920,ST7921 图片
SYB12864AZKV20  12864 113.0*65.0*13.0 73.4*38.80 0.46*0.46 5Vor3.3V LED ST7920 图片

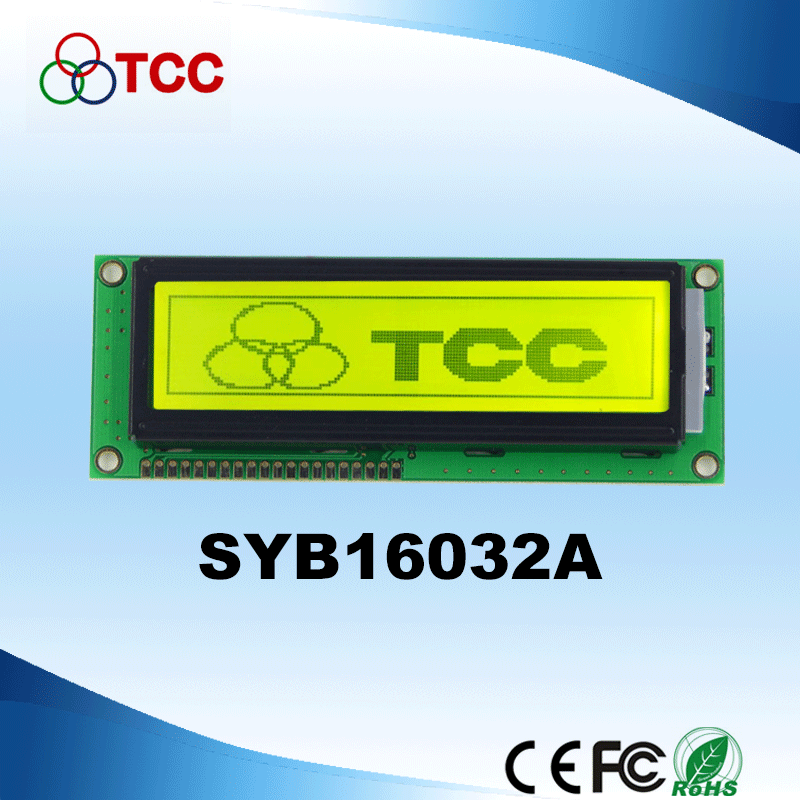

SYB16032AZKV20  16032 122.0*44.0*13.0 99.0*24.0 0.55*0.55 5Vor3.3V LED ST7920 图片

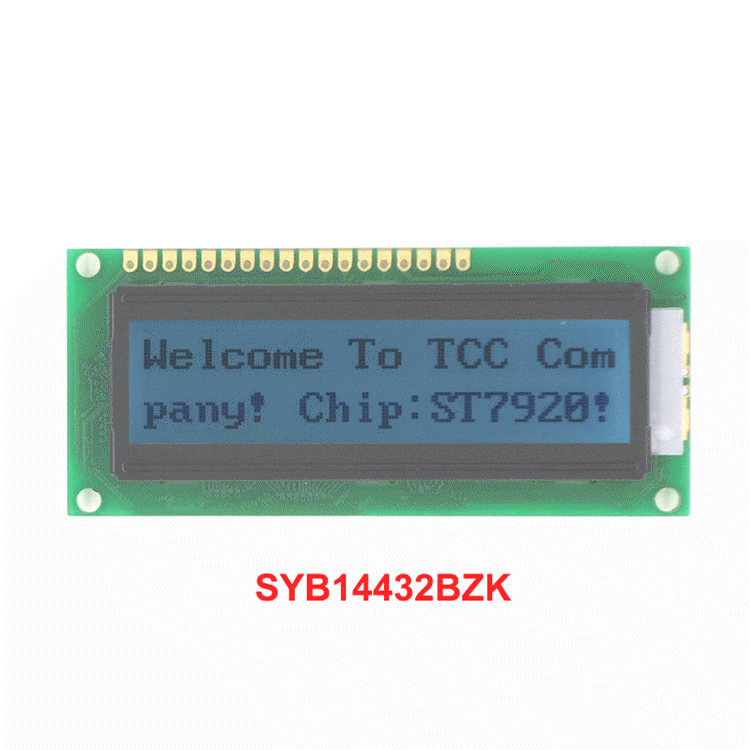

SYB14432BZKV10  14432 80.8*35*11.5 64.0*16.0 0.39*0.39 5Vor3.3V LED ST7920 图片

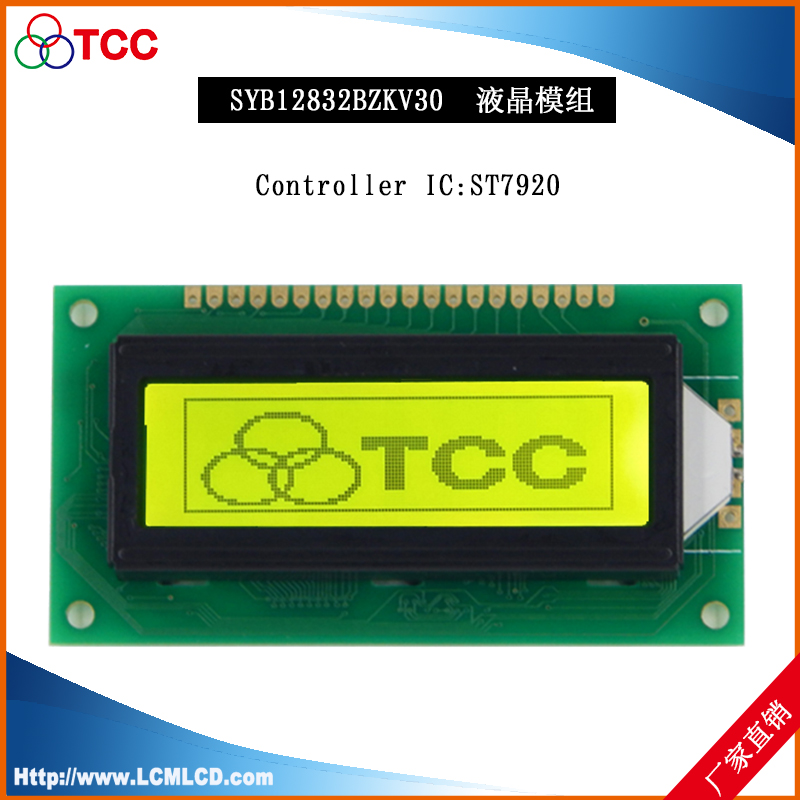

SYB12832BZKV30  12832 80.6*42.8*13.0 60.0*18.0 0.36*0.41 5Vor3.3V LED ST7920 图片
SYB12232AZKV11  12232 84.0*44.0*12.5 60.0*18.0 0.36*0.42 5V LED ST7920 图片

- 不带控制器版本

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

字符型模块

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片
SYB1202AV10  1202 55.7*32.0*12.8 46.0*15.5 0.45*0.60 5V LED SPLC780D 图片
SYB2004AV12  2004 98.0*60.0*14.0 76.0*25.2 0.55*0.55 5Vor3.3V LED SPLC780D 图片
SYB2004AV10  2004 98.0*60.0*14.0 76.0*25.2 0.55*0.55 5Vor3.3V LED SPLC780D 图片
SYB0802BV10  0802 40.0*35.5*6 30.0*14.0 0.49*0.49 5Vor3.3V LED SPLC780D 图片

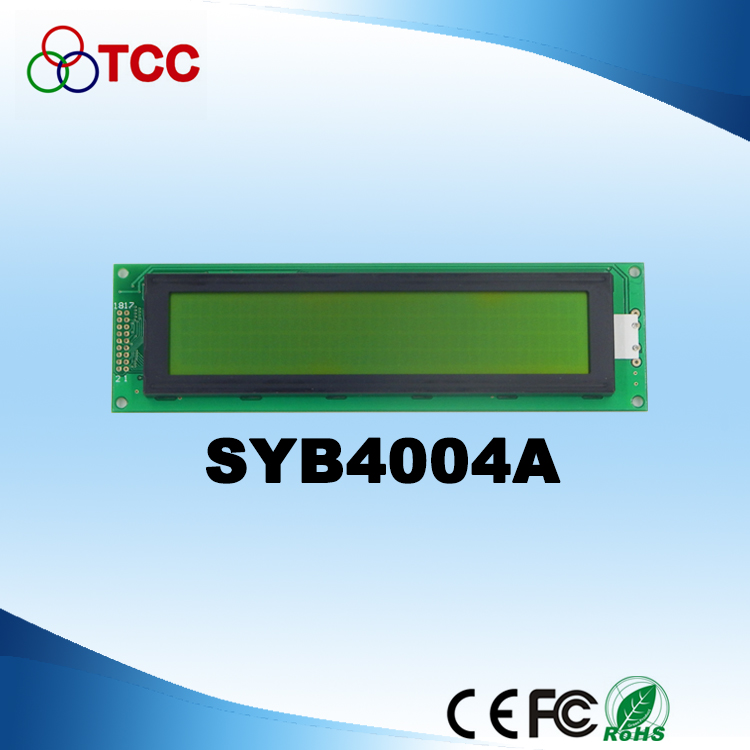

SYB4004AV21  40x4 190.0*54.0*14.0 149.0*23.3 0.50*0.55 5V LED SPLC780D 图片
SYB2402AV10  2402 118.0*36.0*14.0 95.0*17.0 0.60*0.65 5V LED SPLC780D 图片

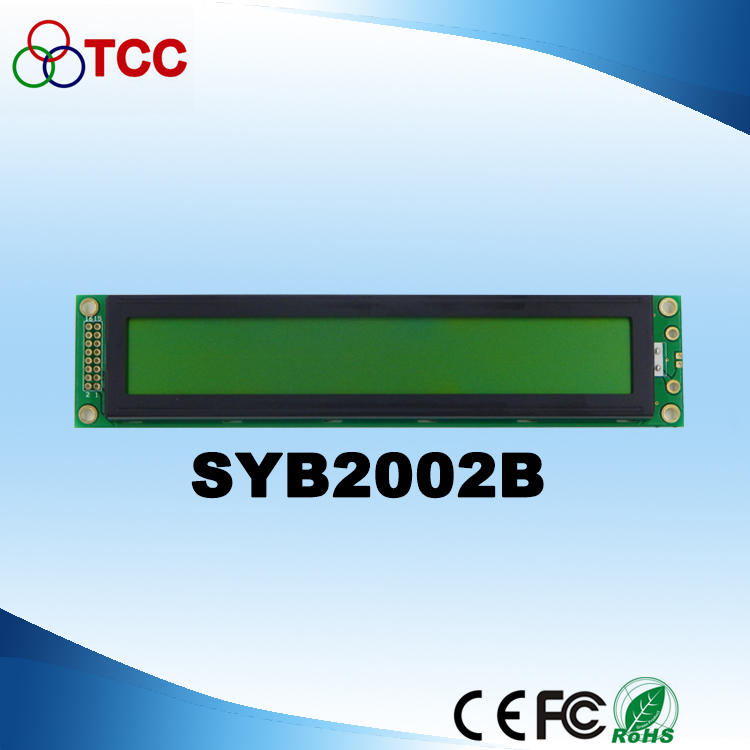

SYB2002BV20  2002 180.0*40.0*14.0 149.0*23.0 1.10*1.10 5Vor3.3V LED SPLC780D 图片
SYB2002BV11  2002 180.0*40.0*14.0 149.0*23.0 1.10*1.10 5Vor3.3V LED SPLC780D 图片

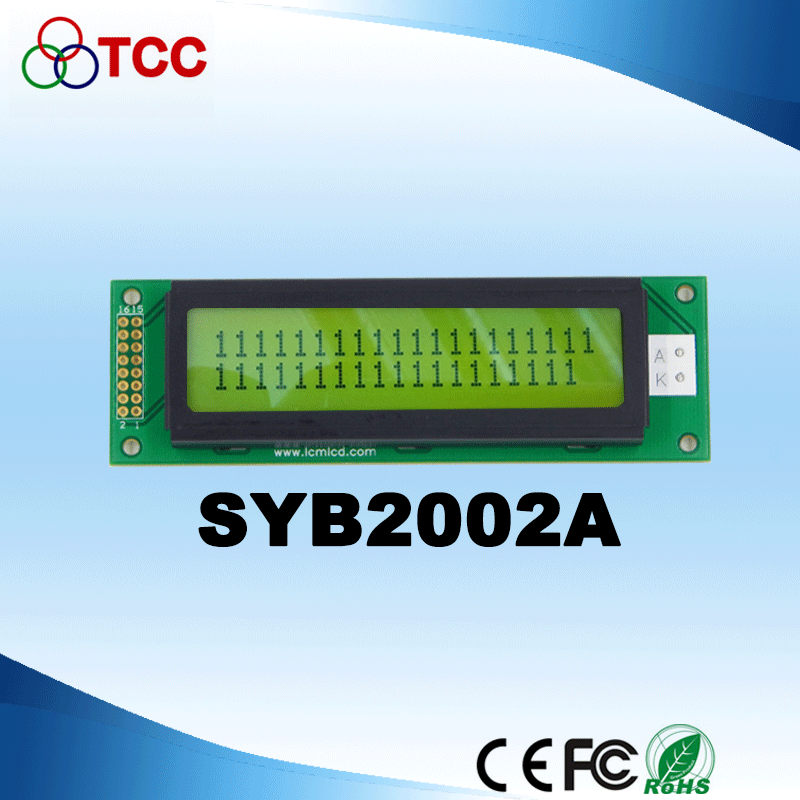

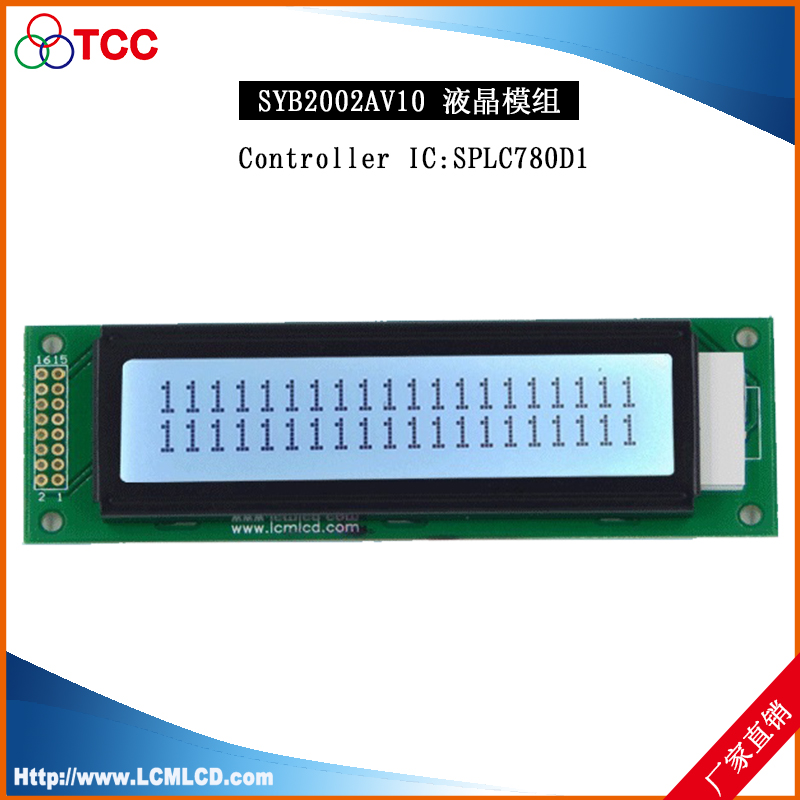

SYB2002AV10  2002 116.0*37.0*14.0 83.0*18.5 0.61*0.63 5V LED SPLC780D 图片
SYB1604CV10  16x4 70.0*58.0*11.0 61.7*25.2 0.55*0.55 5V LED SPLC780D 图片

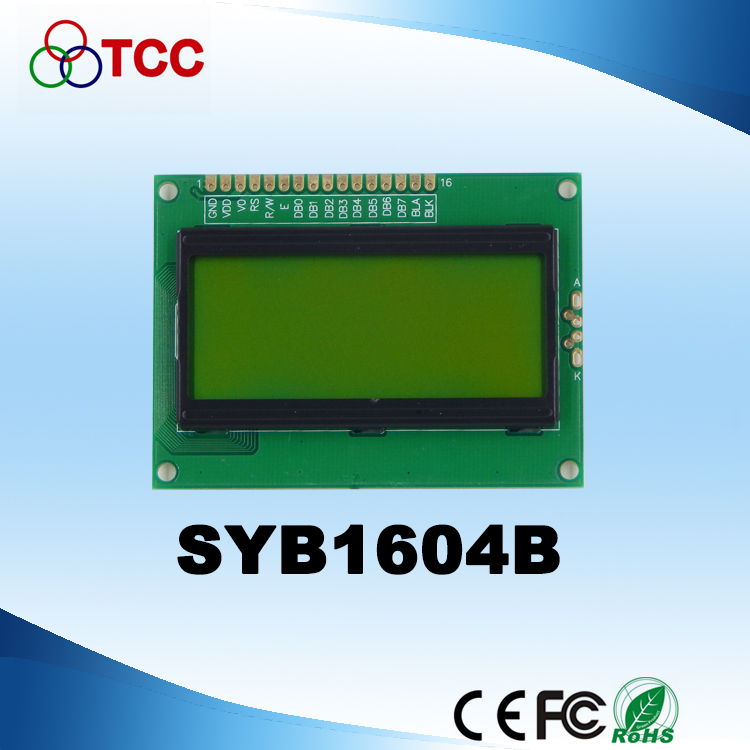

SYB1604BV10  16x4 74.5*55.0*11.0 61.7*25.2 0.55*0.55 5V LED SPLC780D 图片

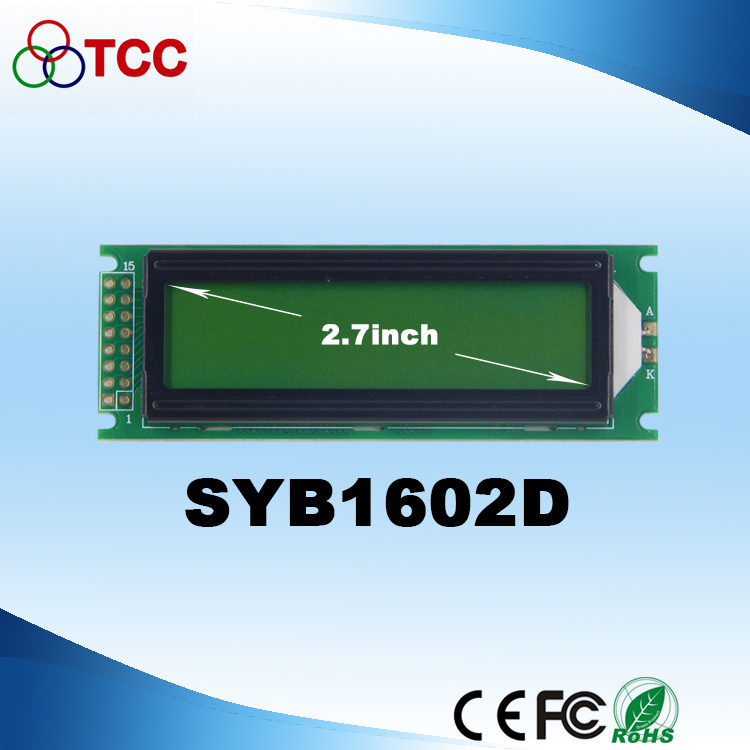

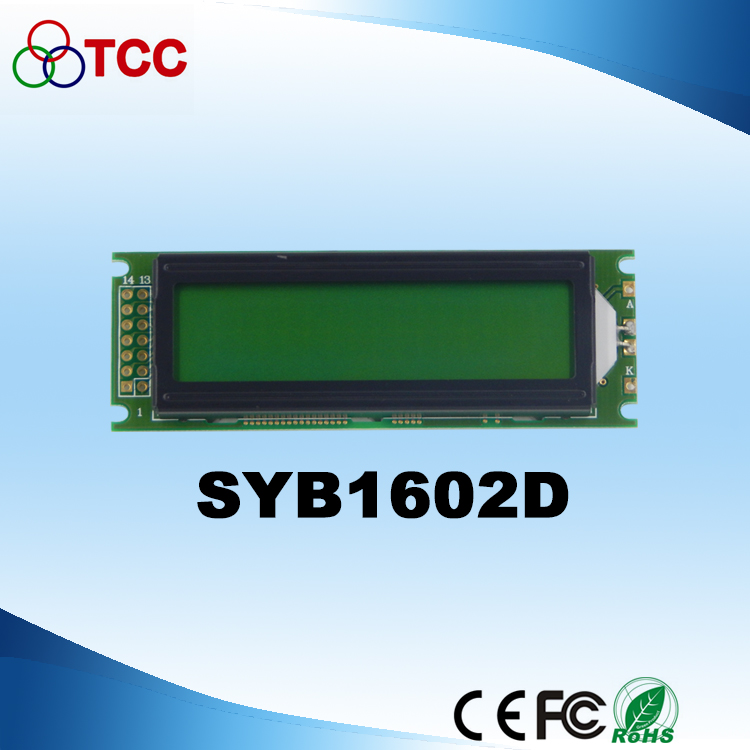

SYB1602DV11  1602 85.0*30.0*12.0 66.0*16.0 0.56*0.66 5Vor3.3V LED SPLC780D 图片
SYB1602DV10  1602 85.0*30.0*12.0 66.0*16.0 0.56*0.66 5Vor3.3V LED SPLC780D 图片

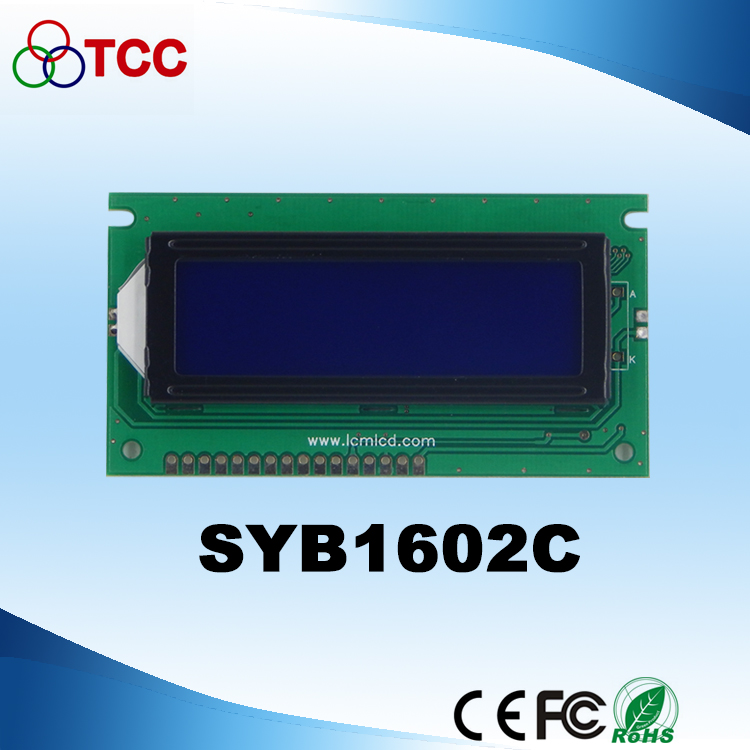

SYB1602C1V10  1602 84.0*44.0*12.3 65.0*17.0 0.56*0.61 5Vor3.3V LED SPLC780D 图片
SYB1602A4V10  1602 80.0*36.0*12.3 62.2*17.9 0.55*0.65 5Vor3.3V LED SPLC780D 图片
SYB1602A3V11  1602 80.0*36.0*12.3 64.5*13.8 0.55*0.50 5Vor3.3V LED SPLC780D 图片

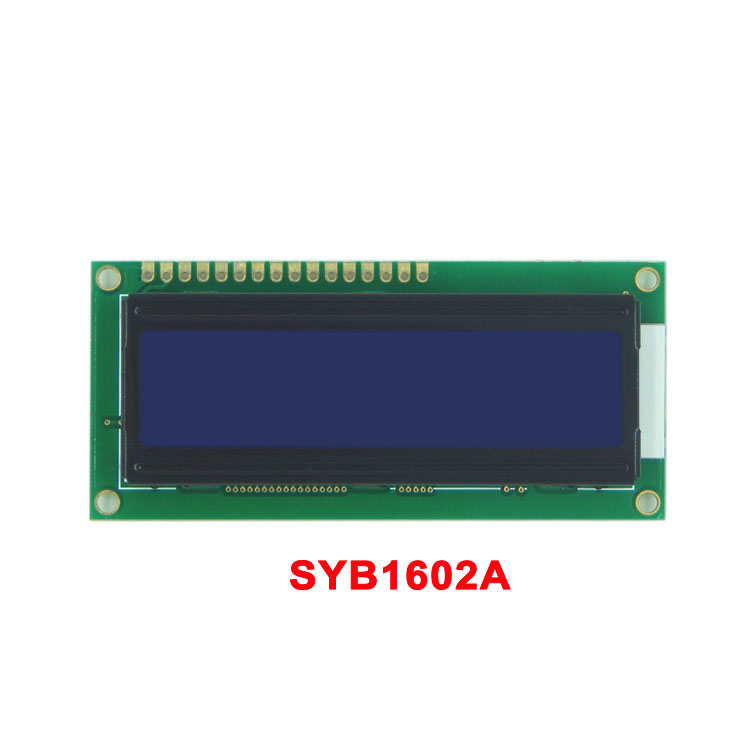

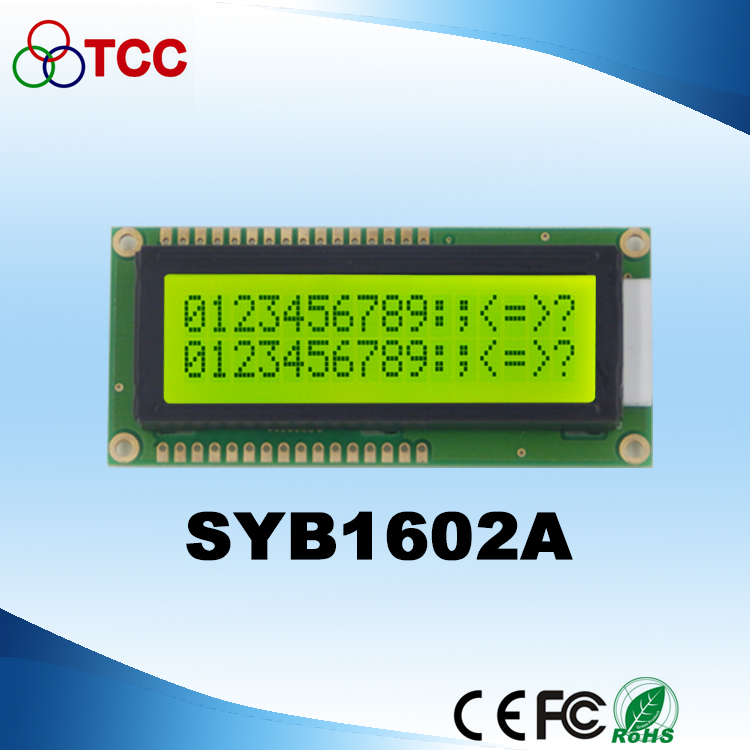

SYB1602A2V10  16x2 80.0*36.0*13.5 62.2*17.9 0.55*0.65 5V LED SPLC780D 图片
SYB1602AV30  1602 80.0*36.0*9.0 66.0*16.0 0.55*0.50 5Vor3.3V LED SPLC780D 图片

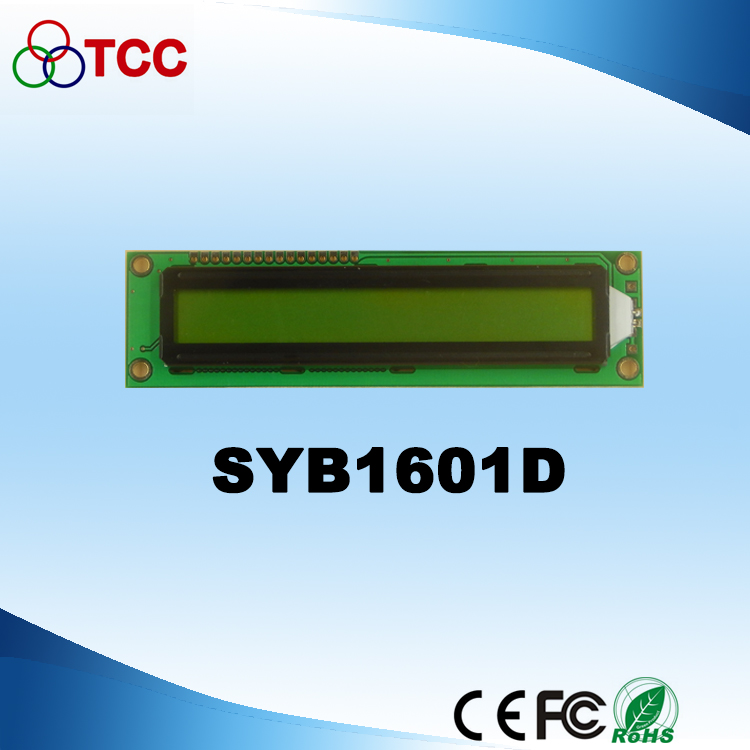

SYB1601DV10  1601 122.0*33.0*11.0 99.0*13.0 0.92*1.12 5Vor3.3V LED SPLC780D 图片

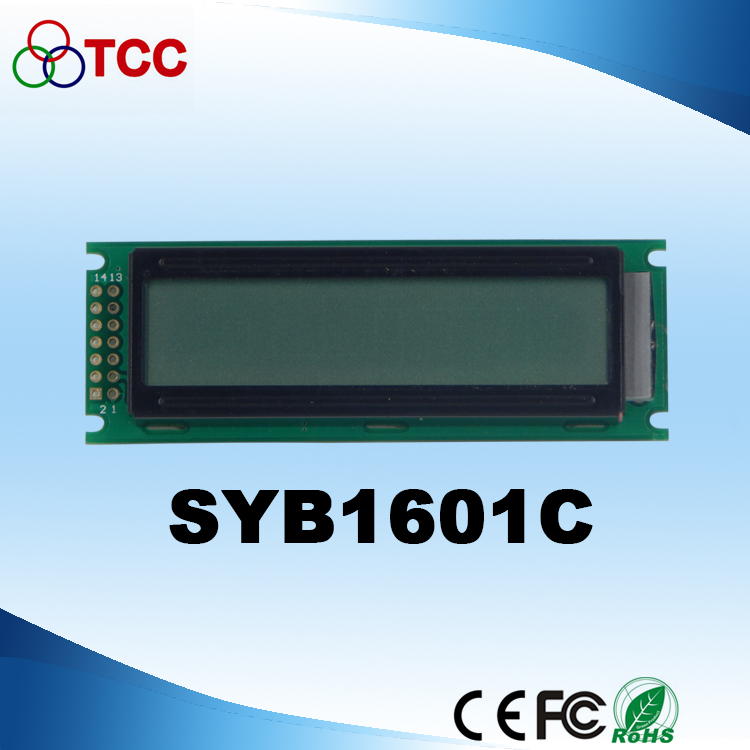

SYB1601CV10  16x1 85.0x30.0x12.3 64 .5x13.5 0.60x0.70 5V or 3.3V LED SPLC780D 图片
SYB1601A2V11  1601 80.0x36.0 64 .0x13.8 0.60x0.70 5Vor3.3V LED SPLC780D 图片

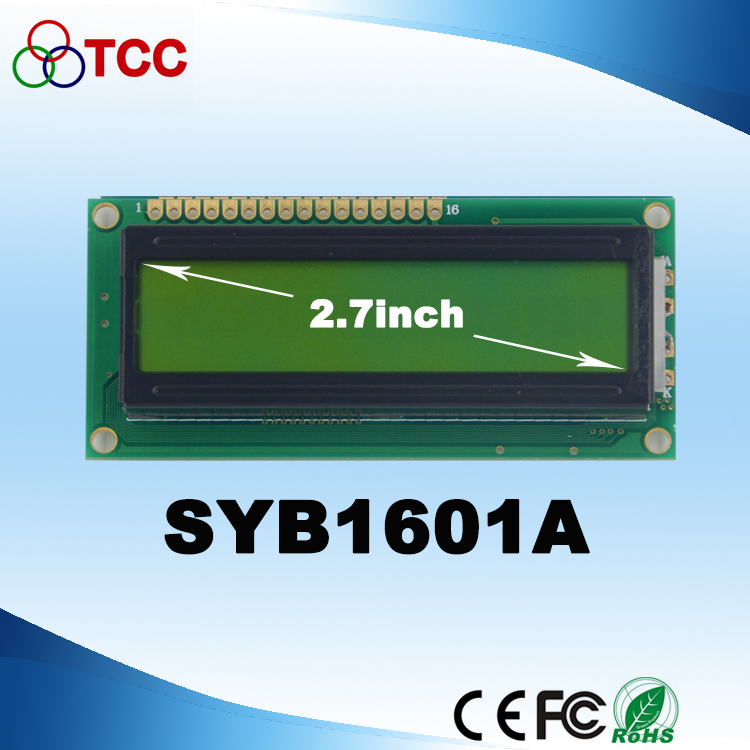

SYB1601A1V10  1601 81.5x37.5x12.3 64 .5x13.5 0.60x0.70 5Vor3.3V LED SPLC780D 图片
SYB0801BV10  8*1 60.5*33.0*11.0 44.0*13.0 0.83*0.93 5Vor3.3V LED SPLC780D 图片
SYB1602HV20  16x2 80.0x36.0x14.0 64.5x13.8 0.55x0.5 VDD:5.0V STN/Positive/Transflective/YG AIP31068 图片
SYB1602DV11(蓝膜)  16x2 85.0X30.0X13.0 66.0X16.0 0.55X0.50 VDD:5.0V STN/Positive/Transflective/YG SPLC780D1 图片

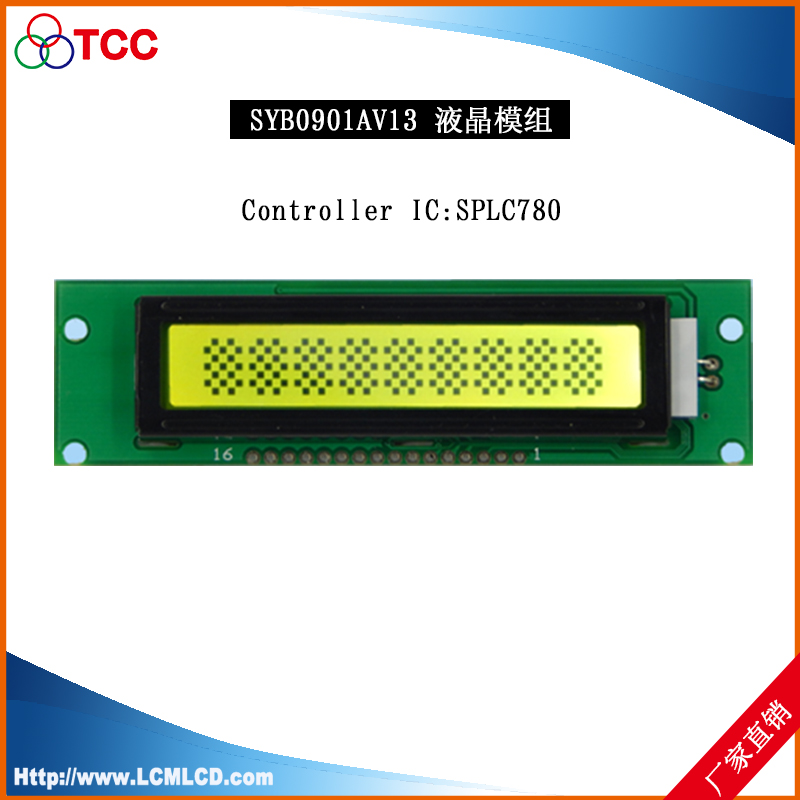

SYB0901AV13  9x1 100.00x27.00x11.35 69.00x13.00 1.05x1.20 VDD:5V Edge,YG LED SPLC780 图片

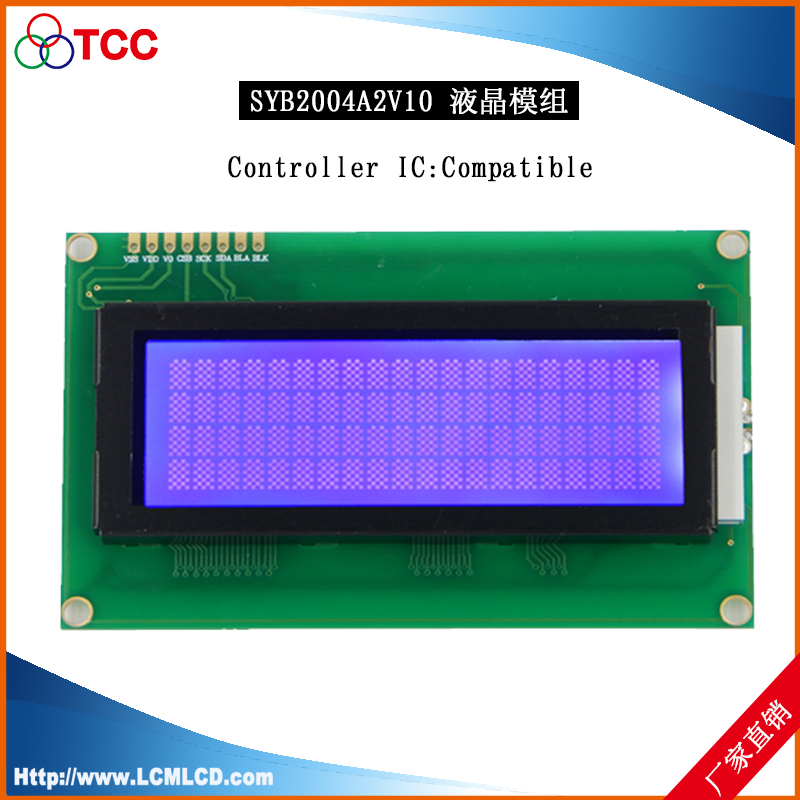

SYB2004A2V10  20x4 98.00x60.00x13.06 77.0x26.3 0.55x0.55 VDD:5.0V STN/Blue/Negative/Transmissive Compatible 图片
SYB2004DV11  20x4 77.0x47.0x12.0 60.0x22.0 0.451x0.42 VDD:5.0V STN/Positive/Transflective/YG SPLC780D1 图片
SYB2002A1V52  20x2 116.0*35.0*13.0 82.90*22.54 0.65*0.60 3.3v/5v可选 Edge,white LED 7066 图片
SYB1602BV11  16x2 122.0x44.0x13.0 99.0x24.0 0.92x1.1 VDD:5.0V STN/Positive/Transflective/YG SPLC780D1 图片

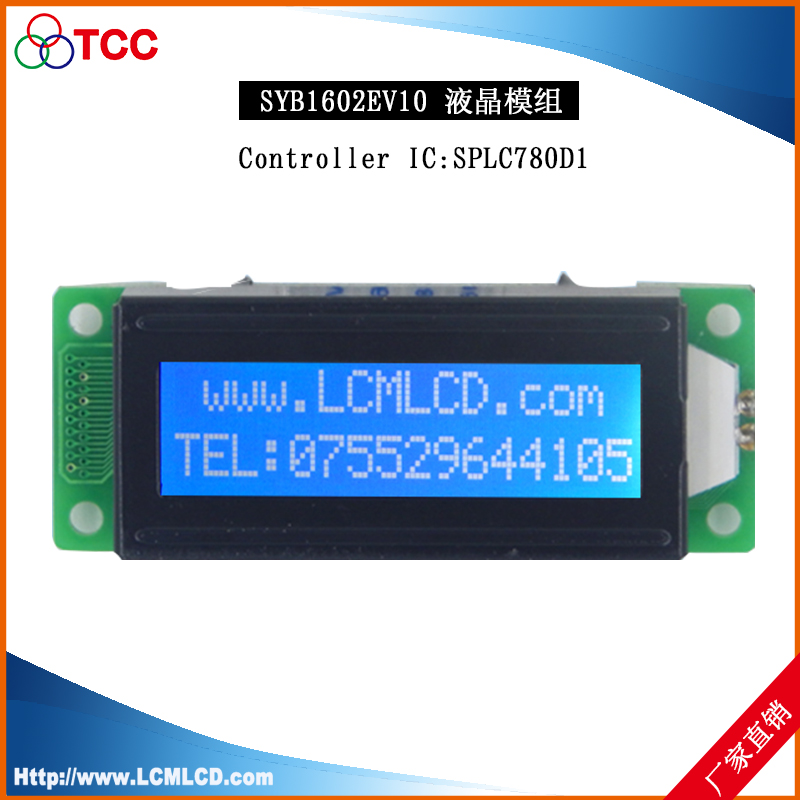

SYB1602EV10(蓝膜)  16x2 53.0x20.0x11.1 36.0x10.0 0.33x0.35 VDD:5.0V LED SPLC780D1 图片
SYB2002AV10(白底黑字)  20x2 116.0x37.0x13.4 83.0x18.5 1.15x1.25 VDD:5.0V STN/Positive/Transflective/YG SPLC780D1 图片

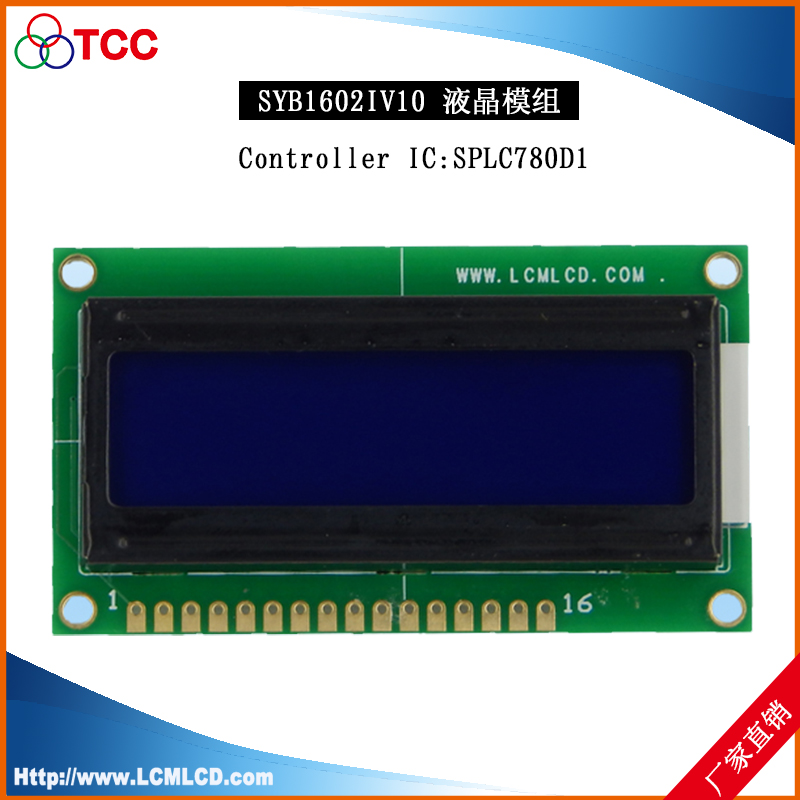

SYB1602IV10  16x2 65.5x36.7x13.5 54.0x14.4 1.41x1.74 Vlcm=3.0V STN/Positive/Transflective/YG SPLC780D1 图片
SYB1602JV11  16x2 100.00x38.80x12.01 80.00x20.50 0.75x0.90 VDD:5.0V STN/Blue/Negative/Transmissive ST7066U-OB 图片

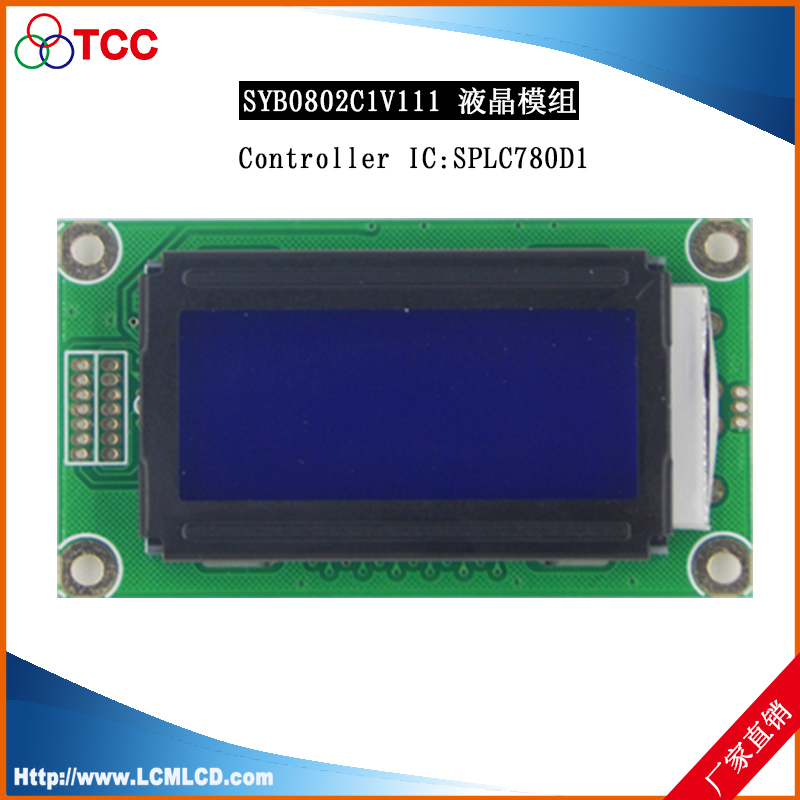

SYB0802C1V111  8x2 58.0x32.0x13.5 38.0x16.0 0.55x0.66 VDD:3.3V Edge White SPLC780D1 图片
SYB1602A4V10  16*2 80.0*36.0*13.2 66.0*16.0 0.55*0.60 3.3v/5v LED SPLC780 图片

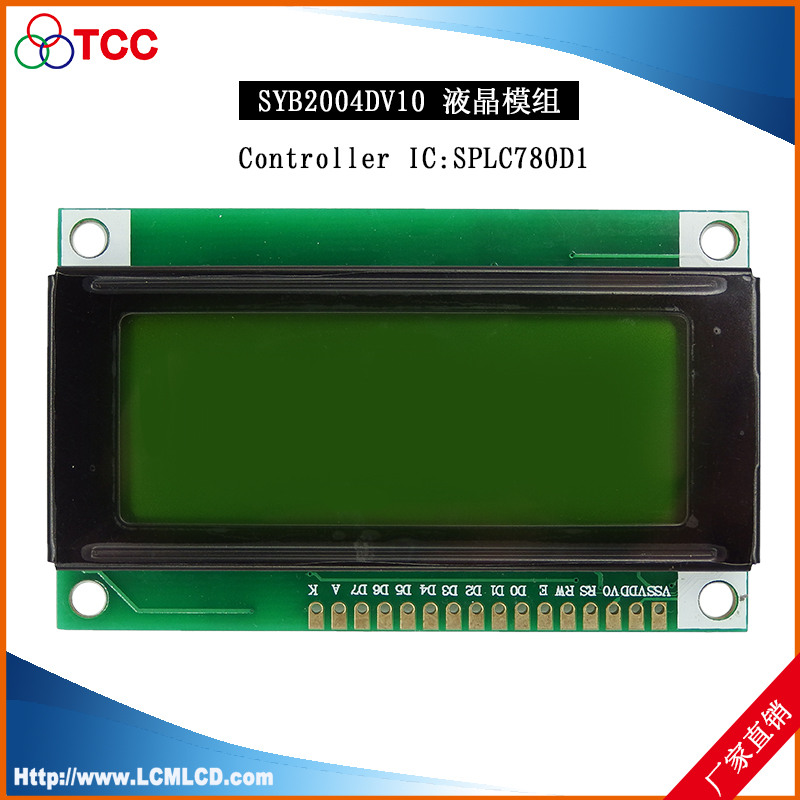

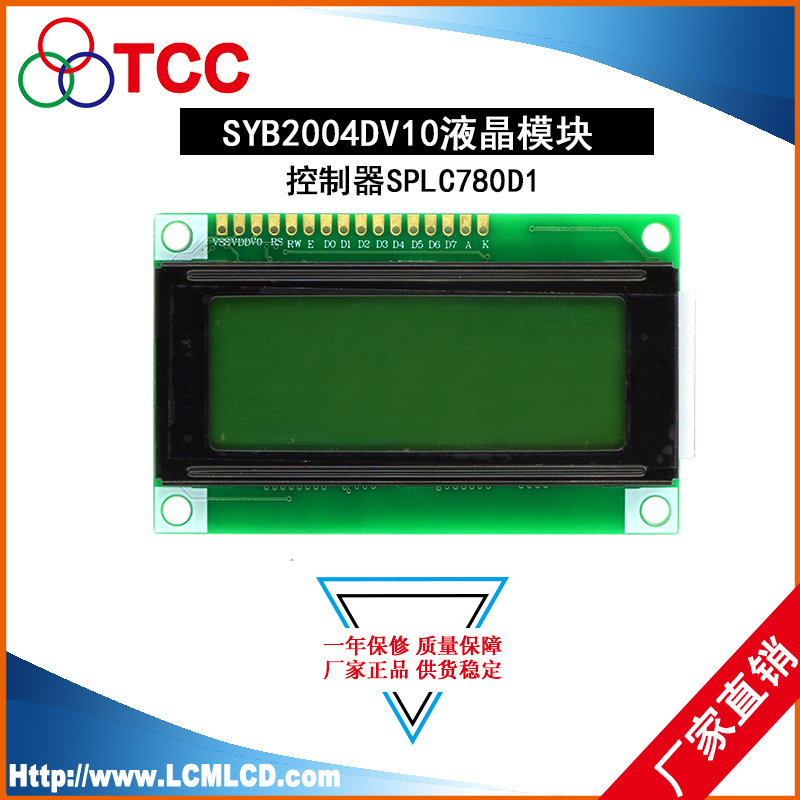

SYB2004DV10  20x4 77.0x47.0x12.0 60.0x22.0 0.451x0.42 VDD:5.0V Edge,YG SPLC780D1 图片

彩色TFT模块

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片
TM084SDHG01V10  800(RGB)×600 203*142.5*5.7 170.4*127.8 ** 5V LED NT52002+NT51008B*2 图片
TM080SDH01  800(RGB)*600 183*141*5.6 162.0*121.5 202.5(H)*202.5 (V) 5V LED a-Si 图片
7寸彩屏800480  800x480 164.9*100*3.5 156.60*88.40 3.3 led ILI6128+ILI5960 图片
AT070TN92  800(RGB)×480 164.9×100.0 154.08×85.92 ** 5V LED NO 图片
AT070TN83  800(RGB)×480 165.0×104.0 152.40×91.44 ** 5V LED NO 图片
SYC800480B070V20  800480 185.0×106.0×12.0 154.08×85.92 0.066*0.198 5V LED SSD1963 图片
SYC80048002050  800x480 120.7*75.8*3.10 108.0*64.8 0.135×0.135 5Vor3.3V LED OTD9960&OTA7001 图片
4.3-TFT  480272 105.5*67.2*3.0 95.04*53.856 0.198*0.198 5Vor3.3V LED OTM5180A 图片
3.5-TFT  320(RGB) X 240 76.9 x 63.9 x 3.15 70.08 x 52.56 0.219 x 0.219 3.3V LED NV3035C 图片

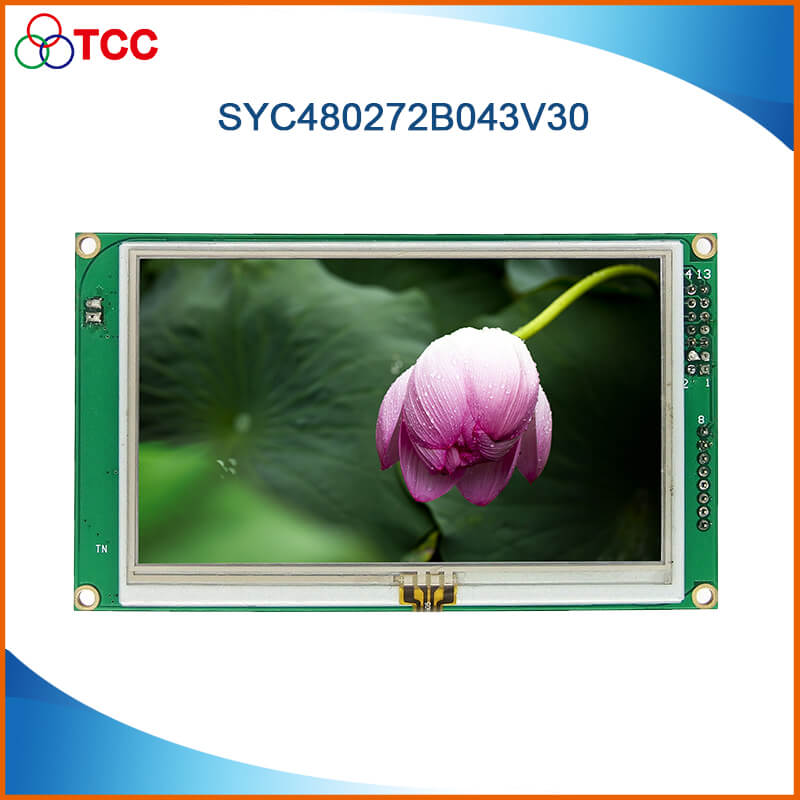

SYC480272B043V30  480*272 123.5*72.2*8.2 98.7*57.5 3.3V LED 图片
SYC080SDH01  800*600 183.0*141.0*5.6 164.8 *124.3 0.0675×0.2025 3.3/12.5/22.0/-7.0V LED / 图片

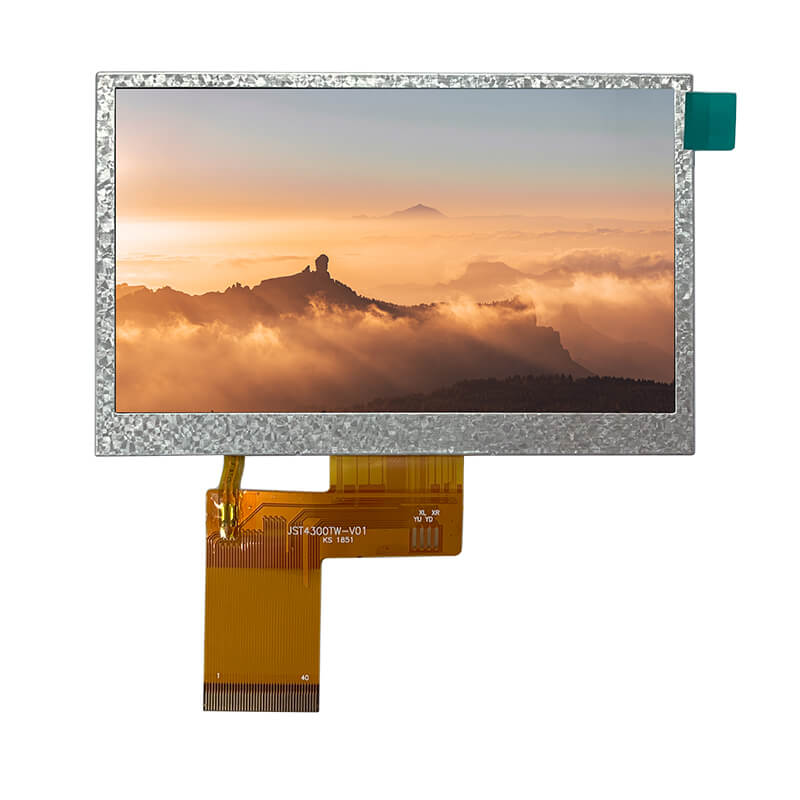

SYC4300J-05  480(RGB)x272 105.40x67.10x2.9 97.92x56.7 / 3.3v 7chips white LEDS ST7282E 图片
SYC4300J-03  480(RGB)x272 105.40x67.10x2.9 97.92x56.7 / 3.3v 7chips white LEDS ST7282E 图片
SYC800480B070  800*480 185.0*106.0*10.5 157.0*89.0 0.3*0.3 3.3V/5V LED RA8875 图片

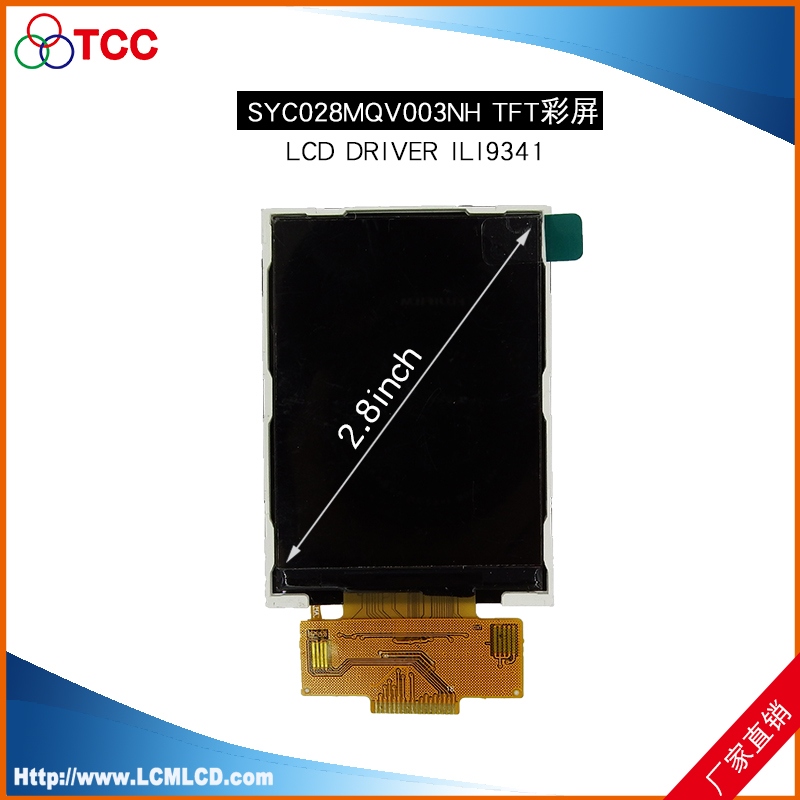

SYC028MQV003NH  240*320 50mm*69.2mm*3.6mm 43.2mm*57.6mm 3V ILI9341 图片

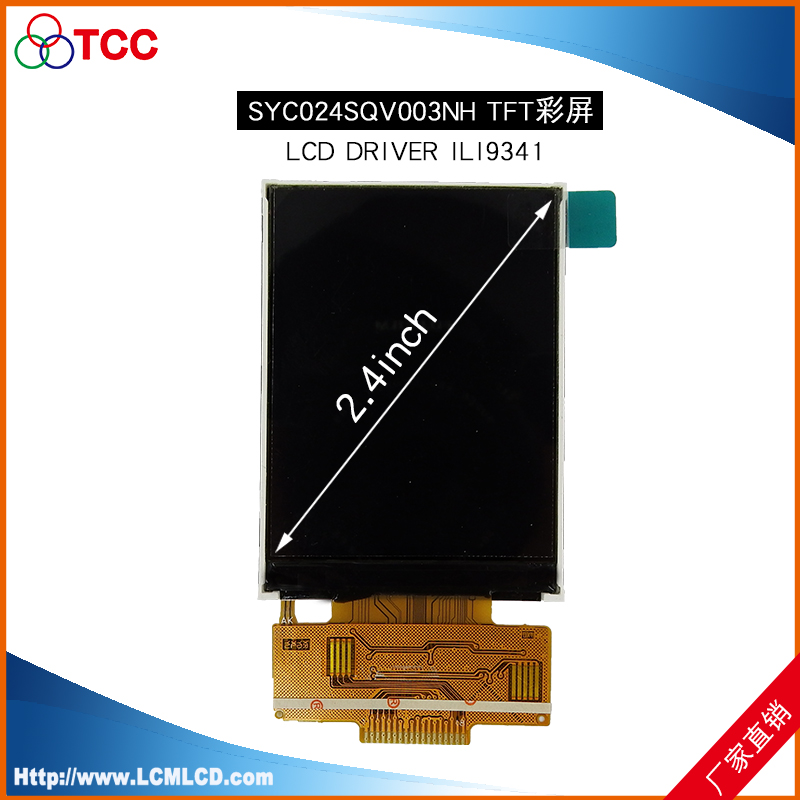

SYC024SQV003NH  240*320 42.72mm*60.26mm*3.45mm 36.72mm*48.96mm 3V ILI9341 图片

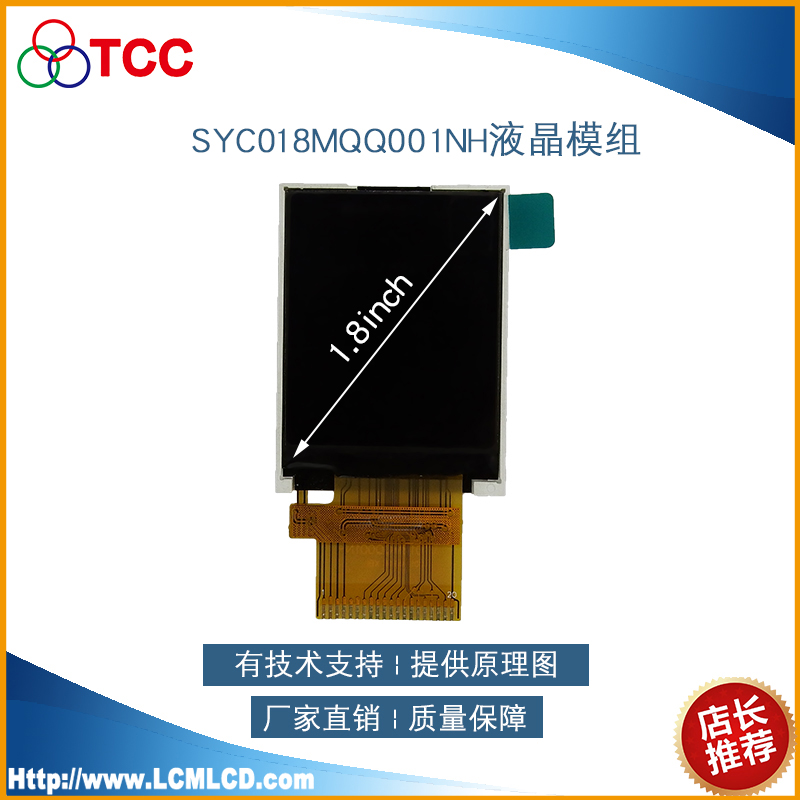

SYC018MQQ001NH  128*160 45.82*34*2.6 41.42*31.8 3V ILI9163C 图片
SYC177PQQ003SH  128*160 46*34*2.6 41.42*31.8 3V ST7735R 图片

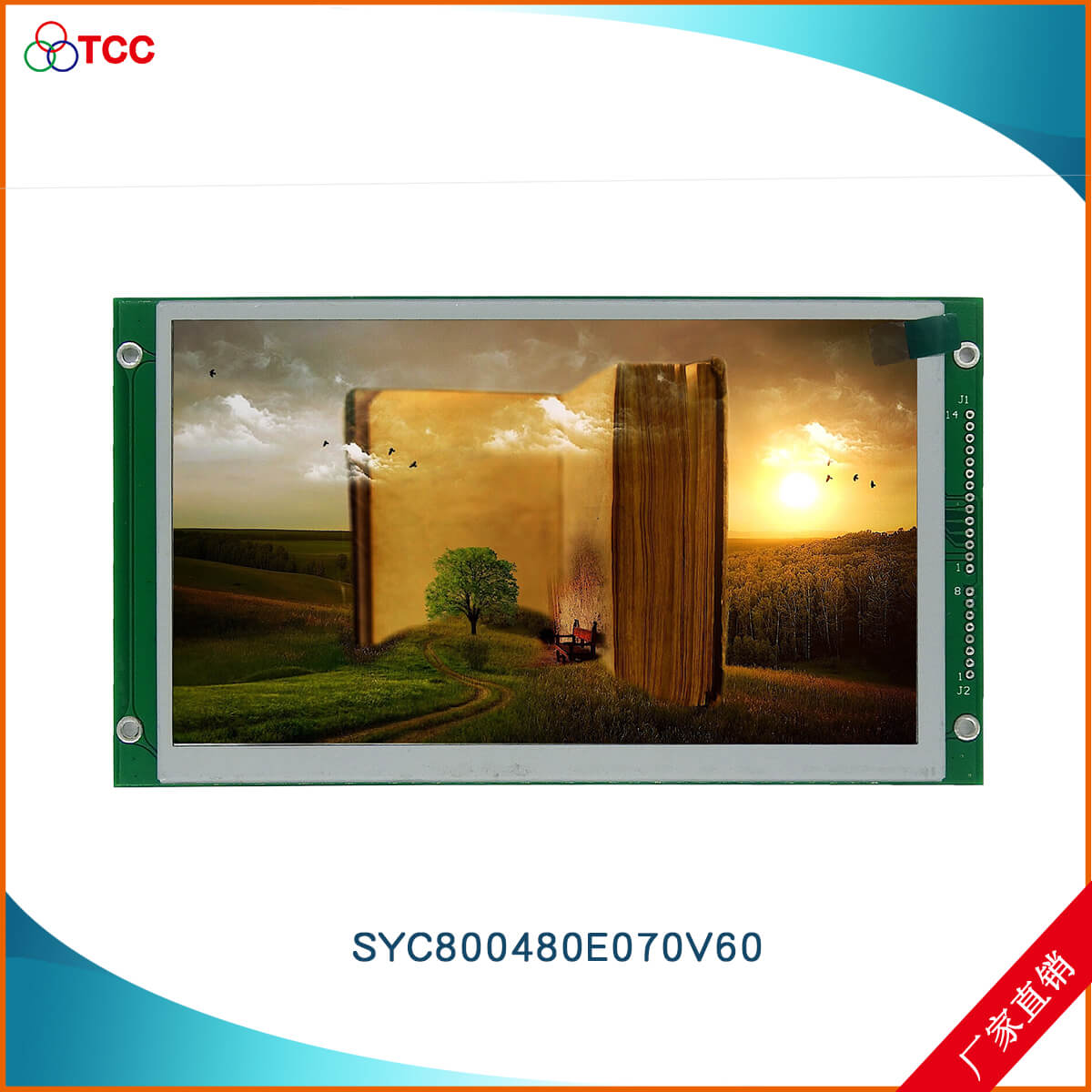

SYC800480E070V60  800*480 187.50*104.90*12.80mm 156.70*89.11mm \ VDD:3.3V VBL:3.3v/ IBL:130mA 350cd/㎡ TC76680 图片

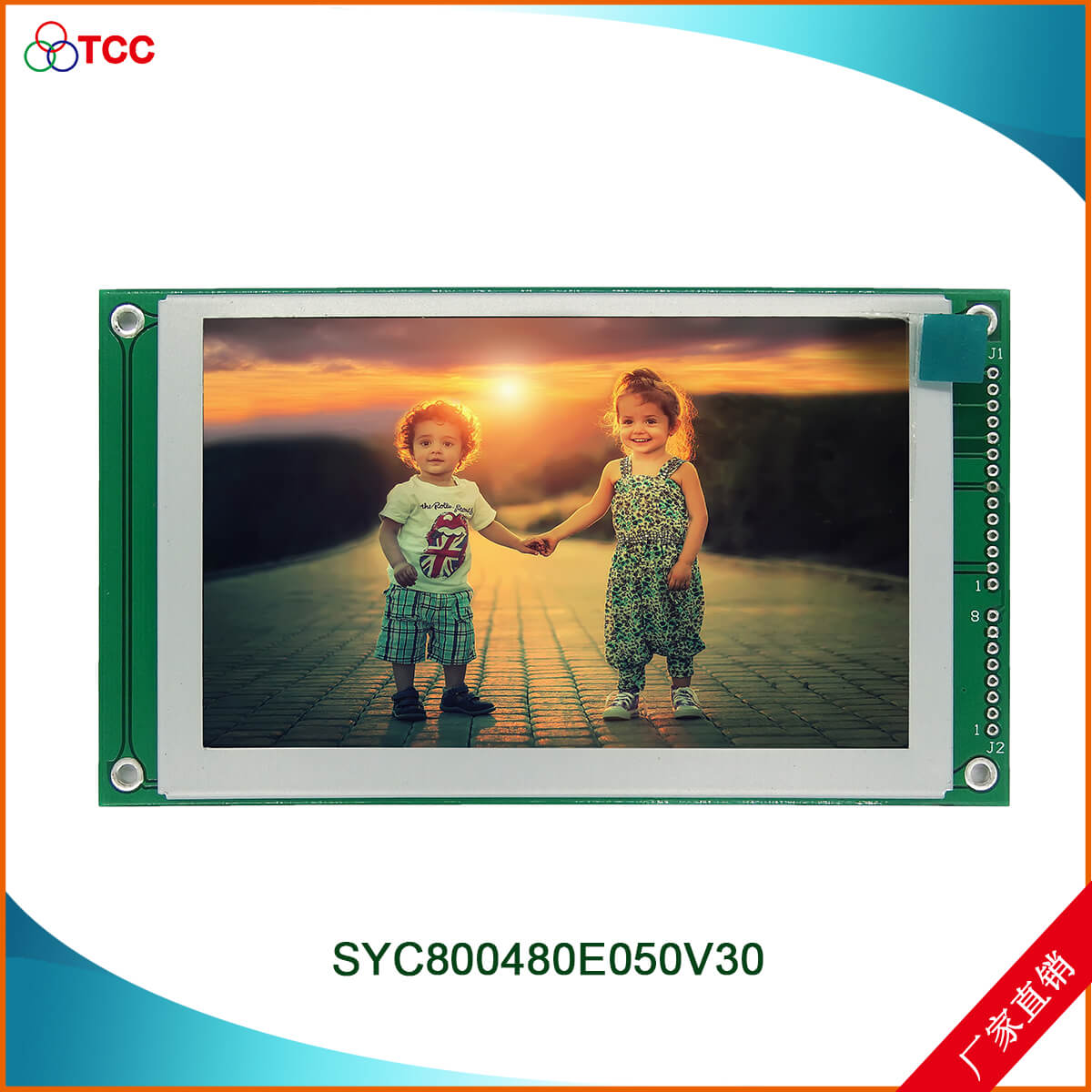

SYC800480E050V30  800*480 143.51*80.91*7.60mm 108.74*65.74mm \ VDD:3.3V VBL:3.3v/ IBL:130mA 500cd/㎡ TC76680 图片

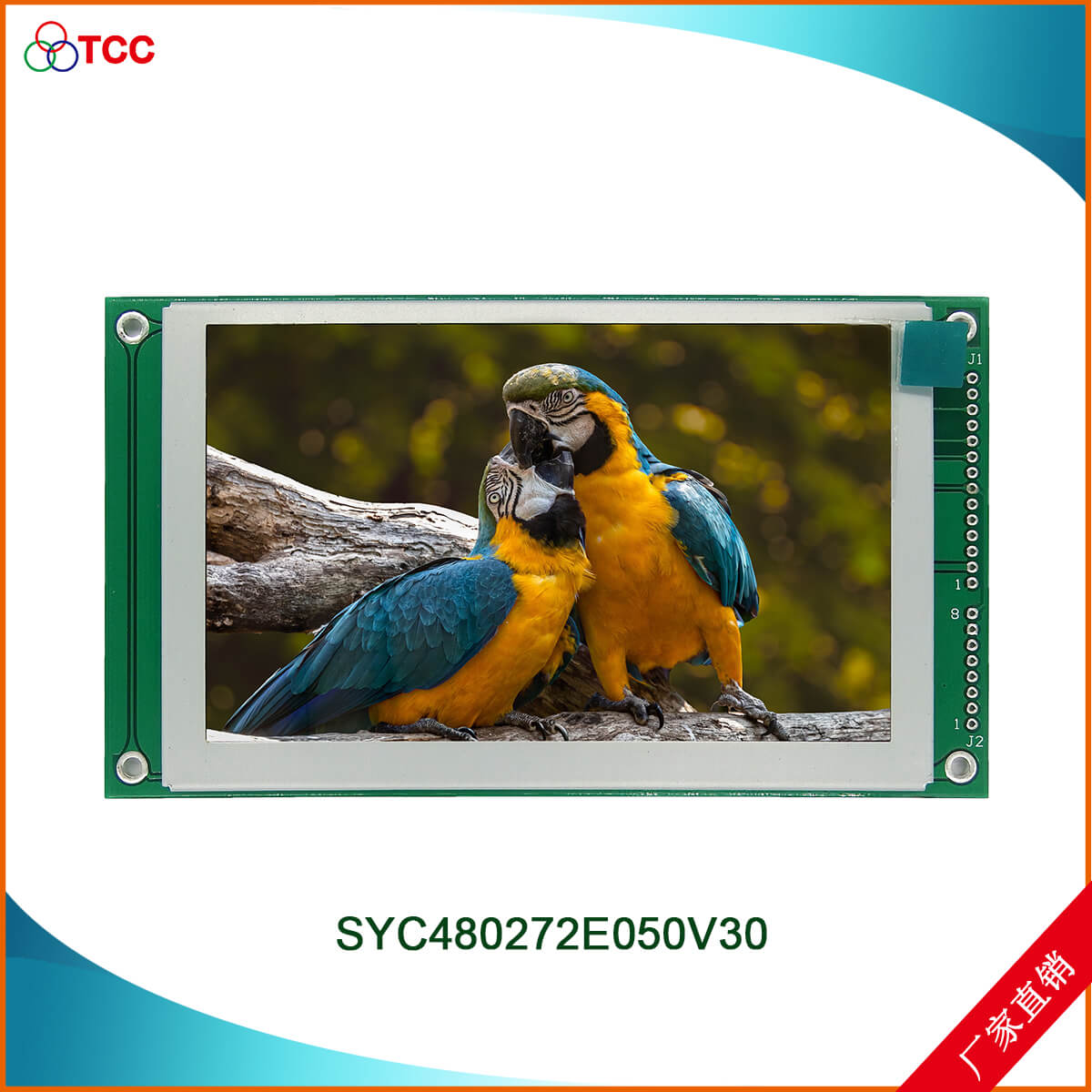

SYC480272E050V30  480*272 143.51*80.91*7.60mm 108.74*65.74mm \ VDD:3.3V VBL:3.3v/ IBL:130mA 300cd/㎡ TC76680 图片

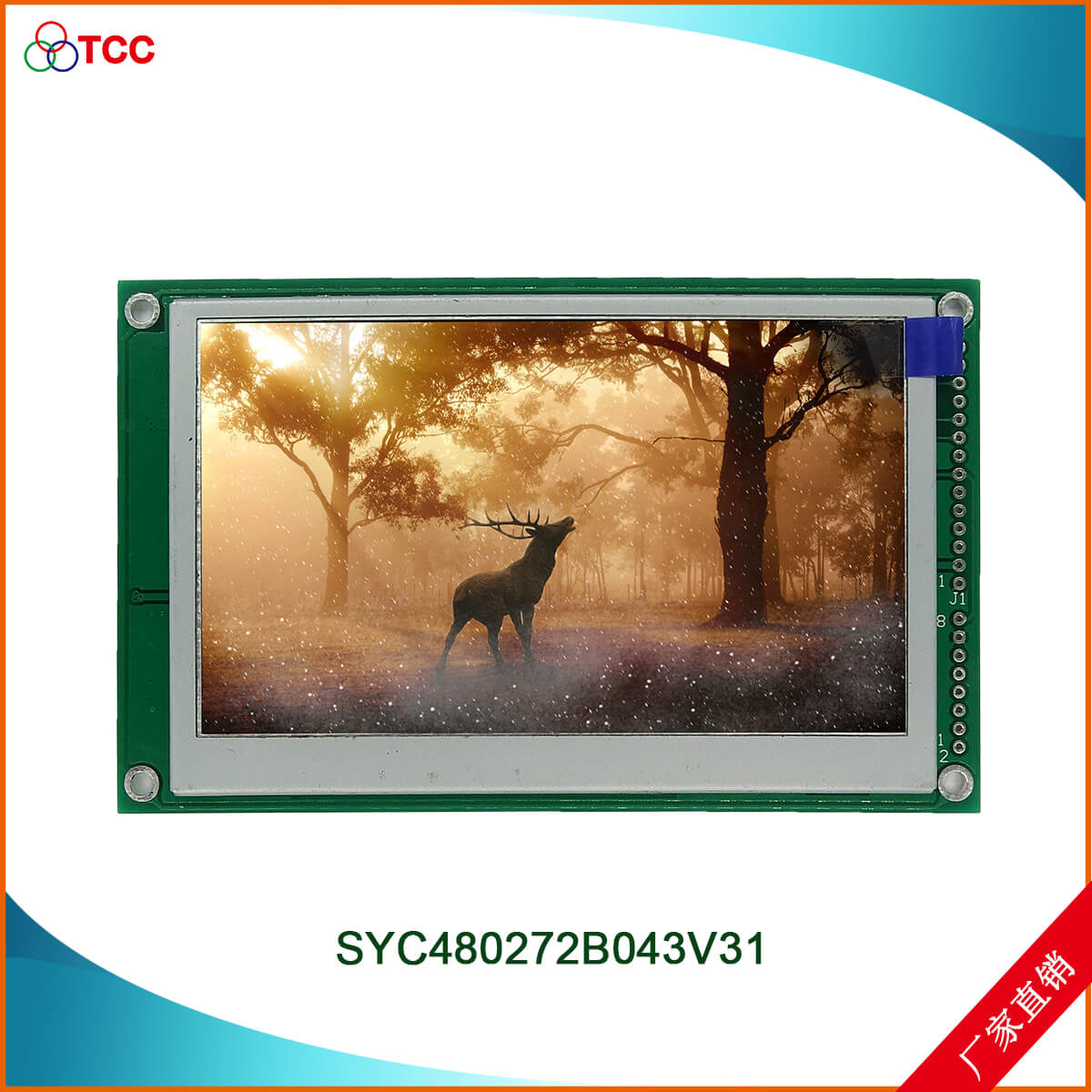

SYC480272B043V31  480*272 122.02*74.68*7.10mm 98.70*57.50mm \ VDD:3.3V VBL:3.3v/ IBL:130mA 500cd/㎡ TC76680 图片

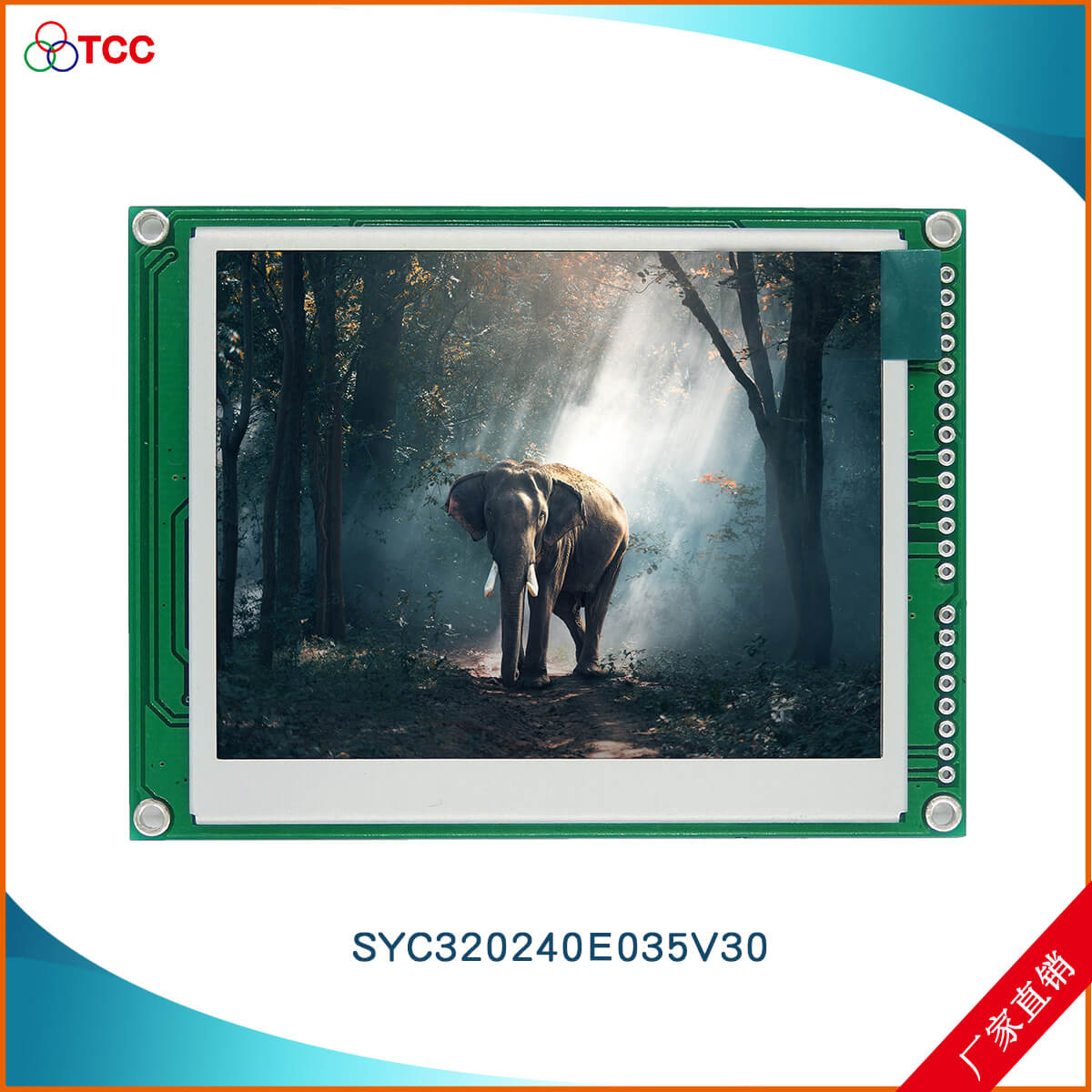

SYC320240E035V30  320*240 92.98*70.17*7.30mm 73.04*55.30mm VDD:3.3V VBL:3.3v/ IBL:130mA TC76680 图片

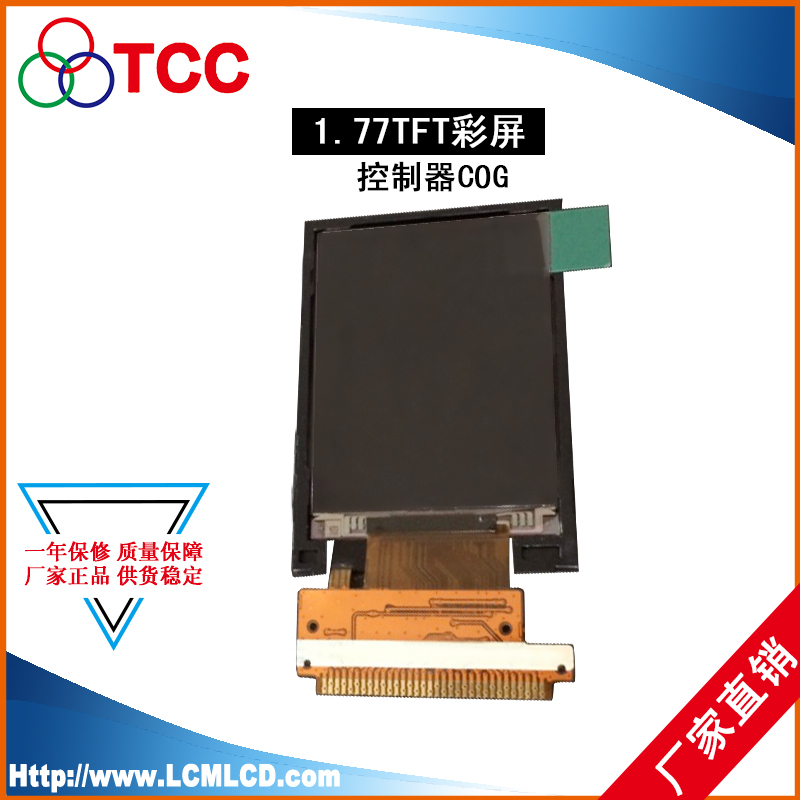

1.77TFT彩屏  128(rgb)*160 34.7*47*2.65 28.03*35.04 0.219*0.219 LED cog 图片

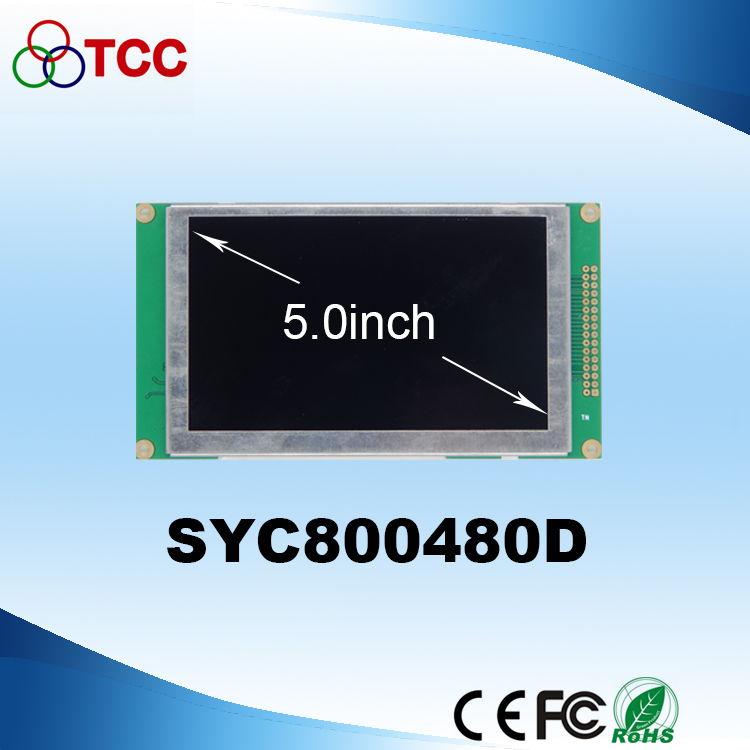

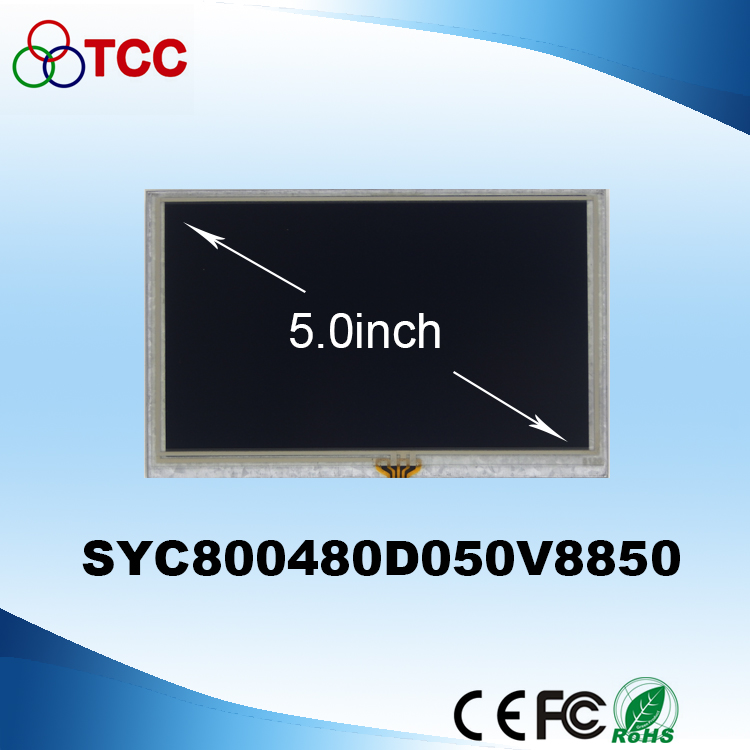

SYC800480D050V8850  800*480mm 120.7*75.9*7.0mm 110.6*67.6mm 0.198*0.198mm 5vor3.3v LED RA8875 图片

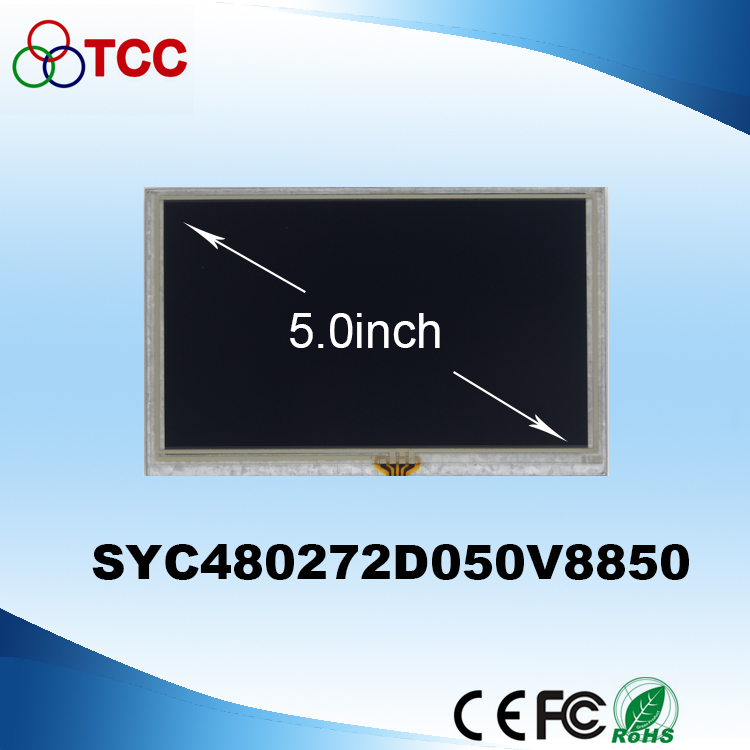

SYC480272D050V8850  480*272mm 120.7*75.9*7.0mm 110.6*67.6mm 0.198*0.198mm 5Vor3.3V LED RA8875 图片
SYC800480B070V1970  800*480mm 164.9*100*8.3mm 156.6*89.25mm 5v或3v LED SSD1963 图片
SYC800480D050V1950  800*480mm 120.7*75.9*5.5mm 110.6*67.6mm 0.198*0.198mm 5vor3.3v LED SSD1963 图片
SYC480272B043V1943  480*272 105.5*67.2*5.5mm 98.7*57.5mm 0.198*0.198mm 5vor3.3v LED SSD1963 图片

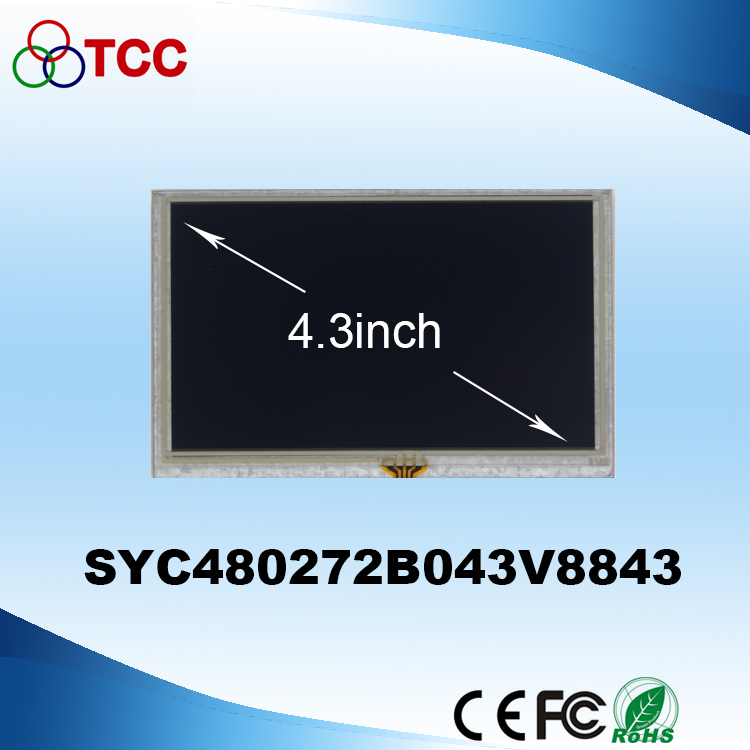

SYC480272B043V8843  480*272mm 105.5*67.2*5.5mm 98.7*57.5mm 0.198*0.198mm 5vor3.3v LED RA8875 图片
SYC800480OD050V10  800*480mm 142*78.79*7.6mm 108.74*65.74mm 5Vor3.3V LED RA8875 图片

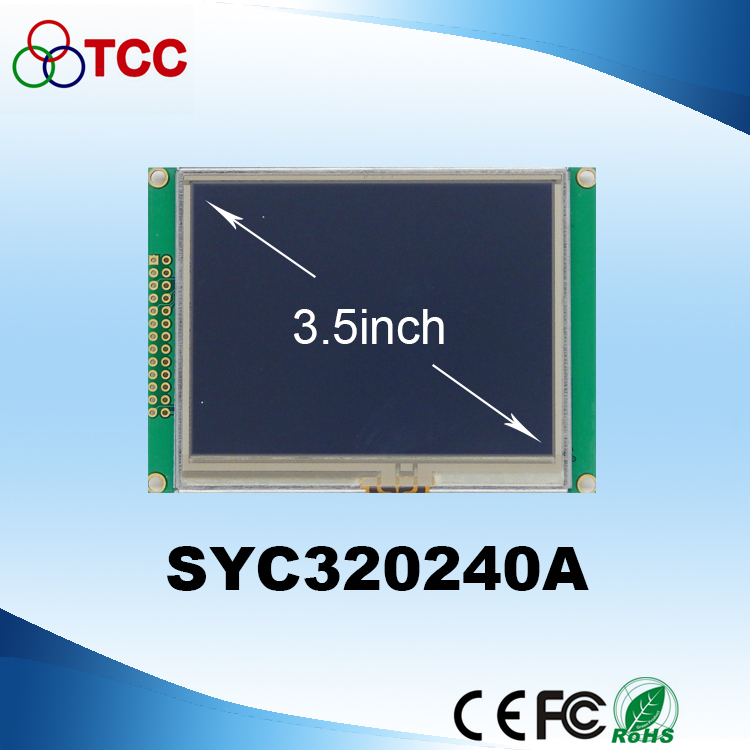

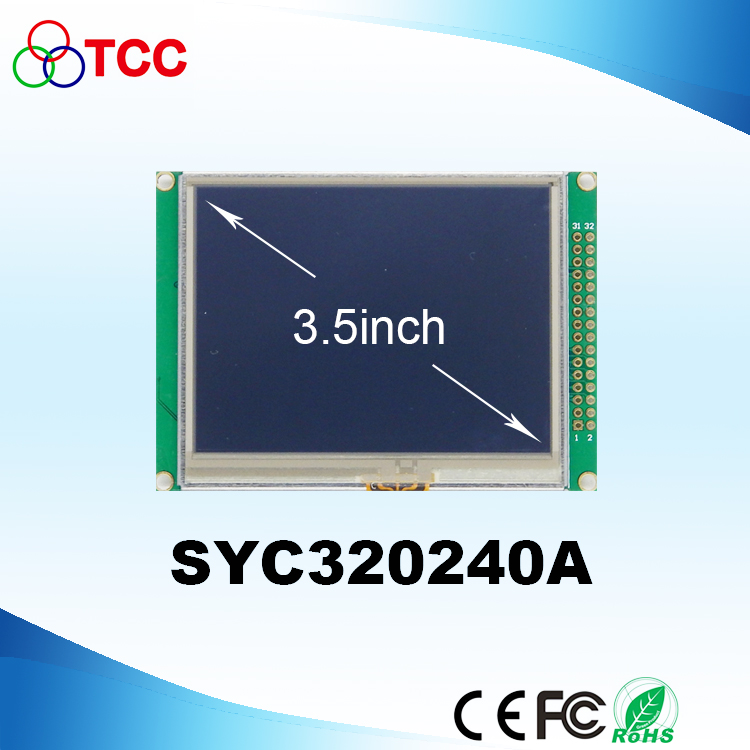

SYC320240A035V21  320*240mm 89.75*64.99*7.3mm 73.04*53.0mm 5Vor3.3V LED RA8875 图片
SYC480272D050V1950  480*272mm 120.7*75.9*5.5mm 110.6*67.6mm 0.198*0.198mm 5vor3.3v LED SSD1963 图片

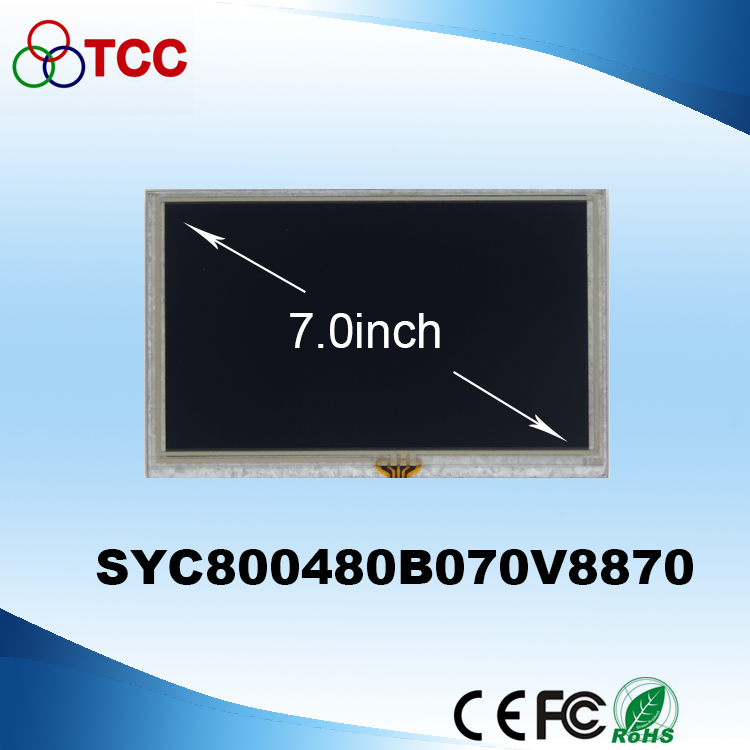

SYC800480B070V8870  800*480mm 164.9*100*10mm 156.6*89.25mm 5Vor3.3V LED RA8875 图片
SYC320240A035V11  320*240mm 89.8*65.0*7.3mm 73.0*55.3mm 5Vor3.3V LED SSD1963 图片

客户定制模块

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片
SYD段码液晶模块定制  段码液晶模块定制 段码LCD 笔段式LCD VA TN HTN STN 5Vor3.3V LED 图片

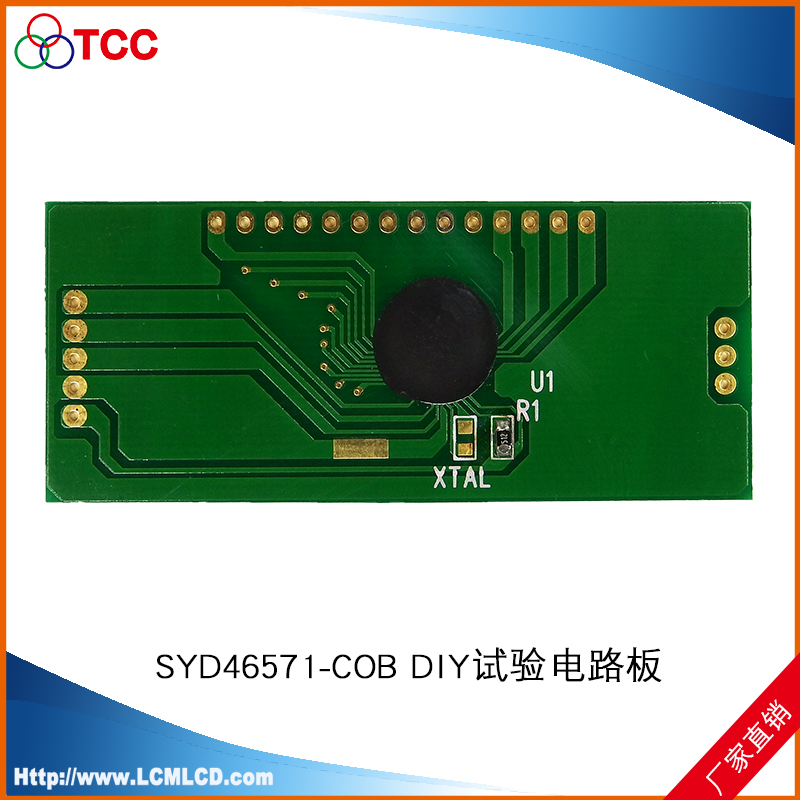

SYD46571  465*71 63.16*27*1 3.3V HT1621 图片

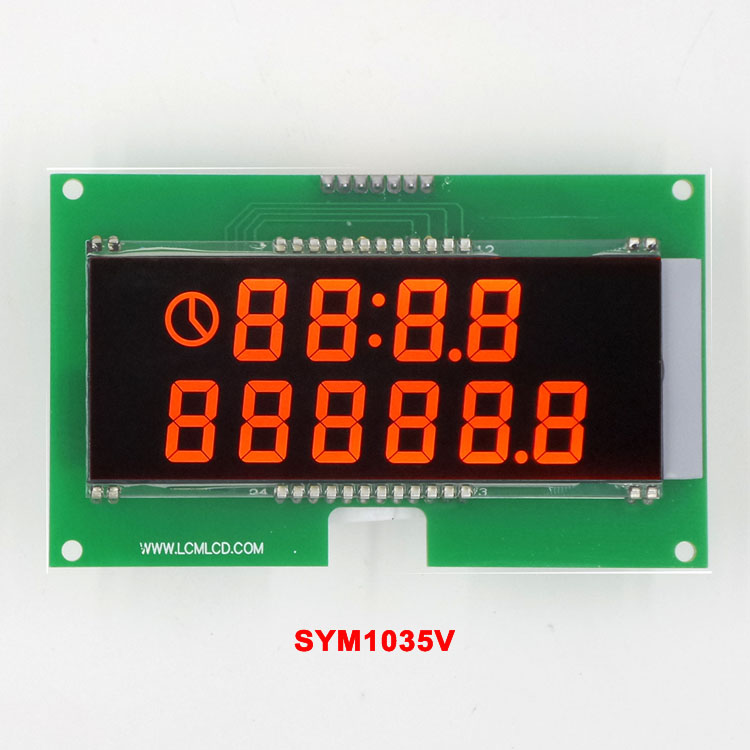

SYM1035V1V10  段码 100*60*10 85*32 ** 5V LED HT1621 图片

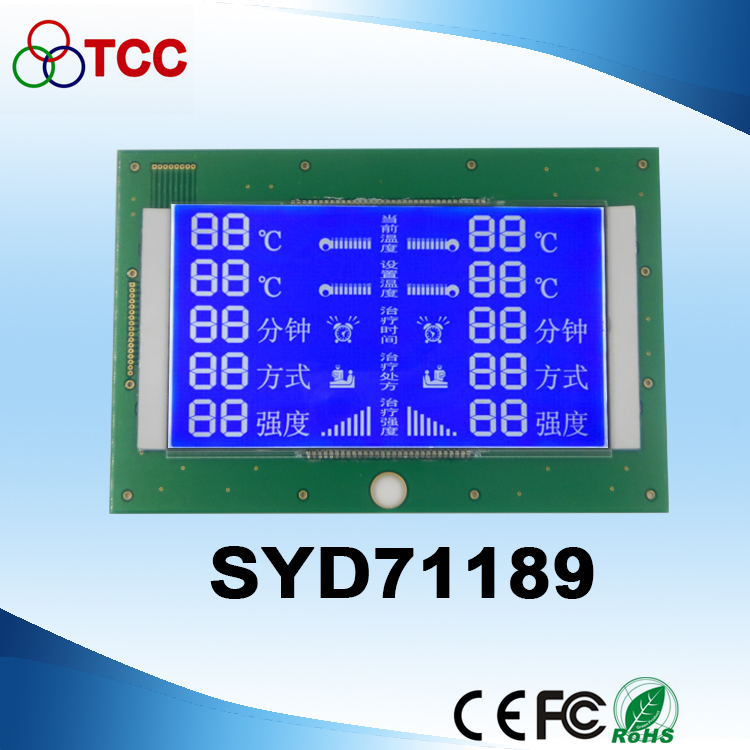

SYD71189  段码 248*167*7.2 198*110 ** 5V LED ** 图片

OLED

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

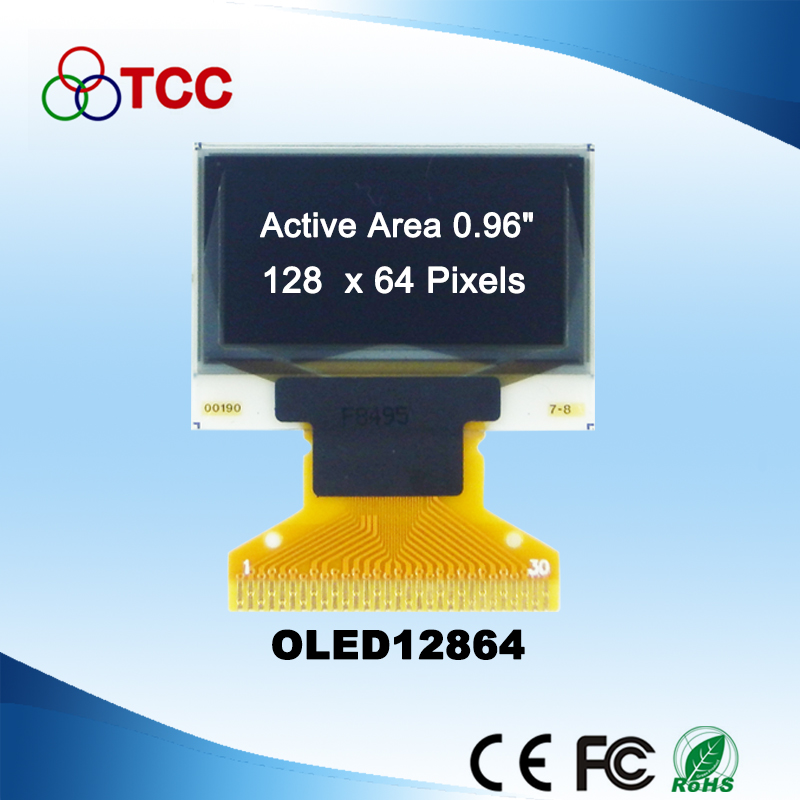

SYO128646001   128x64 26.70×19.26×1.45 21.744×10.864 0.154×0.154 3.0V NO SSD1306 图片
SYO128640242001  128x64 60.5x37.0x2.0 57.0x29.4 0.40x0.40 Passive Matrix SSD1309 图片

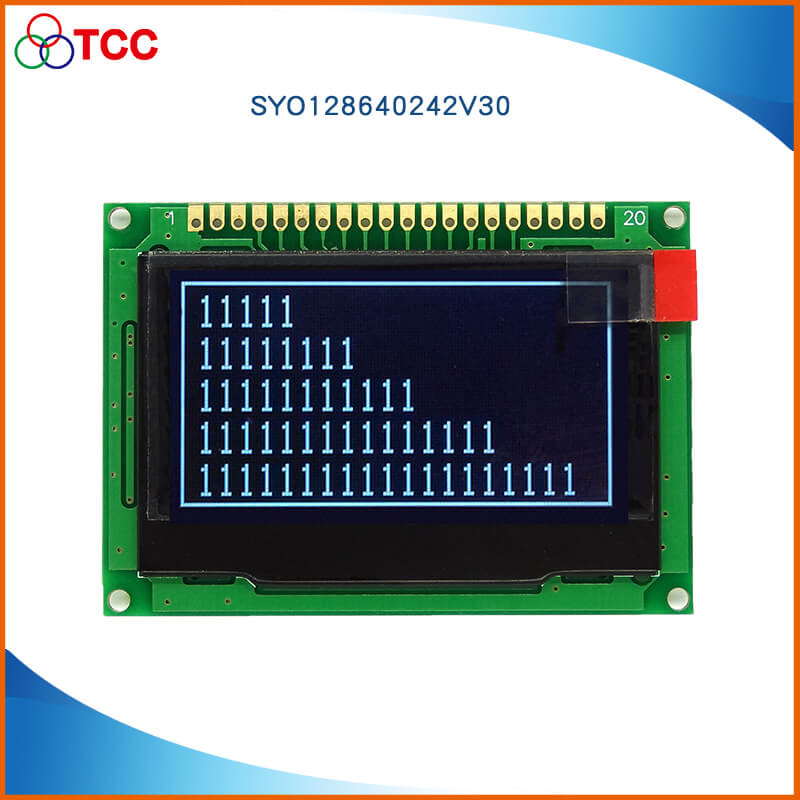

SYO128640242V30  128x64 70.5x49.6x5.9 57.0x29.5 0.39x0.39 SSD1309 图片

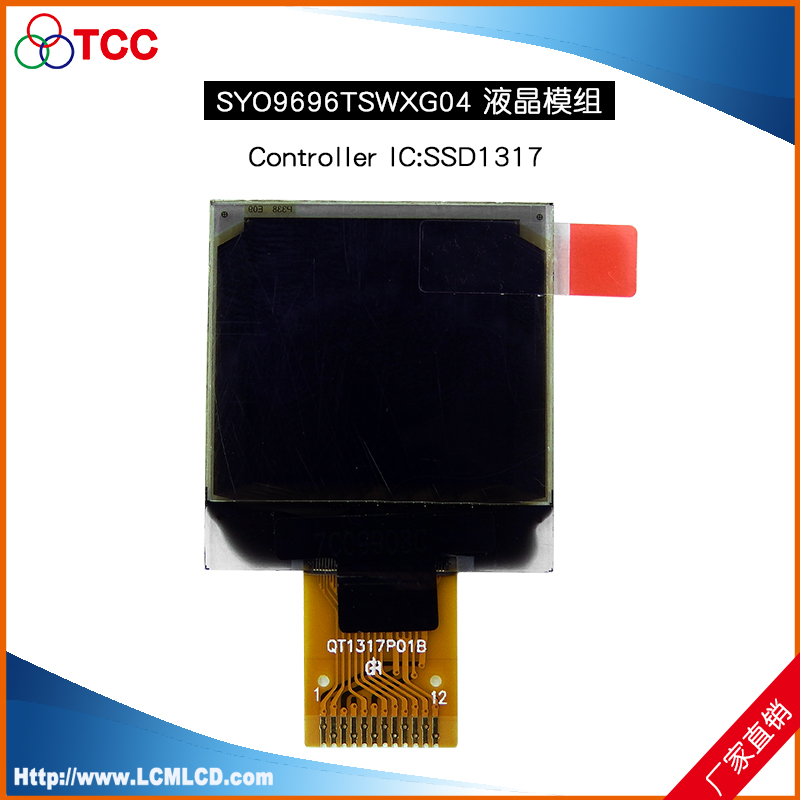

SYO9696TSWXG04  96x96 24.0x25.7x1.2 19.2x19.2 0.16x0.16 图片

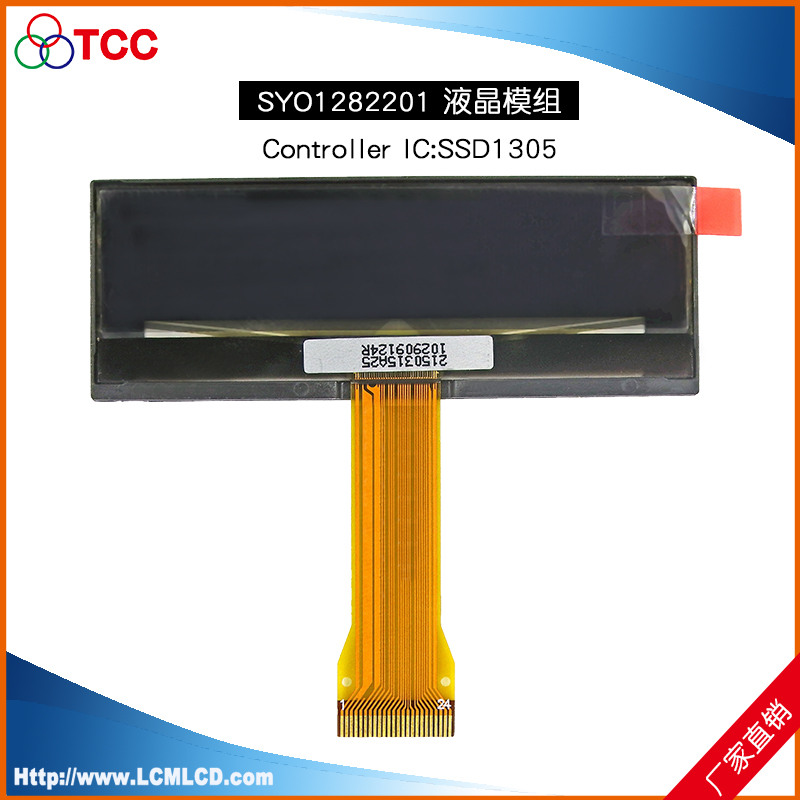

SYO1282201  128x22 64.8x23.5x2.1 60.8x13.8 0.43x0.51 Oled(Yellow) SSD1305 图片

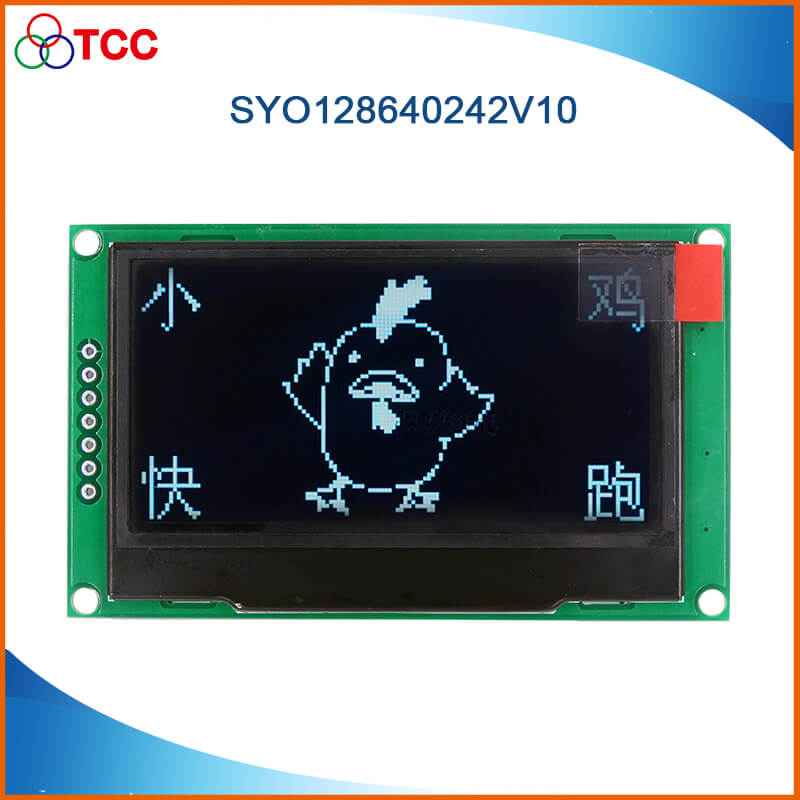

SYO128640242V10  128*64 72.0*43.0*6.0 57.0x29.5 0.4*0.4 _ OLED White SSD1309 图片
SYO12864B03-3C135WN2-WCE  128*64 26.7*19.26 23.74*12.864 0.154*0.154 3.3V SSD1306 图片
SYO12864A02-3C58WN2-WCE  128*64 24.74*16.9*1.42 22.74*11.86 0.15*0.15 3.3V SSD1315Z 图片

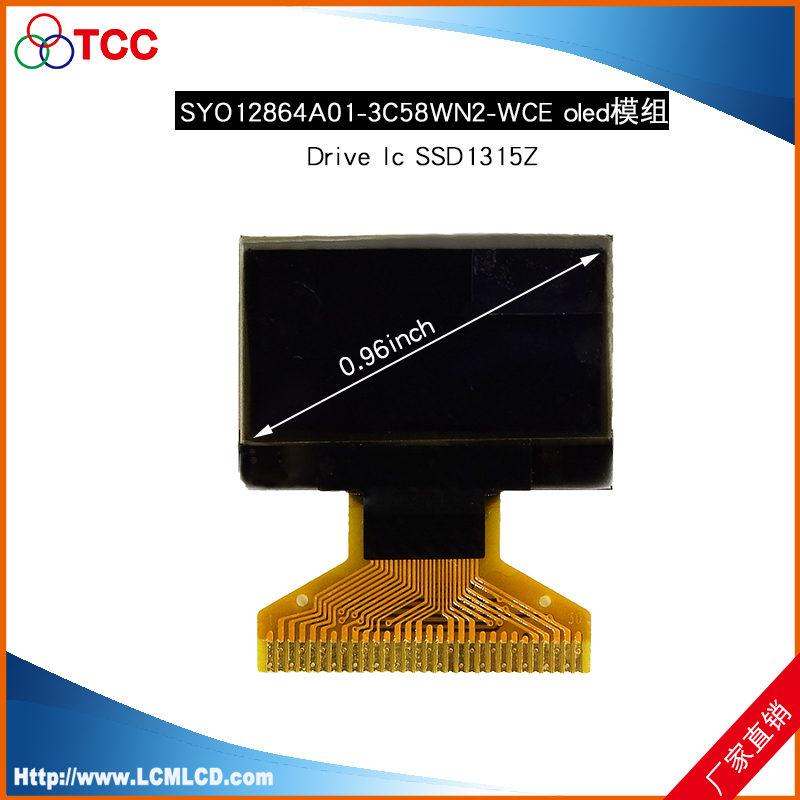

SYO12864A01-3C58WN2-WCE  128*64 24.74*16.9*1.42 22.74*11.86 0.15*0.15 3.3V SSD1315Z 图片

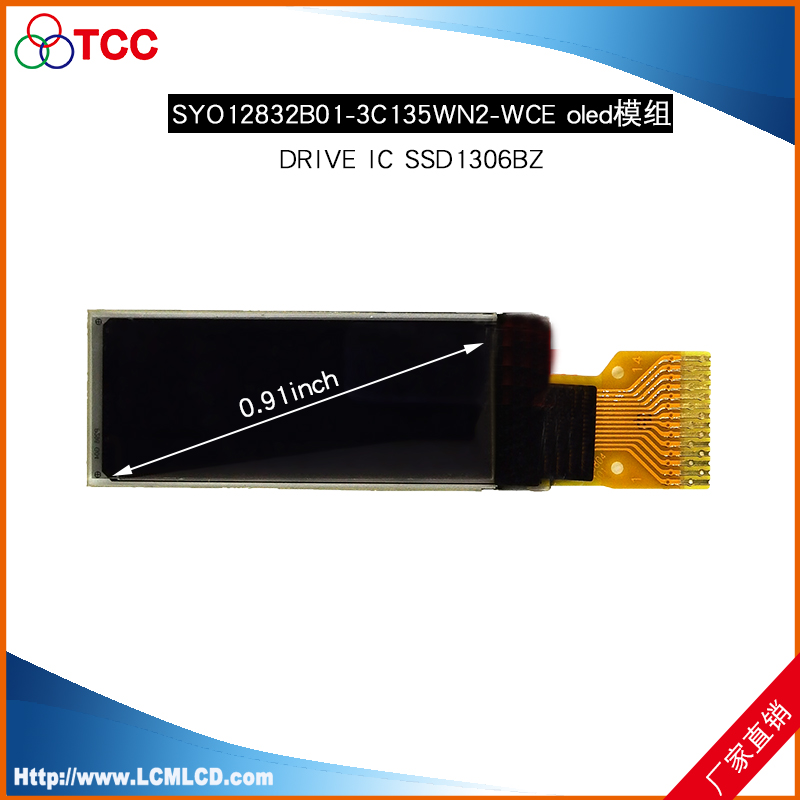

SYO12832B01-3C135WN2-WCE  128*32 30*11.5*1.22 24.384*7.584 0.159*0.159 3.3V SSD1306BZ 图片
SYO12832A00-3C61WN2-WCE  128*32 29*8.7*1.22 22.856*6.82 0.147*0.147 3.3V SSD1316Z 图片

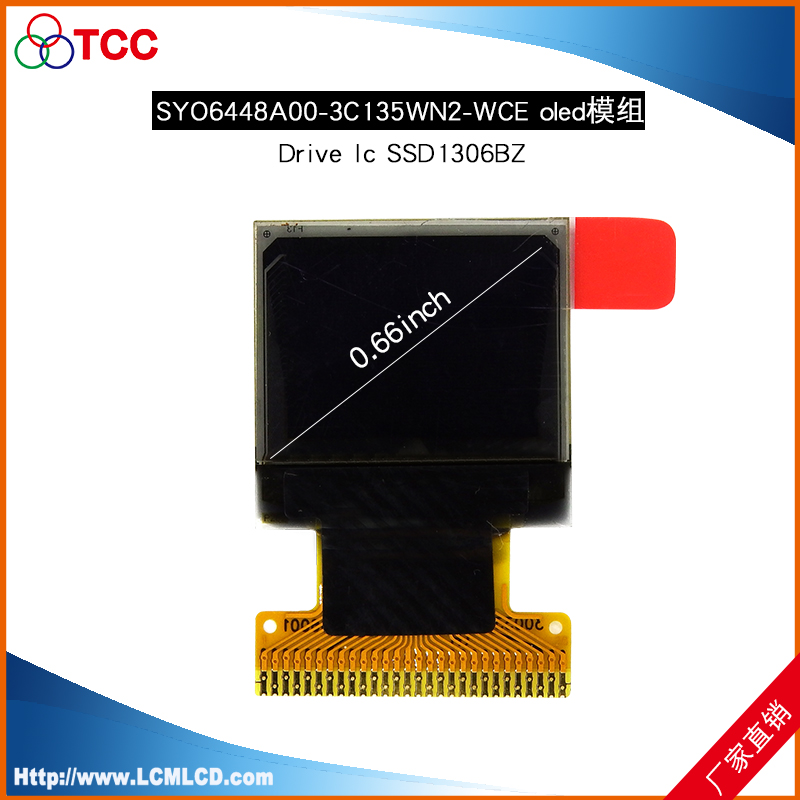

SYO6448A00-3C135WN2-WCE  64*48 18.46*18.1*1.21 15.42*12.06 0.19*0.19 3.3V SSD1306BZ 图片

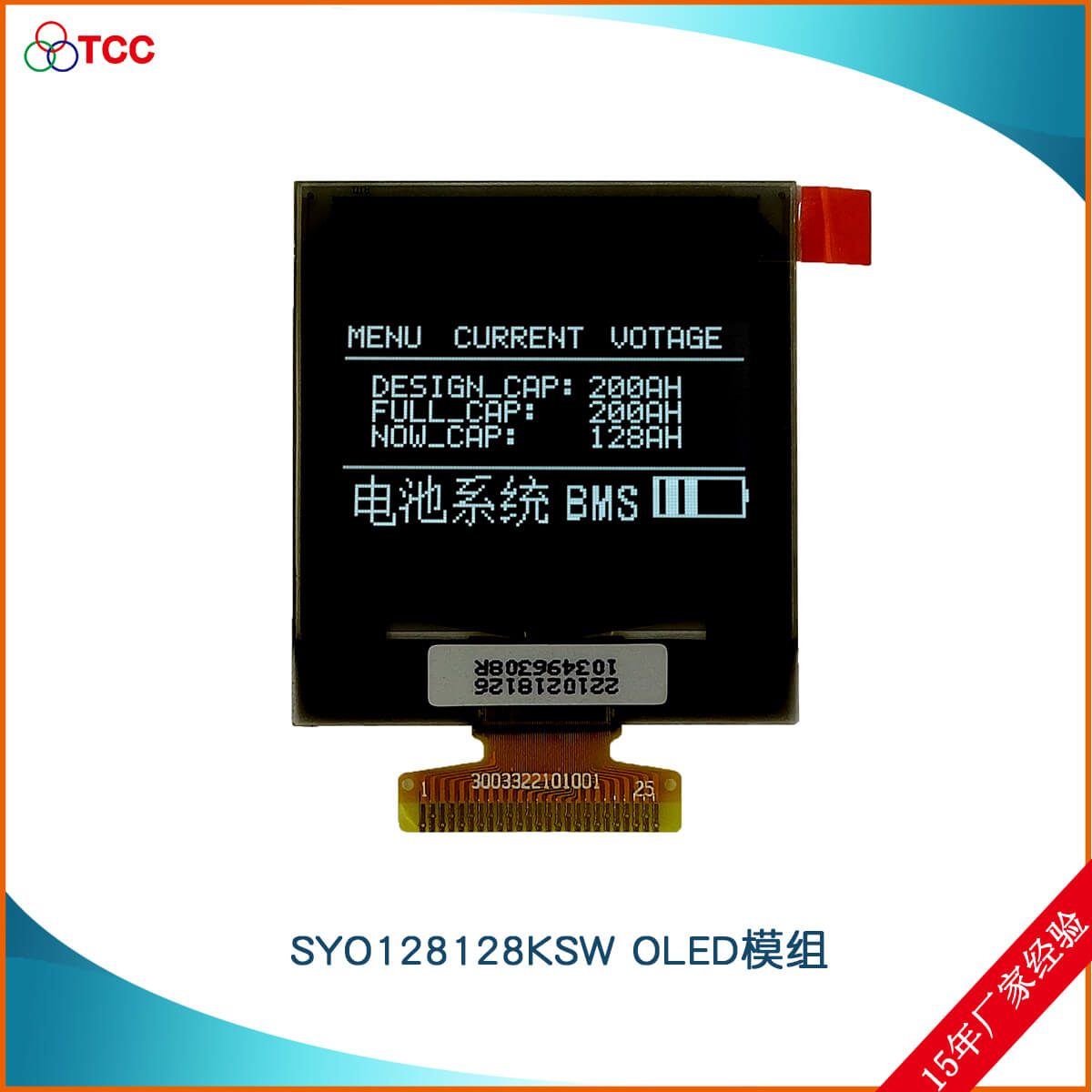

SYO128128KSWHG01015A  128*128 33.80*36.50*1.41mm 28.86*28.86mm 0.19*0.19mm \ NO SSD1327 图片

COG液晶模块

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片

其他相关产品

型号 字符X行数 外形尺寸
WxHxT(mm)
视域尺寸
WxH(mm)
点尺寸
WxH(mm)
模块电压 背光类型 控制器 产品图片


网站首页   |    关于三元晶   |    产品中心   |    产品图片   |    新闻中心   |    技术支持   |    联系我们

电话:0755-29644105
传真:0755-29644104
地址:深圳市宝安区西乡勒竹角鸿竹雍啟科技园2栋6楼

友情链接: 三元晶淘宝店     三元晶阿里店     三元晶液晶专销店     液晶显示屏工厂店     三元晶中国制造网店     三元晶阿里巴巴国际站
深圳lcd     高路数液晶屏店     深圳Lcm     TFT彩屏     320240液晶屏     友链QQ:点击这里给我发消息

服务热线:
0755-29644105
©2014  版权所有:深圳市三元晶科技有限公司--优质工业类液晶模块专家    网站备案号:粤ICP备06100336号    邮局入口
